Contact for Pricing
Overview
- Two-gang rectangular floor box cover
- Constructed from durable brass for corrosion resistance
- Dimensions: 7.13 inches width x 8.25 inches length
- Ideal for industrial and commercial electrical installations
- Provides a professional and secure floor-level access solution
Specifications
Application | Suitable for any wiring application |
Color | Brass |
Knockouts | False |
Knockouts | 0 |
Material | Brass |
Special Features | Gasketed for a watertight seal |
Standard | UL E11461 |
Standard | UL E11461 / UL E11461 |
Type | Multi-Gang Rectangular Floor Boxes & Covers |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 4.040 L |
Package Weight (Metric) | 1.833 kg |
E971FBDIB-2
Single Gang Drop in Floor Box without Hole Saw, 11.8 Cubic Inches, 2.25 Inch Diameter, Depth 7.02 Inches, Cover Brass, Non-Metallic, with Pre-Wired Single Receptacle, Low Voltage Telephone/Cable Plate and 1-Blank Plate for Custom Installations
B121BFBB

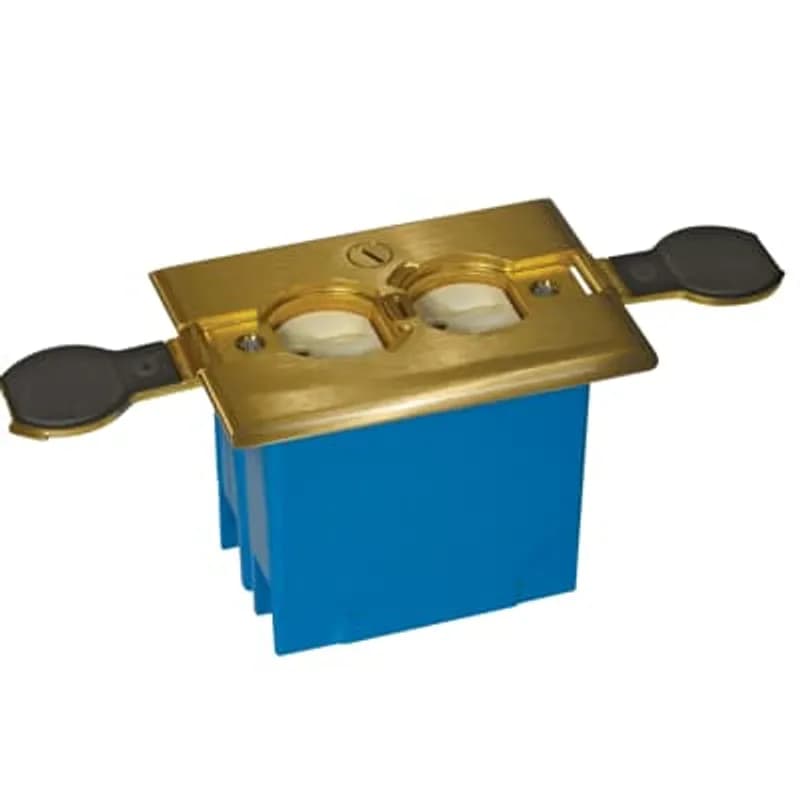

Single Gang Adjustable Residential Floor Box, 20 Cubic Inches, Cover Brass, Non-Metallic, Tamper Resistant Duplex Receptacle
P 64 3/4 2

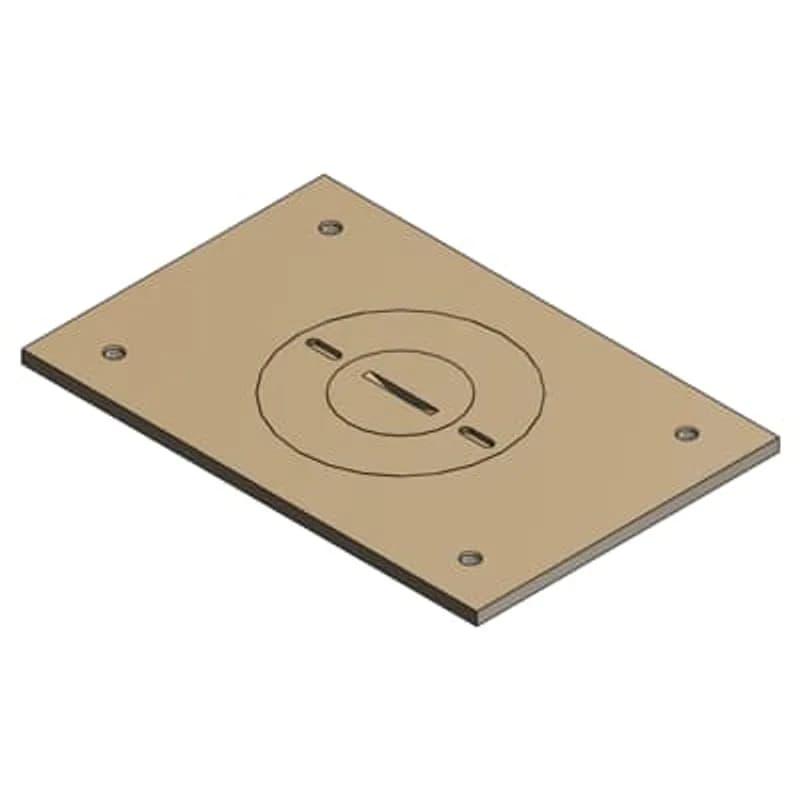

Cover Plate for Multi-Gang Floor Boxes for Power and Communications, Length 4-1/2 Inches, Width 3 Inches, 3/4 Inch and 2 Inch UN Plug, Brass
E97BR2D

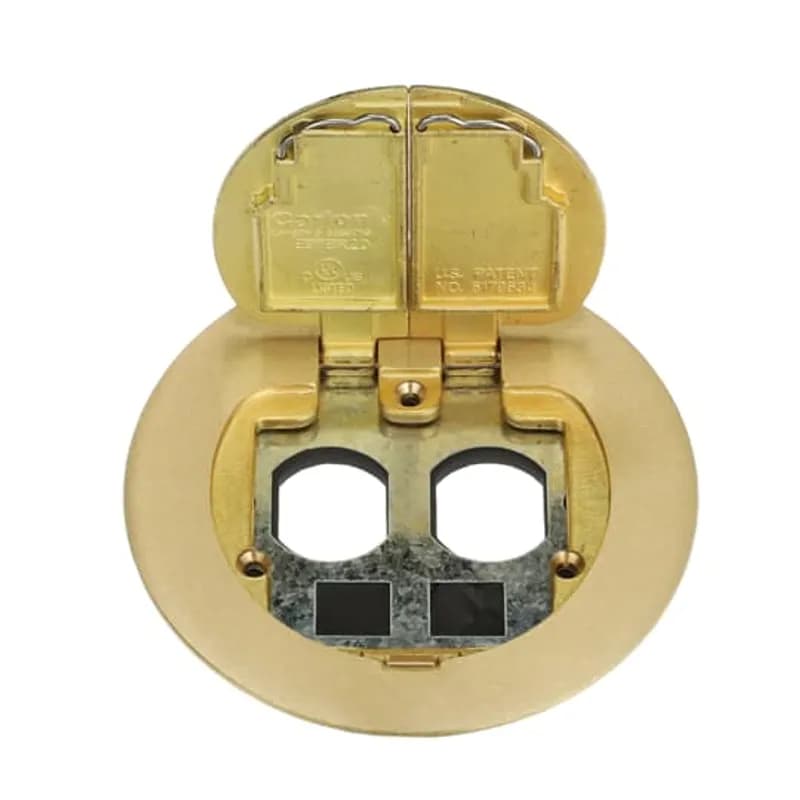

Two Door Cover for Dual Service Round Floor Box, Brass, For use with Duplex Devices and Two Data Ports, Divider Kit Included
68-HP-FFC-BRS
Furniture Feed Cover, 8 Inch Flange Diameter, 1 Inch and 1-1/2 Inch Threaded Plugs, Solid Brass with Brushed Finish, For Flush Service Round Floor Box, 140 Cubic Inches, Opening Diameter 5-31/32 Inches, Base Diameter 8-1/8 Inches, Depth 6 Inches, 1 Inch and 1-1/2 Inch Conduit Hubs, Non-Metallic, Minimum Concrete Depth Flush 4 Inches Furniture Feed 3-1/2 Inches
How to Install the Carlon E9762BR Floor Box
This guide provides step-by-step instructions for installing the Carlon E9762BR floor box, including mounting, wiring, and final setup.
Estimated time: 1h
Tools needed:
Screwdriver, Wire strippers, Handsaw, Multimeter
Supplies needed:
#8 x 3/4 screws, Duct tape, Terminal connectors, Grounding lug
- Prepare the installation site
Ensure the area is clear and level. Mark a line 3/16" below the desired final height of the brass cover's top surface.
- Cut the floor box to height
Using a handsaw, cut off the box at the marked height. Ensure that no more than 1.5" is removed from the top to maintain structural integrity.
- Mount the floor box
Secure the floor box in place, ensuring it is level and flush with the surrounding surface. Use duct tape to hold it in position if necessary.
- Install the yoke
Align the yoke in the floor box slots and move it to the desired level. Insert #8 x 3/4" pan head screws into the angled holes at the ends of the yoke and tighten.
- Connect electrical devices
Attach conductors to the electrical device (e.g., duplex or GFCI). Use the grounding lug and green ground screw provided with the yoke for proper grounding.
- Install the cover
Attach the cover to the floor box by inserting #8 x 1 1/8" pan head screws into the angled holes at the ends of the cover and tightening them securely.
- Calibrate and test
After installation, turn on the power supply and use a multimeter to verify that the electrical connections are functioning correctly.
