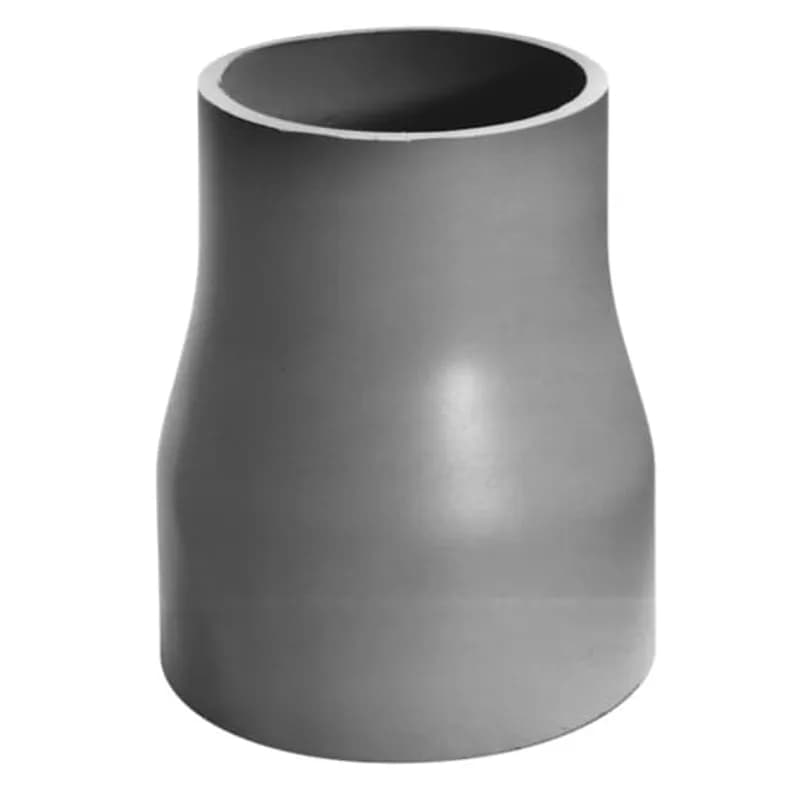

ABB - Installation Products E952PN - Fabricated Reducer, Male x Male, Size 5 Inch x 4 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit
ABB - Installation Products

E952PN

UPC: 034481062936

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 12

Multiplier: 12

*Contact for lower quantities*

Overview

Enhance your electrical infrastructure with the ABB E952PN Fabricated Reducer, a robust fitting designed for seamless transitions between conduit sizes. Engineered by ABB Installation Products, this reducer (SKU: E952PN) is specifically crafted for industrial and commercial applications requiring reliable conduit connections. Its male x male configuration ensures a secure and direct coupling, facilitating efficient cable management and protection. The E952PN is constructed from high-quality PVC material, renowned for its exceptional durability and resistance to corrosion, chemicals, and environmental degradation. This makes it an ideal choice for demanding environments where longevity and performance are paramount. The gray color offers a professional aesthetic while aiding in identification and maintenance within complex electrical systems. Designed for use with both Schedule 40 and Schedule 80 conduit, this fabricated reducer provides versatility and ensures compatibility with a wide range of electrical installations. Each unit comes with a standard carton quantity of 12 and a standard weight of 27 lbs per hundred, reflecting its substantial build quality. Trust ABB Installation Products for superior materials and engineering that deliver dependable performance and long-term value in your critical projects. Its precise sizing of 5 inches transitioning to 4 inches makes it a vital component for specific conduit size adjustments, ensuring optimal system integrity and compliance with electrical codes. The fabricated nature of this reducer guarantees precise dimensions and a superior fit compared to molded alternatives, minimizing potential points of failure and simplifying installation processes. Whether for new construction or retrofitting existing systems, the ABB E952PN offers a reliable and efficient solution for your conduit reduction needs.
  • Durable PVC construction for long-lasting performance and resistance to corrosion and chemicals.
  • Male x Male configuration ensures secure and direct conduit connections.
  • Precisely sized at 5 Inch x 4 Inch for seamless transitions between conduit sizes.
  • Compatible with both Schedule 40 and Schedule 80 conduit systems.
  • Gray color provides a professional finish and aids in system identification.

Specifications

Application
For use with Schedule 40 and 80 Conduit
Color
Gray
Color
Gray;Grey
Material
PVC
Material Quality
Polyvinyl Chloride (PVC)
Type
Reducer Bushings & Plugs
Wall Thickness
0.251 in
Wall Thickness
6.3754 mm
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
2.000 L
Package Weight (Metric)
0.907 kg
