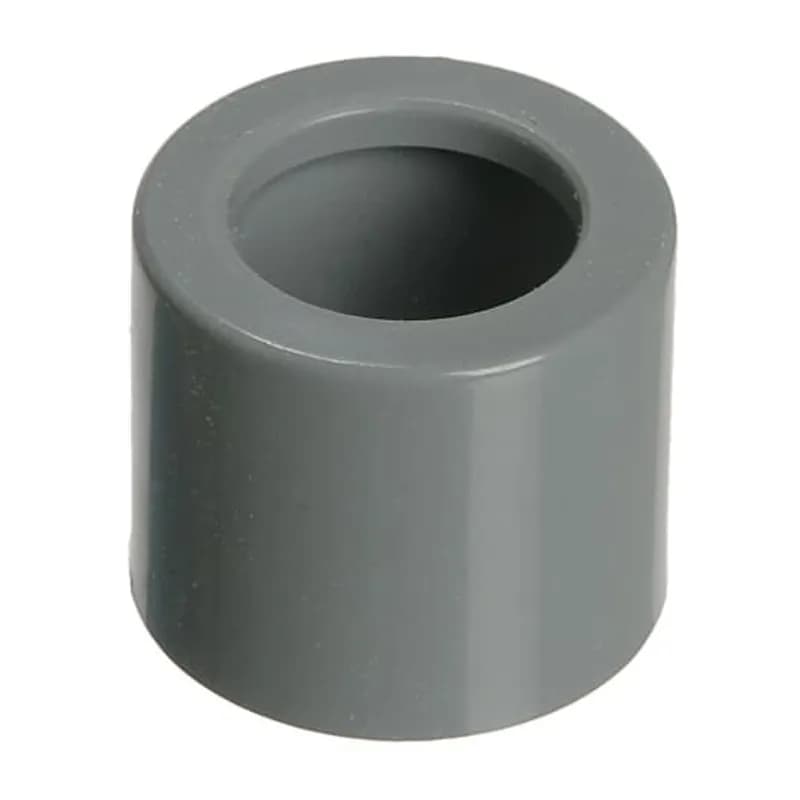

ABB - Installation Products E950FE - Reducer Bushing, Size 1 Inch x 3/4 Inch, Length 1-1/64 Inch, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit, Pack of 100
More images

ABB Installation Products E950FE Reducer Bushing, Size 1 Inch x 3/4 Inch, Length 1-1/64 Inch, Material PVC, Color Gray…

UPC: 034481062233


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB E950FE Reducer Bushing is designed for efficient conduit size transitions in electrical installations. Manufactured by ABB Installation Products under the Carlon® brand, this gray PVC bushing facilitates a secure connection between 1-inch and 3/4-inch conduits. It is specifically engineered for use with Schedule 40 and Schedule 80 PVC conduit types, ensuring compatibility across common conduit systems. The bushing has a length (DIM "L") of 1-1/64 inches (1.0156 inches), an outer diameter (DIM "A") of 11/32 inches (0.34375 inches), and an inner diameter (DIM "C") of 3/16 inches (0.1875 inches). Constructed from durable PVC, it offers resistance to environmental factors such as moisture, chemicals, and temperature variations, making it suitable for both indoor and outdoor applications. This product is supplied in a convenient pack of 100, ideal for projects requiring multiple fittings, reducing the need for frequent reordering and streamlining installation workflows. Its design ensures a tight fit between conduits, minimizing potential issues such as loose connections, vibrations, or system failures in conduit systems. The reducer bushing is a practical component for managing conduit size changes in various electrical applications, including residential, commercial, and industrial installations where precise and secure conduit transitions are required.
  • Reducer bushing for 1 Inch to 3/4 Inch conduit size transition
  • Durable PVC material in Gray color
  • Compatible with Schedule 40 and Schedule 80 conduit
  • UL listed (E23018)
  • Pack of 100 units

Specifications

Application
For connecting different sizes of conduit, bell x spigot
Color
Gray
Material
PVC
Series
E950FE
Size
1 x 3/4
Size
1 Inch x 3/4 Inch
Standard
UL E23018
Standard
UL E23018 / UL E23018
Type
Reducer Bushings & Plugs
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.030 L
Package Weight (Metric)
0.014 kg
Male Terminal Adapter, Size 1 Inch, Length 1.902 Inches, Outer Diameter 1.580 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit

E943FRL

Male Terminal Adapter, Size 1 Inch, Length 1.902 Inches, Outer Diameter 1.580 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit
Connector, Snap-In, PVC, k.o. size 3/4"

617-NMD

Connector, Snap-In, PVC, k.o. size 3/4"
Reducer Bushing, Size 1-1/2 Inch x 1 Inch, Length 1-9/64 Inch, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit

E950HF-CAR

Reducer Bushing, Size 1-1/2 Inch x 1 Inch, Length 1-9/64 Inch, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit
Reducer Bushing, Size 1 Inch x 1/2 Inch, Length 57/64 Inch, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit

E950FD-CAR

Reducer Bushing, Size 1 Inch x 1/2 Inch, Length 57/64 Inch, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit
Reducer Bushing, Size 2 Inches x 1-1/2 Inch, Length 1-25/64 Inch, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit, Pack of 4

E950JHR

Reducer Bushing, Size 2 Inches x 1-1/2 Inch, Length 1-25/64 Inch, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit, Pack of 4
Reducer Bushing, Size 1 Inch x 3/4 Inch, Length 1-1/64 Inch, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit

E950FEL

Reducer Bushing, Size 1 Inch x 3/4 Inch, Length 1-1/64 Inch, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit
Reducer Bushing, Size 1-1/4 Inch x 1 Inch, Length 1-9/64 Inch, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit

E950GFL

Reducer Bushing, Size 1-1/4 Inch x 1 Inch, Length 1-9/64 Inch, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit
Reducer Bushing, Size 3/4 Inch x 1/2 Inch, Length 1-1/32 Inch, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit, Pack of 100

E950ED

Reducer Bushing, Size 3/4 Inch x 1/2 Inch, Length 1-1/32 Inch, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit, Pack of 100

Frequently Asked Questions

How many units are included in a single package?

Each package contains 100 units of the E950FE reducer bushing.

What conduit sizes does the E950FE accommodate?

The E950FE is designed for transitions between 1-inch and 3/4-inch Schedule 40 and 80 PVC conduits.

What is the material of the E950FE?

The E950FE is constructed from gray PVC, which provides durability and resistance to corrosion.

Does the E950FE meet industry safety standards?

Yes, the E950FE is UL-listed under E23018 and complies with NEC standards for electrical installations.

Is the E950FE suitable for outdoor use?

Yes, the gray PVC construction provides resistance to moisture, chemicals, and environmental stress, making it suitable for both indoor and outdoor applications.
