ABB - Installation Products E943N - Male Terminal Adapter, Size 4 Inches, Length 2.830 Inches, Outer Diameter 5.065 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit
More images

ABB Installation Products E943N Male Terminal Adapter, Size 4 Inches, Length 2.830 Inches, Outer Diameter 5.065 Inches…

UPC: 034481062103

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 20

Multiplier: 20

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB E943N Male Terminal Adapter, SKU E943N, is a precision-engineered PVC fitting designed for adapting non-metallic rigid conduit to threaded metallic systems, enclosures, or fittings. This adapter features male NPT threads on one end for direct connection to threaded components and a socket end on the opposite side for secure integration with Schedule 40 or Schedule 80 PVC conduit. Constructed from durable PVC material, the E943N delivers long-term resistance to corrosion, moisture, and environmental stressors, making it ideal for industrial, commercial, and outdoor electrical installations. Key specifications include a nominal size of 4 inches, a length of 2.830 inches, and an outer diameter of 5.065 inches. The adapter’s internal dimensions are optimized for compatibility with Schedule 40 and 80 conduit, with a minimum internal diameter of 3.895 inches. The neutral gray color ensures discreet integration into conduit systems while maintaining visual consistency. The E943N is supplied in standard carton quantities of 20 units, with a typical weight of 7.0 lbs per carton. This adapter is a critical component for electrical conduit systems requiring a reliable transition between non-metallic and metallic components. It ensures a secure, leak-proof connection that protects wiring and maintains system integrity in demanding applications. Common uses include commercial buildings, industrial facilities, data centers, and outdoor installations where PVC conduit is specified for corrosion resistance and ease of installation. The E943N is part of ABB Installation Products’ rigid nonmetallic conduit adapter series, designed to meet the dimensional and performance requirements of electrical contractors and engineers.
  • 4" nominal size with 2.830" length and 5.065" outer diameter
  • Male NPT threads for direct connection to threaded fittings or enclosures
  • Socket end for secure integration with Schedule 40 or 80 PVC conduit
  • Constructed from durable PVC for corrosion and moisture resistance
  • Compatible with 4" non-metallic conduit systems in industrial and commercial applications

Specifications

Application
For adapting non-metallic conduits to boxes, threaded fittings, metallic systems
Material
Non-Metallic
Material Quality
Non-Metallic
Special Features
Male threads on one end, socket end on the other
Standard
UL E23018
Standard
UL E23018 / UL E23018
Type
Male & Female Adapters
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.560 L
Package Weight (Metric)
0.254 kg

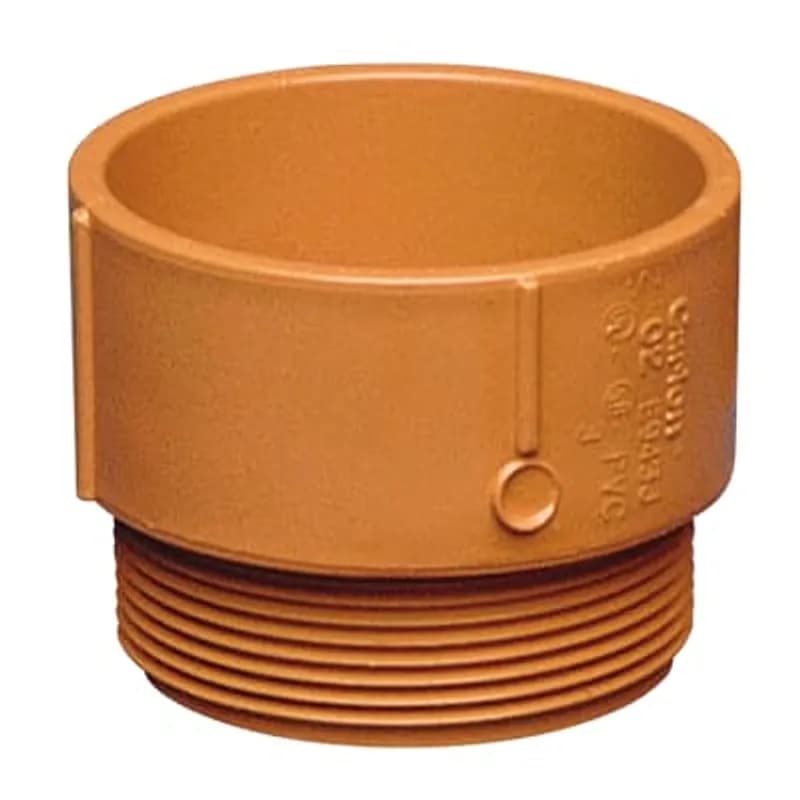

1-1/2 Inch Resi-Gard orange non-metallic male terminal adapter.

SCE943H

1-1/2 Inch Resi-Gard orange non-metallic male terminal adapter.
Dust-Tight Strain Relief Wide Range Grip, 1" NPT, Straight Male, Cable Diameter 17.78-24.64mm (.700-.970"), Approximate Break Strength 317.51kg (700 lbs)

36512

Dust-Tight Strain Relief Wide Range Grip, 1" NPT, Straight Male, Cable Diameter 17.78-24.64mm (.700-.970"), Approximate Break Strength 317.51kg (700 lbs)

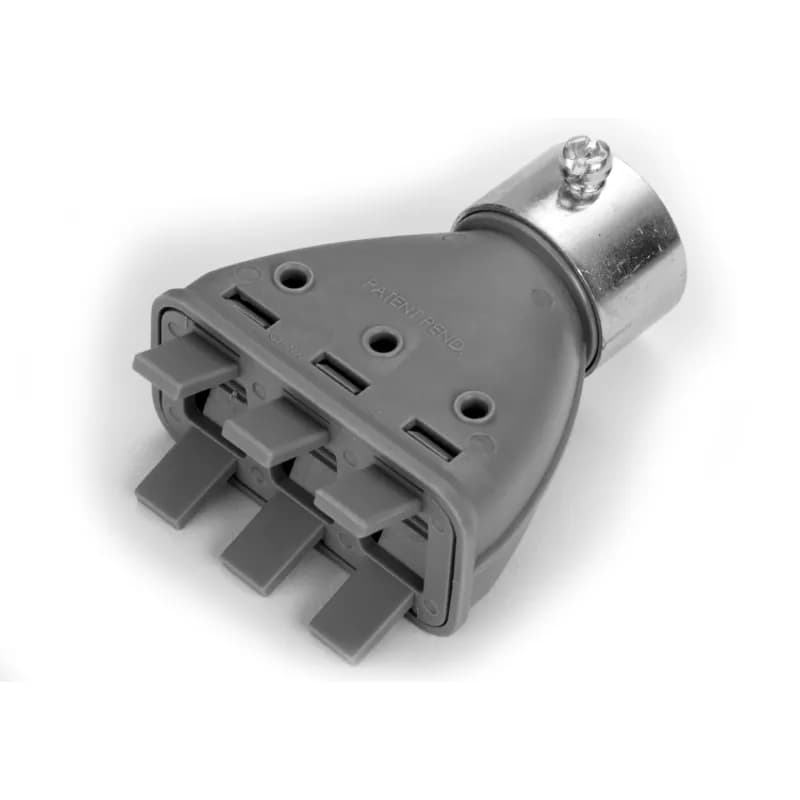

Mighty-Merge Transition Fittings. 3/4" Multi-NM to EMT Coupling
