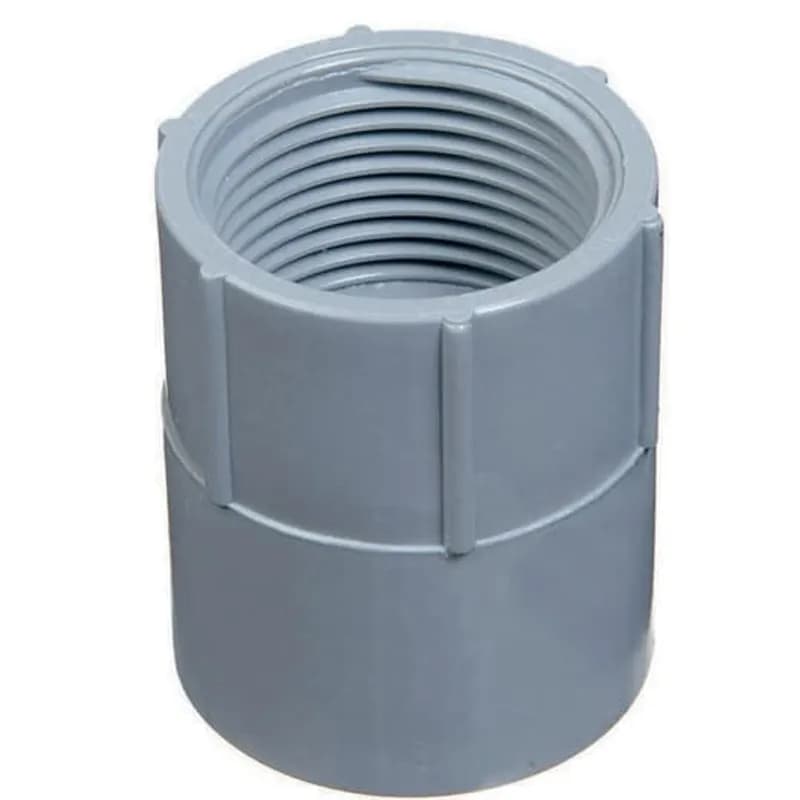

ABB - Installation Products E942DRL - Female Adapter, Size 1/2 Inch, Length 1-9/16 Inches, Outer Diameter 1-7/64 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit, Pack of 30

ABB Installation Products E942DRL Female Adapter, Size 1/2 Inch, Length 1-9/16 Inches, Outer Diameter 1-7/64 Inches…

UPC: 034481210917

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 30

Multiplier: 30

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB E942DRL 1/2-inch Female PVC Conduit Adapter is a precision-engineered fitting designed for seamless integration into electrical conduit systems. Manufactured by ABB Installation Products, a leader in industrial and commercial electrical solutions, this adapter ensures reliable performance in both Schedule 40 and 80 PVC conduit applications. With a durable gray PVC construction, it delivers exceptional corrosion resistance and long-lasting durability, even in demanding environments. Key specifications include a 1/2-inch nominal size, a 1-9/16-inch length, and an outer diameter of 1-7/64 inches, ensuring compatibility with standard conduit systems. The female threaded end allows for secure connections to threaded fittings, metallic systems, or boxes, while the socket end accommodates non-metallic conduits. This dual-function design simplifies installation and reduces the need for additional components, saving time and labor costs. Ideal for electrical contractors, maintenance professionals, and industrial facilities, the ABB E942DRL adapter is packaged in a cost-effective set of 30, making it perfect for large-scale projects. Its compliance with industry standards ensures reliable performance in a wide range of applications, from commercial buildings to manufacturing plants. Trust ABB Installation Products for high-quality electrical fittings that meet the demands of modern electrical systems.
  • 1/2-inch female PVC conduit adapter for Schedule 40 and 80 systems
  • Gray PVC construction for superior corrosion resistance and durability
  • 1-9/16-inch length and 1-7/64-inch outer diameter for standard compatibility
  • Female threaded end for secure connections to threaded fittings or metallic systems
  • Pack of 30 for cost-effective large-scale electrical projects

Specifications

Application
For adapting non-metallic conduits to threaded fittings, metallic systems
Color
Gray
Material
PVC
Material
Non-Metallic
Size
1/2 Inch
Special Features
Female threads on one end, socket end on the other
Type
Male & Female Adapters
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.030 L
Package Weight (Metric)
0.014 kg
