ABB - Installation Products E920E - 3/4 inch PVC conduit repair male threaded adapter.

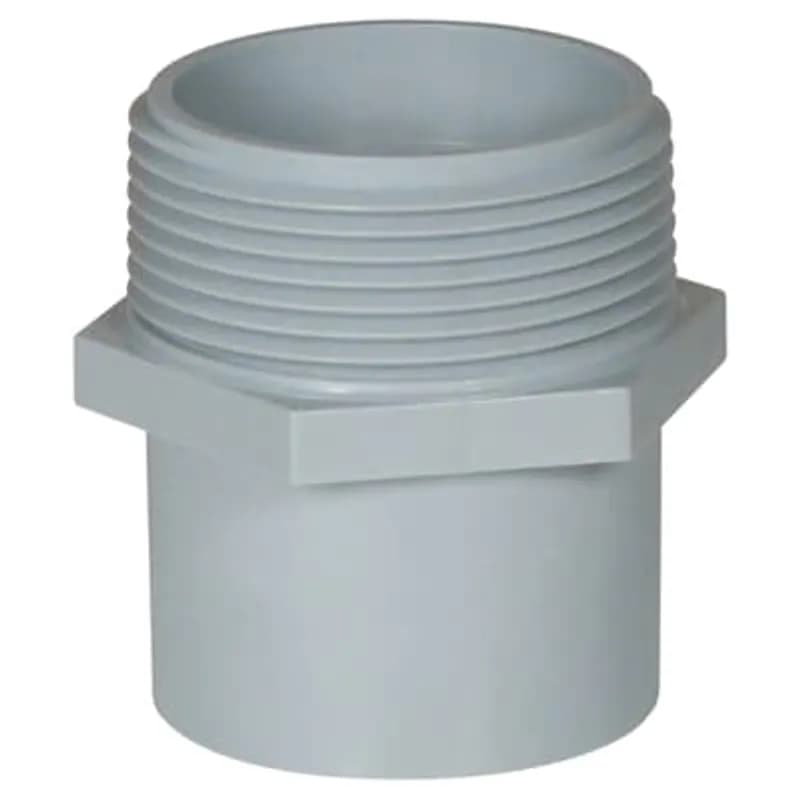

ABB Installation Products E920E 3/4 inch PVC conduit repair male threaded adapter.

UPC: 034481192398

Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB E920E (SKU: E920E) is a 3/4 inch male threaded adapter designed for efficient PVC conduit system repairs. This fitting, part of the Carlon PVC Conduit Repair System, allows for rapid restoration of damaged conduit without the need to remove concrete slabs, significantly reducing repair time from an estimated 20 minutes to under 2 minutes. Constructed from durable PVC, the E920E offers resistance to moisture, chemicals, and UV exposure, ensuring longevity in demanding industrial and commercial environments. Its male threaded connection provides a secure, leak-proof interface with standard 3/4" Schedule 40 and Schedule 80 PVC conduit, maintaining electrical continuity and protection. The Carlon repair system is compatible with conduit sizes from 1/2" to 2", offering a comprehensive solution that includes couplings, adapters, reamers, and plugs. Key applications include repairing broken conduit stub-ups in concrete, extending electrical systems, and maintaining infrastructure in manufacturing facilities. Each carton contains 25 units for convenient inventory management. The E920E integrates seamlessly into existing conduit runs, minimizing downtime and labor costs.
  • 3/4 inch trade size male threaded adapter for PVC conduit repair.
  • Facilitates quick repairs without concrete removal, saving significant time.
  • Durable PVC construction resists moisture, chemicals, and UV exposure.
  • Provides a secure, leak-proof connection for Schedule 40 and 80 conduit.
  • Part of the comprehensive Carlon PVC Conduit Repair System.

Specifications

Application
For repairing broken PVC conduit a.k.a stub-ups in concrete slabs
Connection Type
Male Threaded
Material
PVC
Material
Non-Metallic
Material Quality
Non-Metallic
Series
E920E
Series
Carlon PVC Conduit Repair System
Size
3/4 Inch
Special Features
PVC repair fittings are listed in accordance with the NEC and Section 352.6
Standard
UL E256675 / UL E256675
Type
Adapters
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.010 L
Package Weight (Metric)
0.005 kg
Male Terminal Apadpter, Size 1/2 Inch, Length 1.310 Inches, Outer Diameter 1.042 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit, Pack of 150

E943D

Male Terminal Apadpter, Size 1/2 Inch, Length 1.310 Inches, Outer Diameter 1.042 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit, Pack of 150
1-1/2 inch PVC conduit repair male threaded adapter.

E920H

1-1/2 inch PVC conduit repair male threaded adapter.
Long-Line Sleeve Coupling, Size 4 Inches, Length 7 Inches, Outer Diameter 5.02 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit

E948N7

Long-Line Sleeve Coupling, Size 4 Inches, Length 7 Inches, Outer Diameter 5.02 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit
Long-Line Coupling with Conduit Stop, Size 4 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit

E941N

Long-Line Coupling with Conduit Stop, Size 4 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit
Long-Line Sleeve Coupling, Size 2 Inches, Length 3 Inches, Outer Diameter 2.72 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit

E948J

Long-Line Sleeve Coupling, Size 2 Inches, Length 3 Inches, Outer Diameter 2.72 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit
Long-Line Coupling with Conduit Stop, Size 6 Inches, Material PVC, Color Gray, For use with Schedule 40 Conduit

E941RF

Long-Line Coupling with Conduit Stop, Size 6 Inches, Material PVC, Color Gray, For use with Schedule 40 Conduit
Male Terminal Adapter End Expansion Fitting, Size 1-1/2 Inch, Material PVC, Color Gray, For use with Schedule 40 and 80

E945HX

Male Terminal Adapter End Expansion Fitting, Size 1-1/2 Inch, Material PVC, Color Gray, For use with Schedule 40 and 80
Standard Coupling, Size 1-1/2 Inch, Length 2-3/8 Inches, Outer Diameter 2-15/64 Inches, Inner Diameter 1.755 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit

E940H

Standard Coupling, Size 1-1/2 Inch, Length 2-3/8 Inches, Outer Diameter 2-15/64 Inches, Inner Diameter 1.755 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit

How to Install PVC Conduit Transition Fittings

This guide provides step-by-step instructions for installing PVC conduit transition fittings, ensuring a clean and secure connection.

Estimated time: 45m

Tools needed:

Drill motor, Reamer tool, Screwdriver

Supplies needed:

PVC cement, Plugs, Transition fittings

  1. Prepare the conduit

    Grind away any broken pipe sections to ensure a clean surface for installation.

  2. Insert plugs

    Insert plugs into the conduit to keep it clean and dry during the rough-in process. Remove the plugs once the rough-in is complete.

  3. Ream the conduit

    Using a reamer tool attached to a variable speed drill, ream the inner diameter of the conduit at a slow speed to avoid overheating.

  4. Insert and cement the fitting

    Clean the socket and spigot ends, apply a uniform coat of PVC cement, insert the fitting, and rotate it 1/4 turn to secure.

  5. Allow cement to set

    Let the cement cure according to the manufacturer's instructions before disturbing the fitting.
