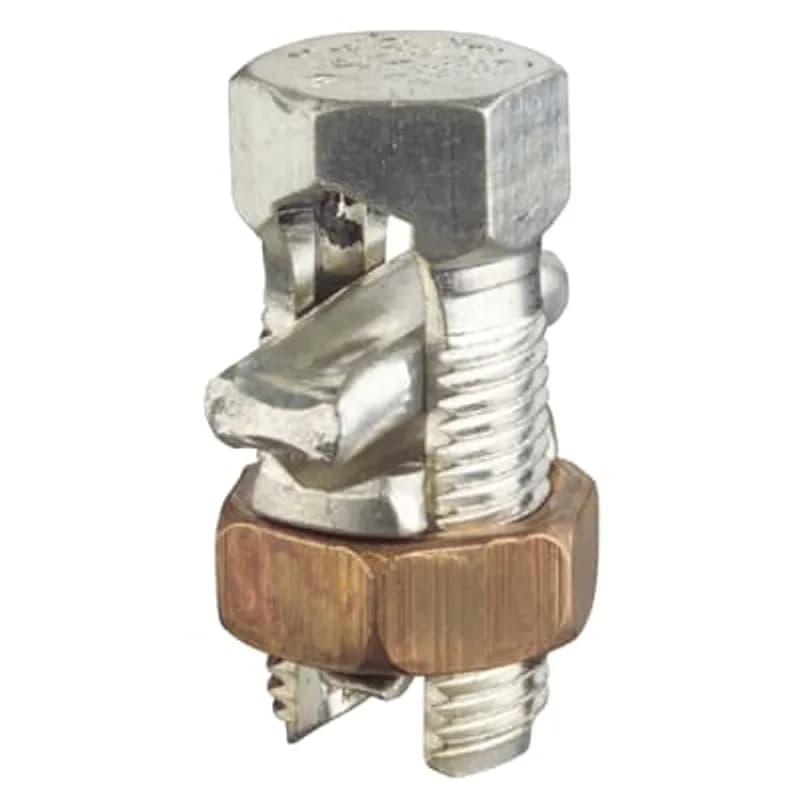

ABB Installation Products E-6HPS-25 Type HPS Plated Split-Bolt Connector with Spacer made of Copper Alloy for Use on Copper…
UPC: 075114242370
Documents & Media
Contact for Pricing
Minimum Qty: 100
Multiplier: 100
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Type HPS Plated Split-Bolt Connector
- Constructed from durable Copper Alloy
- Suitable for Copper, Aluminum, and ACSR Conductors
- Conductor Range: 6 Sol. - 12 Sol. (Equal Main and Tap)
- Includes Spacer for precise alignment
Specifications
Connection Type | Split-Bolt |
Finish | Tin Plated |
Housing Material | Bronze Alloy |
Material | Copper Alloy |
Series | HPS |
Size | 6 Sol.-12 Sol. |
Type | Split-Bolt Connector |
Wire Size | 12-6 AWG |
Package Dimensions (L x W x H) | 7 IN x 5 IN x 0.5 IN |
Package Dimensions (L x W x H) | 17.78 cm x 12.7 cm x 1.27 cm |
Package Weight (Imperial) | 0.0600 L |
Package Weight (Metric) | 0.0270 kg |

RCPTG 6 V1
Aluminum Pin Terminal With FSS Cap, Offset Tin-Plated Copper Pin 3.500 inches long on flat x .204 inch Diameter. Wire Size #6 ASC. Die CSA 22. Body 2 inch Length x .635 inch Diameter. Includes Oxide Inhibitor Compound, Sealant, Blue Cap, FSS 20 Cap (T).
SB 3535
Aluminum Compression Splice, Length 6.625 inch. 266.8 (26/7) or 300 (26/7) or 336 (18.1) ACSR or 336.4 or 350 kcmil Stranded. Dies 1 1/8-1, 96, 299, 655, 13A. Clear Cap. Oxide Inhibitor Compound. Center Stop.
SB 3935
Aluminum Reducer Splice, 8 Inch Length, 1.12 Outside Diameter, Wire Size Side A - 336.4(26/7) - (30/7) ACSR, 397.5(18/1) ACSR or 397.5 to 400 kcmil Aluminum/Copper. Dies 96, 655, 299, 1 1/8-1, 13A. Side B - 336.4-350 kcmil Aluminum/Copper or 266.8(26/7) 336.4(18/1) ACSR or 300(26/7) ACSR. Dies 96, 655, 299, 1 1/8-1, 13A. Oxide Inhibitor Compound, Clear Caps. Center Stop.
SB 5035
Aluminum Reducer Splice, 6.63 Inch Length, 1.12 Outside Diameter, 500 MCM Aluminum To 350 MCM Aluminum/Copper. Dies 96, 299, 655. Includes Oxide Inhibitor Compound and Clear Caps. Center Stop.
CPT 4/0-875
Tin Plated Copper Pin Terminal. Pin .460 inch Diameter Copper Rod X .875 inch Length, Wire Size 4/0 Stranded Copper. Dies TW TY 54 15 5/8-1. Body Length 2.750 inch x .688 inch Diameter.
ABP 4350-1/2-2 C
Aluminum Overhead Transformer Eyebolt Multi-Tap Set Screw Connectors, length 5 inch, stud size 1/2 X 2, cable range #12-350 kcmil, outlets 4, with Oxide InhibitorFrequently Asked Questions
What conductor types can the E-6HPS-25 connect?
The ABB E-6HPS-25 connector is designed for use on copper, aluminum, and ACSR conductors.
What is the conductor size range for this split-bolt connector?
The E-6HPS-25 supports a conductor range of 6 Sol. to 12 Sol. for equal main and tap connections.
What material is the ABB E-6HPS-25 connector made from?
This split-bolt connector is made from a plated copper alloy.
Does the E-6HPS-25 come with a spacer?
Yes, the Type HPS Plated Split-Bolt Connector includes a spacer for proper conductor alignment.
