Contact for Pricing
Minimum Qty: 4
Multiplier: 4
*Contact for lower quantities*
Overview
- Durable non-metallic construction for corrosion resistance
- Dimensions: 9.18" Length x 4.75" Width x 2.875" Depth
- Includes four arms for secure surface attachment
- Comes with #8-32 screws for easy installation
- Supplied with two cord fittings for cable routing
Specifications
Application | Provides a safe and aesthetic solution for outdoor raised deck applications |
Color | Black |
Knockouts | Yes |
Material | Non-Metallic |
Special Features | Meets new UL and NEC requirements for while-in-use outdoor receptacles |
Standard | UL E11461 |
Standard | UL E11461 / UL E11461 |
Type | Deck Grommet |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.330 L |
Package Weight (Metric) | 0.603 kg |

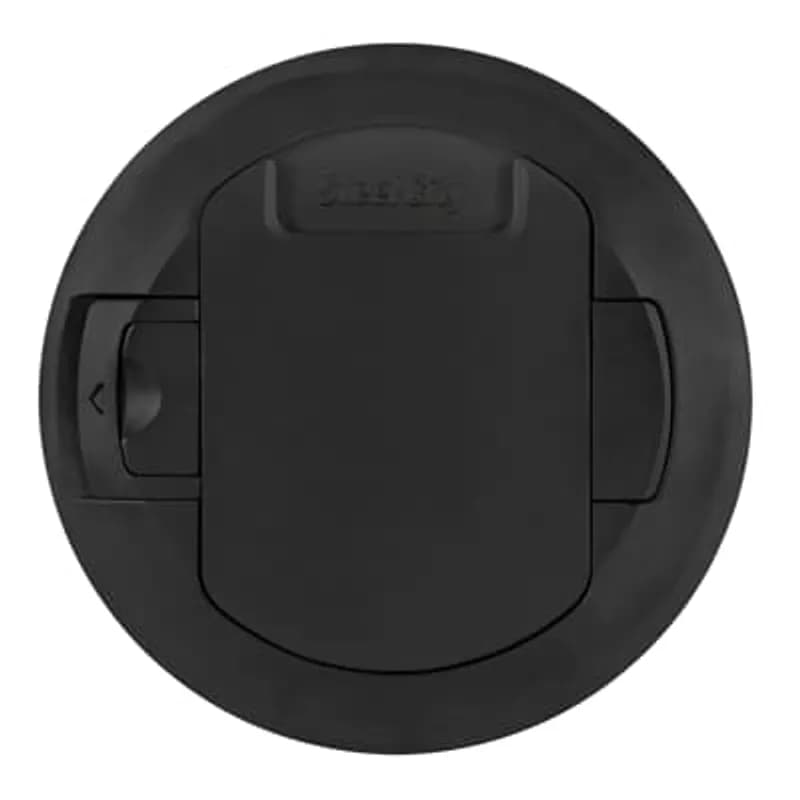

RPT6-CVR-BLK
Recessed Poke-Through Cover, 8 Inch Diameter, Flange Thickness 0.375 Inches, Material Black Powder Coated Aluminum

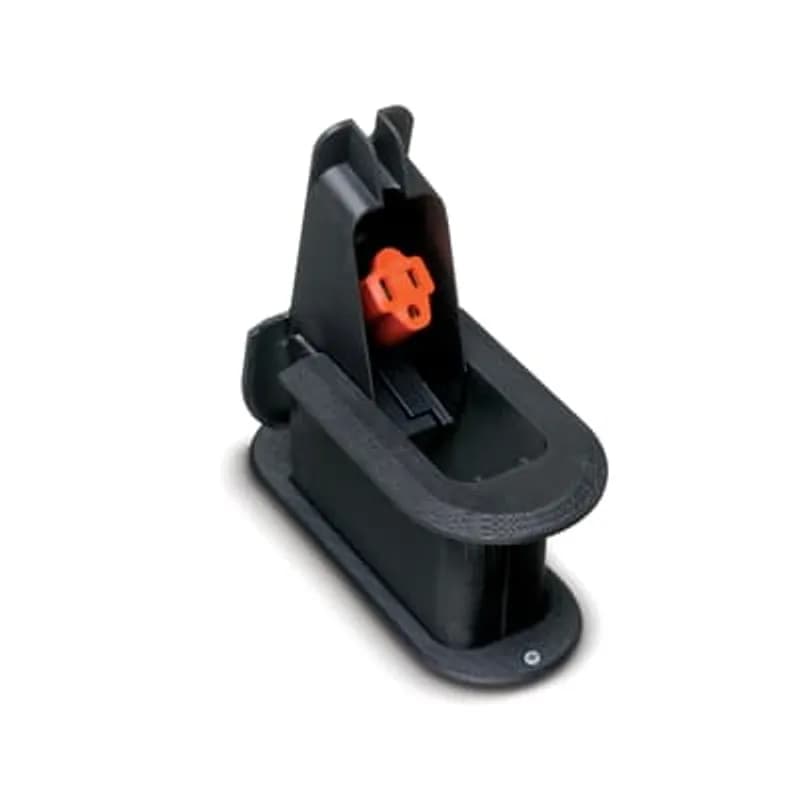

DKG
Deck Grommet, Length 8.37 Inches, Width 3.5 Inches, Depth 5.13 Inches, Black, Non-Metallic, Includes Cord Lock and Screw and Two Flange Screws, #8 x 3/4 Inch Wood ScrewDKG-TP
Deck Grommet, Length 8.37 Inches, Width 3.5 Inches, Depth 5.13 Inches, Black, Non-Metallic, Includes Cord Lock and Screw and Two Flange Screws, #8 x 3/4 Inch Wood Screw, Traypak

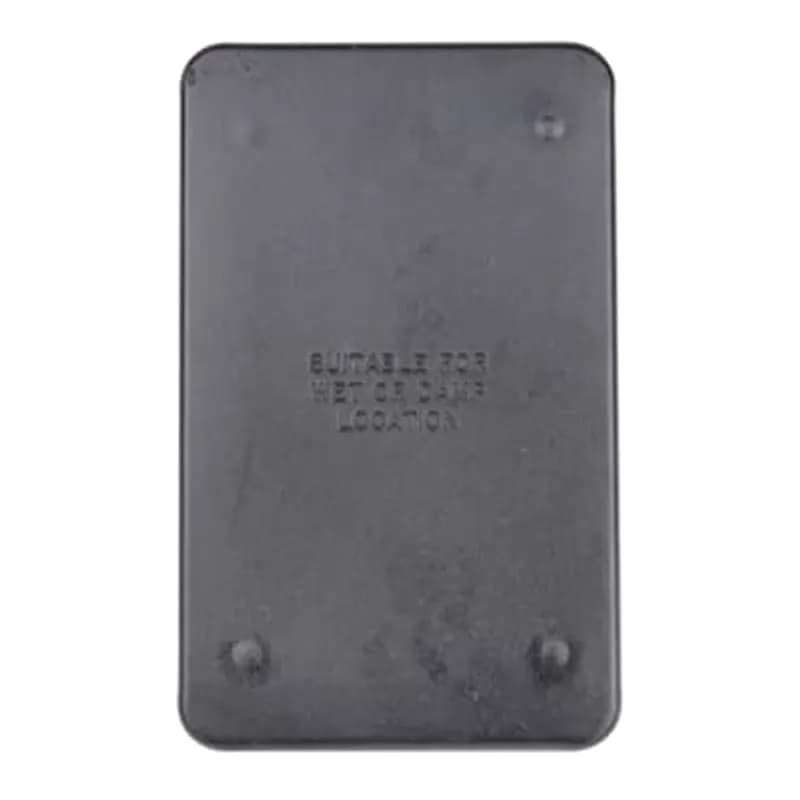

FSC-51
One-Gang Blank Weatherproof Cover with Gasket, Color Brown, Material Phenolic, Mounting Means Stainless Steel Screws
665-CST-M-BLK
Concealed Service Top, Length 9.320 Inches, Width 9.336 Inches, Depth 0.813 Inches, Material Black Powder Coated Aluminum
F866-G
PVC Coated F Service Head, Threaded Rigid, Conduit Size 3 Inch, Number and Diameter of Cover Knockouts Two at 1-7/16 Inch, One at 17/32 Inch, One at 1/64 Inch, and One at 61/64 Inch, Aluminum, Black
FFPT6-CVR-BLK
Furniture Feed Poke-Through Cover, 8 Inch Diameter, Flange Thickness 0.188 Inches, Material Black Powder Coated Solid Aluminum, with 3/4 Inch and 2 Inch NPS Threaded Hub, 3/4 Inch Plug, 2 Inch x 1-1/4 Inch NPS Reducer and 4 Mounting Screws

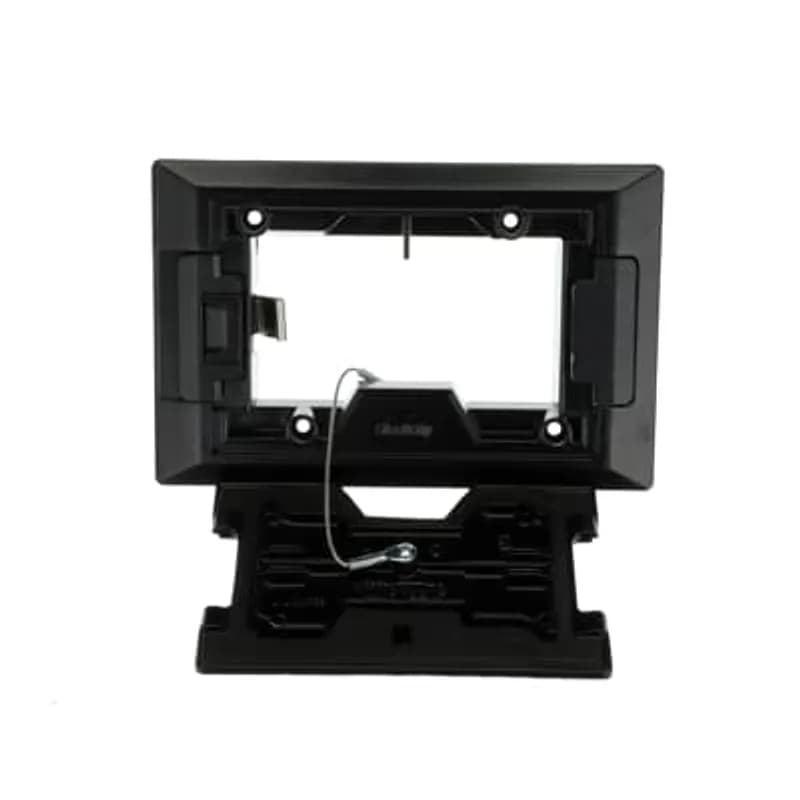

664-CST-M-BLK
Concealed Service Top, Length 8.375 Inches, Width 5.5 Inches, Depth 0.845 Inches, Material Black Powder Coated AluminumFrequently Asked Questions
What are the product dimensions of DKG-PRO?
The product dimensions are 4.75 inches by 9.18 inches.
What safety standards does DKG-PRO comply with?
The DKG-PRO complies with NEC requirements for wet locations and 'Extra-Duty' outlet box hoods.
What is the length of the flexible cord included?
The flexible cord included is 3 feet long.
What is the hole cutout size for installation?
The hole cutout size is 3.6 inches by 8.0 inches.
What type of receptacle is required for DKG-PRO?
A GFCI or standard duplex receptacle that is weather-resistant and tamper-resistant is required.
How does DKG-PRO enhance safety for outdoor use?
It eliminates the safety hazard of power cords draping along the deck surface by keeping the receptacle concealed.
What types of applications is DKG-PRO suitable for?
It is ideal for outdoor living spaces and light commercial raised deck applications.
What is the required distance from joists for installation?
The installation should be a minimum of 2 inches away from joists on both sides.
What is the operating temperature rating of the cord whip?
The cord whip is rated for 105°C.
What is the minimum installation height from the ground?
The installation height should be a minimum of 2 feet from the ground.
How to Install the Deck Grommet™ Pro
This guide provides step-by-step instructions for installing the Deck Grommet™ Pro on your deck, ensuring proper wiring and functionality.
Estimated time: 1h
Tools needed:
Screwdriver, Jig saw, Drill, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Flexible cord connectors, Weatherproof outlet box, GFCI or standard duplex receptacle
- Prepare the deck for installation
Select the installation location for the Deck Grommet™ Pro, ensuring there are no obstructions underneath the deck. Use the supplied cut-out template to trace the cut-out shape onto the deck board.
- Cut the deck opening
Drill a 1/2" diameter starter hole along the traced line and use a jig saw to cut out the shape through the deck surface.
- Install the weatherproof outlet box
Attach the weatherproof outlet box to a floor joist adjacent to the Deck Grommet™ Pro location, ensuring it aligns with the center of the cut-out hole.
- Connect the flexible cord
Insert the unstripped end of the flexible cord into the weatherproof outlet box and connect the stripped conductors to the AC power supply according to the manufacturer's instructions.
- Mount the Deck Grommet™ Pro
Place the Deck Grommet™ Pro into the cut-out opening and secure it using the attached swing clamps by tightening the screws until they contact the underside of the deck board.
- Test the installation
Turn on the electrical power to the circuit and test the GFCI protection according to the manufacturer's instructions.
- Finalize the installation
Open the Deck Grommet™ Pro cover, insert the plug from the electrical cord into the receptacle, create a drip loop in the cord, and close the cover ensuring the latch snaps shut.
