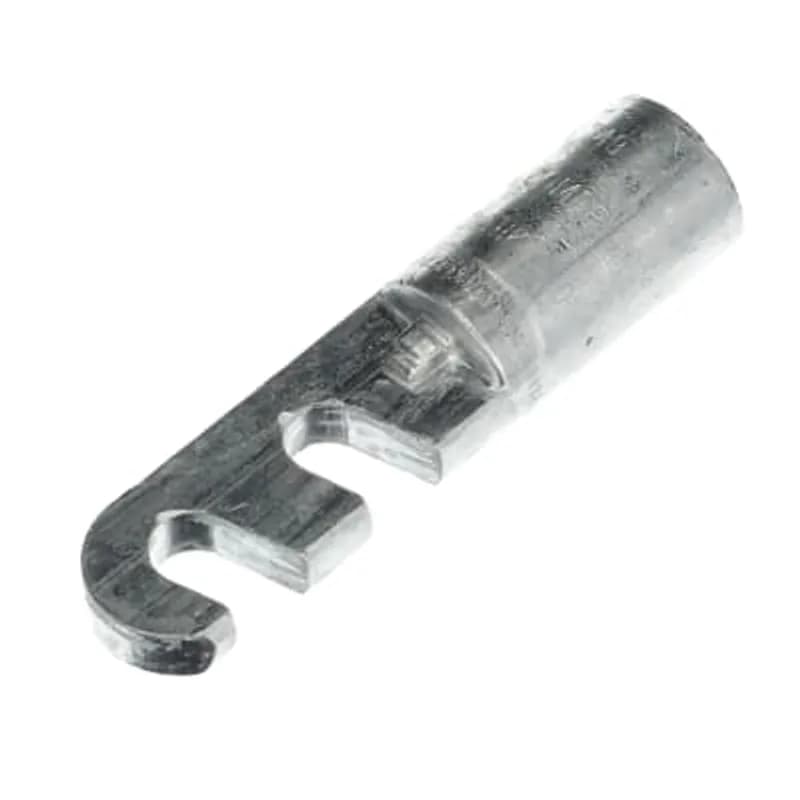

ABB Installation Products DHK 1/0 Aluminum Compression Hook (Slotted Tang) Lug - 1/0 Stranded Solid Compressed Compact…
UPC: 783786717415
Documents & Media
Contact for Pricing
Minimum Qty: 200
Multiplier: 200
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Designed for 1/0 stranded solid compressed compact conductors
- Slotted tang with two .400 inch wide slots for secure mounting
- Includes oxide inhibitor for enhanced conductivity and corrosion resistance
- Red cap for identification and protection
- Compatible with dies TX 76 249 840 11A
Specifications
Cable Size | 1/0 STR AWG , 1/0 COMPR AWG , 1/0 SOL AWG , 1/0 COMPT AWG |
Connection | Compression |
Insulation | None |
Material | Aluminum |
Number Of Holes | 2-Slots |
Size | 3.780 inch |
Type | Slotted-Tang Compression Terminal Lug |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.1300 L |
Package Weight (Metric) | 0.0590 kg |
RDC1/0
Ratchet Drive Crimping Tool APPLICATIONS: Ratchet Drive Crimping Tool is for non-insulated terminals from 6 to 1/0 AWG and insulated terminals from 22 to 8 AWG. Rugged, compact, and lightweight. Requires minimum effort due to ratchet action, ensuring an excellent crimp every time. FEATURES: TYPE: Insulated and Uninsulated ACTION: Ratchet INSULATED USE: Terminals 22 to 8 AWG NON-INSULATED USE: Terminals 6 to 1/0 AWG MANUFACTURER: NSi Industries PART NUMBER: RDC 1/0 UPC: 662381055309
F4-PS-W-NP
Non-Insulated Parallel Splice Connector For Wire Range #4 AWG, Circular Mil Range 33,100-52,600, Length 0.531 Diameter 0.41, Nickel Plated
AS-K1-H6
Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
1SNK705010R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
1SNK705030R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
E989NNJ-5-HD
Molded Junction Box, Length 4 Inch x Width 4 Inch x Depth 2 Inch, Material Polycarbonate, Color Gray
Frequently Asked Questions
What conductor sizes does the DHK 1/0 lug accommodate?
The DHK 1/0 lug is designed for 1/0 stranded solid compressed compact conductors.
What type of tang does the DHK 1/0 lug feature?
The DHK 1/0 lug features a slotted tang with two slots, each .400 inches wide.
Does the DHK 1/0 lug come with an oxide inhibitor?
Yes, the DHK 1/0 lug includes an oxide inhibitor to prevent corrosion and maintain conductivity.
What color is the cap on the DHK 1/0 lug?
The DHK 1/0 lug comes with a red cap for identification and protection.
What dies are compatible with the DHK 1/0 lug?
The DHK 1/0 lug is compatible with dies TX 76 249 840 11A.
What is the overall length of the DHK 1/0 lug?
The overall length of the DHK 1/0 lug is 3.780 inches.
Can the DHK 1/0 lug be used with both aluminum and copper conductors?
Yes, the DHK 1/0 lug is suitable for both aluminum and copper conductors.
