ABB - Installation Products DB 202 - Aluminum H-Type Compression Connectors, length 1-1/2 inch, die D.
More images

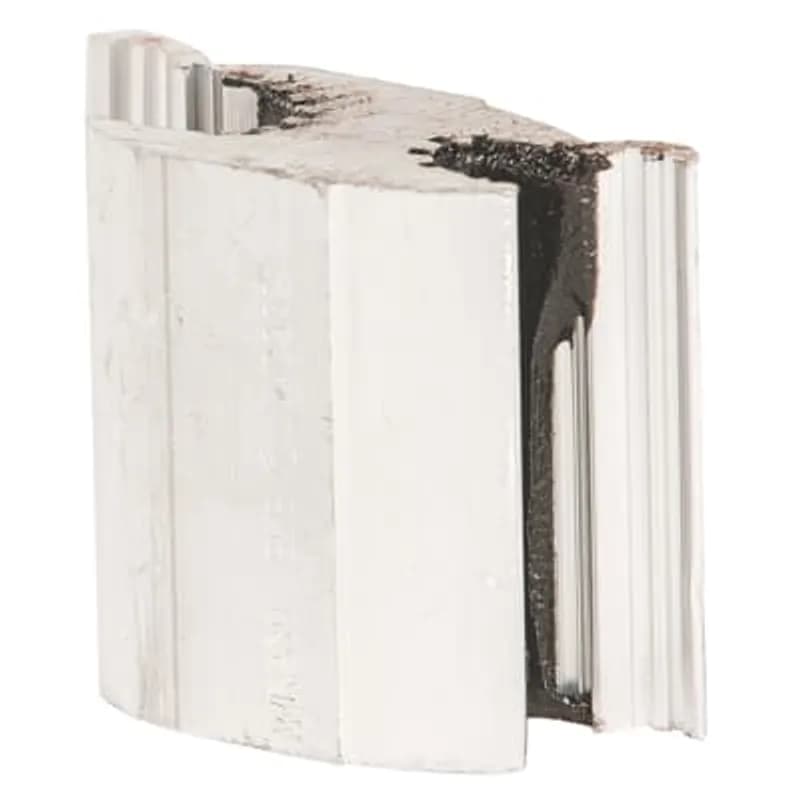

ABB Installation Products DB 202 Aluminum H-Type Compression Connectors, length 1-1/2 inch, die D.

UPC: 783786717125

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 250

Multiplier: 250

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

ABB Installation Products DB 202 Aluminum H-Type Compression Connectors provide reliable, high-conductivity connections for electrical wiring applications. Constructed from durable aluminum, these connectors are designed for compression installation, ensuring a tight, long-lasting bond between conductors. The 1-1/2 inch length and die D configuration accommodate standard wire gauges, making them suitable for branch circuit, feeder, and service entrance applications in residential, commercial, and industrial electrical systems. Compression connectors eliminate the variability of hand-tightened connections, reducing the risk of loose or high-resistance joints that can lead to overheating or system failures. The aluminum material offers a balance of conductivity, corrosion resistance, and cost-effectiveness compared to copper alternatives, while maintaining compliance with NEC and UL standards for electrical installations. These connectors are ideal for use with THHN, THWN, XHHW, and other common building wire types. Installation requires a compatible compression tool and die set, ensuring consistent results across multiple applications. The H-Type design provides a secure grip on the conductor while maintaining proper insulation clearance.
  • Material: Aluminum for conductivity and corrosion resistance
  • Length: 1-1/2 inch for standard installation requirements
  • Die Configuration: D for compatibility with common wire gauges
  • Connection Type: Compression for secure, low-resistance joints
  • Applications: Branch circuits, feeders, and service entrances

Specifications

Application
For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors
Connection
Compression
Environmental Conditions
All Seasons / Conditions
Finish
Uncoated
Housing Material
Aluminum
Housing Material
Aluminium
Insulation
None
Mounting
None
Number Of Conductors
2
Size
1-13/16 inch Length
Special Features
Made of 1350 Aluminum Alloy for high strength and high conductivity. Standard Compression tools and dies install all sizes - no special tools needed. Field-proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape. Fold-in tabs provide tab interlock as tool closes. Prefilled with oxide inhibitor held captive in the rib/connection area
Standard
RUS Accepted. Complies with ANSI C119.4 Specifications
Temperature Rating, Maximum
194 F
Temperature Rating, Maximum
90 C
Temperature Rating, Minimum
194 F
Temperature Rating, Minimum
90 C
Type
H-Type Compression Tap Connector
Wire Size
Groove A: 2/0 to #1 ACSR or 3/0 to 1/0 STR , Groove B: #2 to #6 ACSR/SOL or #1 to #6 STR AWG
Package Dimensions (L x W x H)
1 IN x 1 IN x 1 IN
Package Dimensions (L x W x H)
2.54 cm x 2.54 cm x 2.54 cm
Package Weight (Imperial)
0.1300 L
Package Weight (Metric)
0.0590 kg
Aluminum H-Tap Compression Connectors, length 1-7/8 inch, die D. 3 Connectors

DB 3

Aluminum H-Tap Compression Connectors, length 1-7/8 inch, die D. 3 Connectors
The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IPLMD350-6

The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
Aluminum H-Tap Compression Connectors, length 2-1/2 inch, die D. 6 Connectors

DB 6

Aluminum H-Tap Compression Connectors, length 2-1/2 inch, die D. 6 Connectors
Aluminum Flood-Seal 125 Series Connectors - one-way configuration, one-bolt design, length 14-3/4 inch, outlets 8

FS 8-125

Aluminum Flood-Seal 125 Series Connectors - one-way configuration, one-bolt design, length 14-3/4 inch, outlets 8
Copper Tin Plated Bails, conductor size 2, height 2-3/4 inch, length 4-1/2 inch. Bail Only, no clamp.

HLCB 2

Copper Tin Plated Bails, conductor size 2, height 2-3/4 inch, length 4-1/2 inch. Bail Only, no clamp.
Tin Plated Copper Two-Hole Straight NEMA Compression Lugs. wire size 1000 kcmil Copper, Installing Dies 125, 642. Length 7-1/4 inch. Pad 1-3/4 inch wide x 3-1/4 inch long x 21/64 inch thick. (2) 9/16 inch holes on 1-3/4 inch center. Barrel 2-29/32 inch long. CSA. UL Listed.

L 1000 NT

Tin Plated Copper Two-Hole Straight NEMA Compression Lugs. wire size 1000 kcmil Copper, Installing Dies 125, 642. Length 7-1/4 inch. Pad 1-3/4 inch wide x 3-1/4 inch long x 21/64 inch thick. (2) 9/16 inch holes on 1-3/4 inch center. Barrel 2-29/32 inch long. CSA. UL Listed.
Tin Plated Copper Two-Hole Straight NEMA Lugs, wire size 1/0 Stranded Copper. Dies 42, 12, 163, 1/2. Length 4-7/8 inch. Pad 49/64 inch x 1-5/8 inch long x 7/64 inch thick. (2) 13/32 inch holes on 7/8 center. Barrel 1-3/8 inch long. CSA. UL listed.

L 1/0-238

Tin Plated Copper Two-Hole Straight NEMA Lugs, wire size 1/0 Stranded Copper. Dies 42, 12, 163, 1/2. Length 4-7/8 inch. Pad 49/64 inch x 1-5/8 inch long x 7/64 inch thick. (2) 13/32 inch holes on 7/8 center. Barrel 1-3/8 inch long. CSA. UL listed.
Tin Plated Copper One-Hole Straight NEMA Lugs. wire size # 2 Stranded CU. Installing Dies 33, 162, 3/8, 10. Length 2-1/2 inch. Pad 5/8 inch wide x 57/64 inch long x 3/32 inch thick. (1) 13/32 inch hole. Barrel 1-3/16 inch. CSA. UL Listed.

L 2-38

Tin Plated Copper One-Hole Straight NEMA Lugs. wire size # 2 Stranded CU. Installing Dies 33, 162, 3/8, 10. Length 2-1/2 inch. Pad 5/8 inch wide x 57/64 inch long x 3/32 inch thick. (1) 13/32 inch hole. Barrel 1-3/16 inch. CSA. UL Listed.
