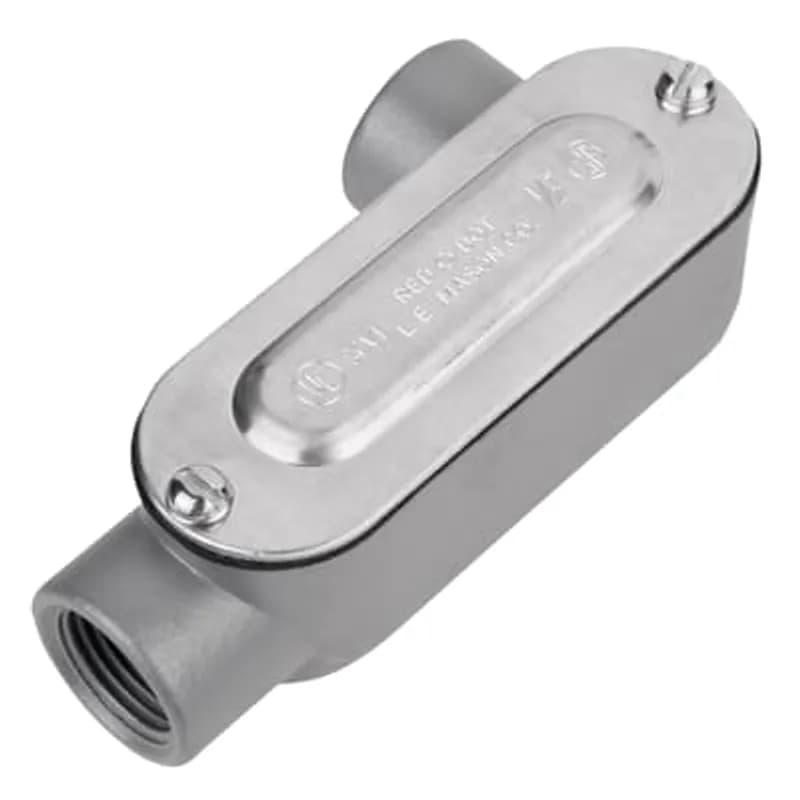

ABB - Installation Products DALR-2-CG - 3/4 inch Threaded D-Pak Die Cast Aluminum Conduit Body-Right Side Opening, Cover & Gasket. For use with Rigid/IMC Conduit.
ABB - Installation Products

DALR-2-CG

UPC: 042269810921

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 15

Multiplier: 15

*Contact for lower quantities*

Overview

The DALR-2-CG from ABB Installation Products is a 3/4 inch threaded D-Pak die cast aluminum conduit body designed for use with Rigid and IMC conduit systems. This right side opening conduit body provides a durable, corrosion-resistant housing for electrical wiring transitions in industrial and commercial installations. Constructed from high-strength die cast aluminum, the DALR-2-CG ensures long-term reliability in demanding environments while maintaining electrical integrity. The included cover and gasket create a secure seal against moisture, dust, and contaminants, protecting connections from environmental hazards. The 3/4 inch threaded design allows for direct integration with Rigid/IMC conduit systems, eliminating the need for additional adapters in most applications. This conduit body is ideal for applications requiring secure wire management, such as manufacturing facilities, power distribution systems, and outdoor electrical installations. The D-Pak series from ABB is engineered for compatibility with standard electrical infrastructure, ensuring seamless integration with existing conduit systems. With a right side opening configuration, this conduit body provides flexible installation options while maintaining code compliance for electrical safety. The die cast aluminum construction offers superior strength-to-weight ratio compared to traditional cast iron alternatives, reducing installation labor while maintaining structural integrity. This product is manufactured by ABB, a global leader in electrical and automation technologies, ensuring consistent quality and adherence to industry standards.
  • 3/4 inch threaded D-Pak design for Rigid/IMC conduit compatibility
  • Die cast aluminum construction for corrosion resistance and durability
  • Right side opening configuration with included cover and gasket
  • Secure seal against moisture, dust, and contaminants
  • Manufactured by ABB Installation Products for reliable performance

Specifications

Application
For Use with Rigid/IMC Conduit
Hub Size
3/4
Material Quality
Aluminum Die Cast
Special Features
Combination Packaging of Conduit Body, Cover and Gasket Reduces Handling and Inventory Costs
Standard
UL E28688
Type
Conduit Body - Series A - Rigid/IMC
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.5000 L
Package Weight (Metric)
0.2270 kg
Type LR Conduit Body, Volume 12 Cubic Inches, Size 3/4 Inch, Length 6-9/32 Inches, Width 2-1/32 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit

E985EL

Type LR Conduit Body, Volume 12 Cubic Inches, Size 3/4 Inch, Length 6-9/32 Inches, Width 2-1/32 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit
1 Inch Threaded D-Pak Die Cast Aluminum Conduit Body-Right Side Opening, Cover and Gasket, For Use with Rigid/IMC Conduit

DALR-3-CG

1 Inch Threaded D-Pak Die Cast Aluminum Conduit Body-Right Side Opening, Cover and Gasket, For Use with Rigid/IMC Conduit
1/2 inch Threaded D-Pak Die Cast Aluminum Conduit Body, T-Style, Cover & Gasket. For use with Rigid/IMC Conduit.

DAT-1-CG

1/2 inch Threaded D-Pak Die Cast Aluminum Conduit Body, T-Style, Cover & Gasket. For use with Rigid/IMC Conduit.
D-Pak, 1/2 inch Die Cast Aluminum Service Entrance Body, Cover and Gasket. For Use with Rigid/IMC Conduit

DASLB-1

D-Pak, 1/2 inch Die Cast Aluminum Service Entrance Body, Cover and Gasket. For Use with Rigid/IMC Conduit
3/4 inch Threaded D-Pak Die Cast Aluminum Conduit Body, T-Style, Cover & Gasket. For use with Rigid/IMC Conduit.

DAT-2-CG

3/4 inch Threaded D-Pak Die Cast Aluminum Conduit Body, T-Style, Cover & Gasket. For use with Rigid/IMC Conduit.
1 inch Threaded D-Pak Die Cast Aluminum Conduit Body, T-Style, Cover & Gasket. For use with Rigid/IMC Conduit.

DAT-3-CG

1 inch Threaded D-Pak Die Cast Aluminum Conduit Body, T-Style, Cover & Gasket. For use with Rigid/IMC Conduit.
2 inch Threaded D-Pak Die Cast Aluminum Conduit Body, T-Style, Cover & Gasket. For use with Rigid/IMC Conduit.

DAT-6-CG

2 inch Threaded D-Pak Die Cast Aluminum Conduit Body, T-Style, Cover & Gasket. For use with Rigid/IMC Conduit.
1-1/2 inch Threaded D-Pak Die Cast Aluminum Conduit Body, T-Style, Cover & Gasket. For use with Rigid/IMC Conduit.

DAT-5-CG

1-1/2 inch Threaded D-Pak Die Cast Aluminum Conduit Body, T-Style, Cover & Gasket. For use with Rigid/IMC Conduit.
