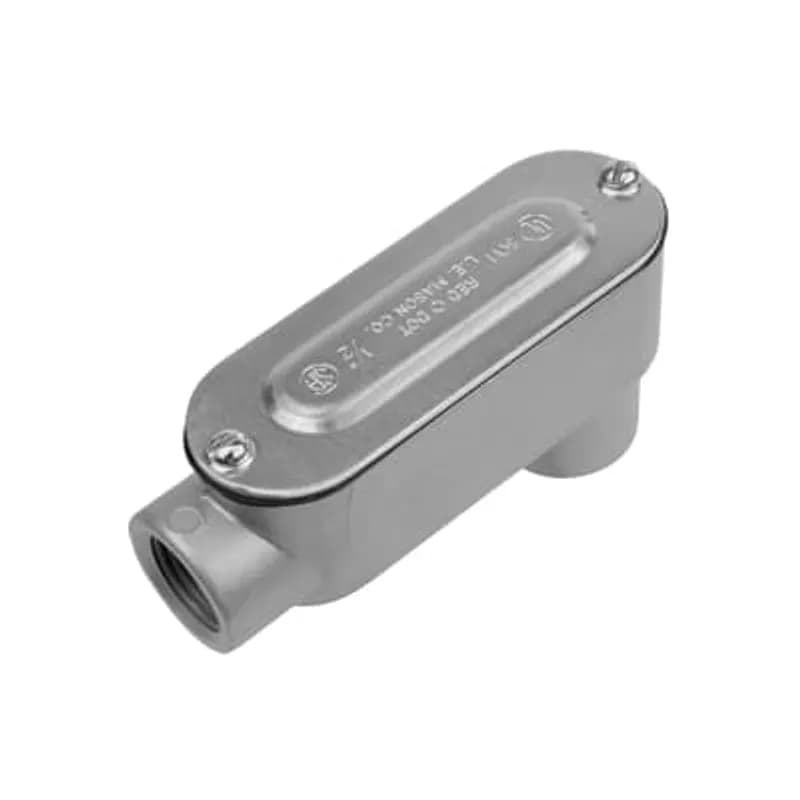

ABB - Installation Products DALB-7-CG - 2-1/2 inch Threaded D-Pak Die Cast Aluminum Conduit Body-Back Opening, Cover & Gasket. For use with Rigid/IMC Conduit.
ABB - Installation Products

DALB-7-CG

UPC: 042269004382

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Overview

The ABB DALB-7-CG is a 2-1/2 inch threaded D-Pak die cast aluminum conduit body designed for Rigid and Intermediate Metal Conduit (IMC) systems. This conduit body features a back opening configuration with a removable cover and integrated gasket, providing secure access points for wire pulls and junction connections in industrial and commercial installations. The die cast aluminum construction ensures corrosion resistance and long-term durability in demanding environments, while the threaded design allows for quick and reliable assembly with standard conduit fittings. The included gasket ensures a watertight seal, protecting against moisture and contaminants. This product is ideal for applications requiring frequent access for maintenance or modifications, such as manufacturing facilities, power distribution systems, and infrastructure projects. The DALB-7-CG is manufactured by ABB Installation Products, a trusted name in electrical infrastructure solutions. Compatible with Rigid/IMC conduit sizes up to 2-1/2 inches, this conduit body meets industry standards for electrical safety and performance.
  • 2-1/2 inch threaded D-Pak design for Rigid/IMC conduit compatibility
  • Back opening configuration with removable cover and integrated gasket
  • Die cast aluminum construction for corrosion resistance and durability
  • Threaded design enables quick and secure assembly with conduit fittings
  • Watertight seal provided by integrated gasket for moisture protection

Specifications

Application
For Use with Rigid/IMC Conduit
Hub Size
2-1/2
Material
Aluminum
Material Quality
Aluminum Die Cast
Mounting Type
Threaded
Size
2.5 Inches
Special Features
Combination Packaging of Conduit Body, Cover and Gasket Reduces Handling and Inventory Costs
Standard
UL E28688
Type
Conduit Body - Series A - Rigid/IMC
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
4.1300 L
Package Weight (Metric)
1.8730 kg
