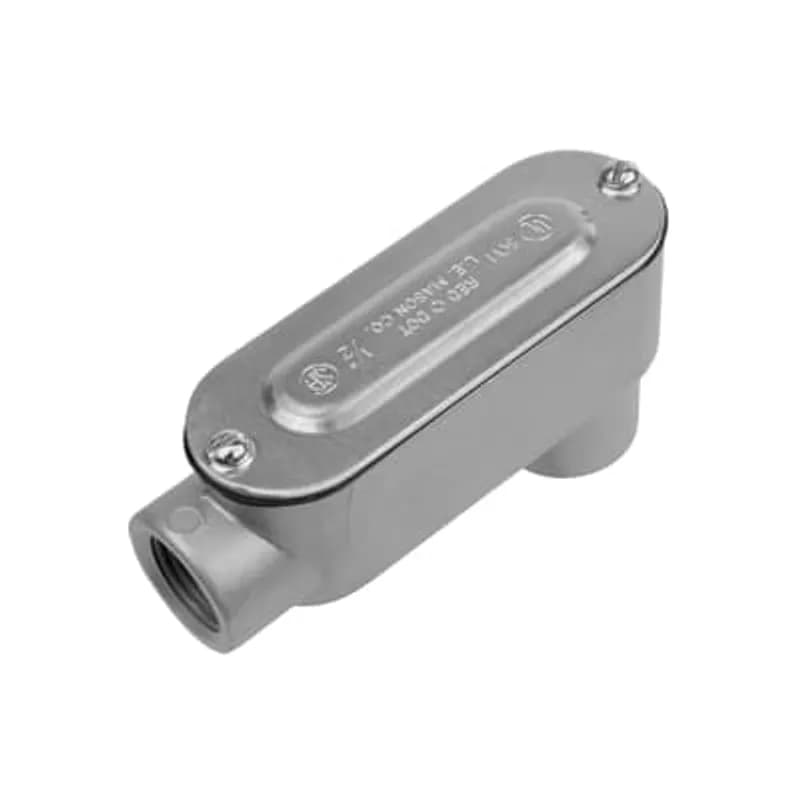

ABB - Installation Products DALB-1-CG - 1/2 inch Threaded D-Pak Die Cast Aluminum Conduit Body-Back Opening, Cover & Gasket. For use with Rigid/IMC Conduit.
ABB - Installation Products

DALB-1-CG

UPC: 042269810709

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Overview

The ABB DALB-1-CG is a 1/2 inch threaded D-Pak die-cast aluminum conduit body. This conduit body is specifically engineered for use with Rigid and IMC conduit systems. Its construction utilizes durable die-cast aluminum, a material chosen for its inherent strength and resistance to environmental factors, thereby offering robust protection for electrical wiring. The design features a back opening, a key characteristic that facilitates straightforward access during both the initial installation process and subsequent maintenance operations. Included with the DALB-1-CG are a cover and a gasket. These components work in conjunction to establish a secure and weather-resistant seal, safeguarding the conduit contents from external elements. The conduit body's compatibility extends to 1/2 inch Rigid and IMC conduit, making it a suitable choice for applications where durability and unwavering reliability are paramount, particularly in demanding environments. The threaded connection mechanism of the DALB-1-CG is designed to ensure a tight and dependable joint. This tight connection is crucial for preventing the ingress of moisture and debris, which can compromise the integrity of the electrical system. As a member of the D-Pak series, this conduit body benefits from the reputation of this product line, which is recognized for its high-quality manufacturing standards and its capacity for a long service life. The DALB-1-CG is suitable for deployment in both indoor and outdoor settings, demonstrating its adaptability to a wide range of installation scenarios and its ability to meet the rigorous demands of contemporary electrical installations. The product is classified under the UNSPSC code 39131708, which categorizes it within the broader group of conduit bodies and fittings. This classification underscores its versatility and positions it as a practical selection for electrical contractors and engineers seeking reliable conduit solutions.
  • 1/2 inch threaded D-Pak conduit body for Rigid/IMC conduit
  • Die-cast aluminum construction for durability and corrosion resistance
  • Back-opening design with cover and gasket for secure sealing
  • Compatible with 1/2 inch Rigid and IMC conduit systems
  • Ideal for indoor and outdoor industrial/commercial applications

Specifications

Application
For Use with Rigid/IMC Conduit
Hub Size
1/2
Material Quality
Aluminum Die Cast
Special Features
Combination Packaging of Conduit Body, Cover and Gasket Reduces Handling and Inventory Costs
Standard
UL E28688
Type
Conduit Body - Series A - Rigid/IMC
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.2900 L
Package Weight (Metric)
0.1320 kg
PVC Coated Conduit Body, X Type, Form 7, Size 1-1/2 Inch/41 Metric, Iron,Dark Gray

X57-G1

PVC Coated Conduit Body, X Type, Form 7, Size 1-1/2 Inch/41 Metric, Iron,Dark Gray
Cover, Conduit Body, Steel, Size 1 1/4 - 1 1/2 Inch

SC-64

Cover, Conduit Body, Steel, Size 1 1/4 - 1 1/2 Inch
Wire Basket Trapeze Support Bracket can be used to support baskets ranging from 4" wide through 12". It comes in an electro zinc plated finish. It comes packaged in quantities of 50 pcs

PWBTSBEZ

Wire Basket Trapeze Support Bracket can be used to support baskets ranging from 4" wide through 12". It comes in an electro zinc plated finish. It comes packaged in quantities of 50 pcs

Frequently Asked Questions

What conduit types is the DALB-1-CG compatible with?

The DALB-1-CG is designed for use with 1/2 inch Rigid and IMC conduit systems.

What material is the conduit body made from?

The conduit body is made from die-cast aluminum, providing durability and corrosion resistance.

Does the DALB-1-CG include a cover and gasket?

Yes, the DALB-1-CG comes with a cover and gasket for secure sealing.

What is the size of the conduit body?

The conduit body is sized for 1/2 inch conduit.

Is the DALB-1-CG suitable for outdoor use?

Yes, the die-cast aluminum construction and secure sealing make it suitable for outdoor applications.
