Overview
- Designed for street lighting applications
- Accommodates conductor sizes AWG 14-6
- Includes line and load side housings
- Features metal fuse sockets
- Load side length: 3.54 inches, Line side length: 4.21 inches
Specifications
Application | Rated 600 Volts, 30 Amp Maximum, perfect for Heavy-Duty Applications |
Color | Black |
Connection Type | Screw Terminal |
Material | Copper |
Material | EPDM Rubber |
Poles | 2P |
Size | AWG Conductor Size #14-#6 |
Size | 3.54 inches (load side), 4.21 inches (line side) |
Special Features | Watertight and Easy to Install. Does not Require Tape, Compound or Heat Source for Fitting. Individual Fusing Enables Separation of Kit without De-Energizing Complete Circuit. Breakaway-Style Fuse Holder Eliminates Risk of Electrical Shock. Exposed Current-Carrying Components are all Contained in Load Side of Kit. Readily Identifiable Problem Area Simplifies Maintenance |

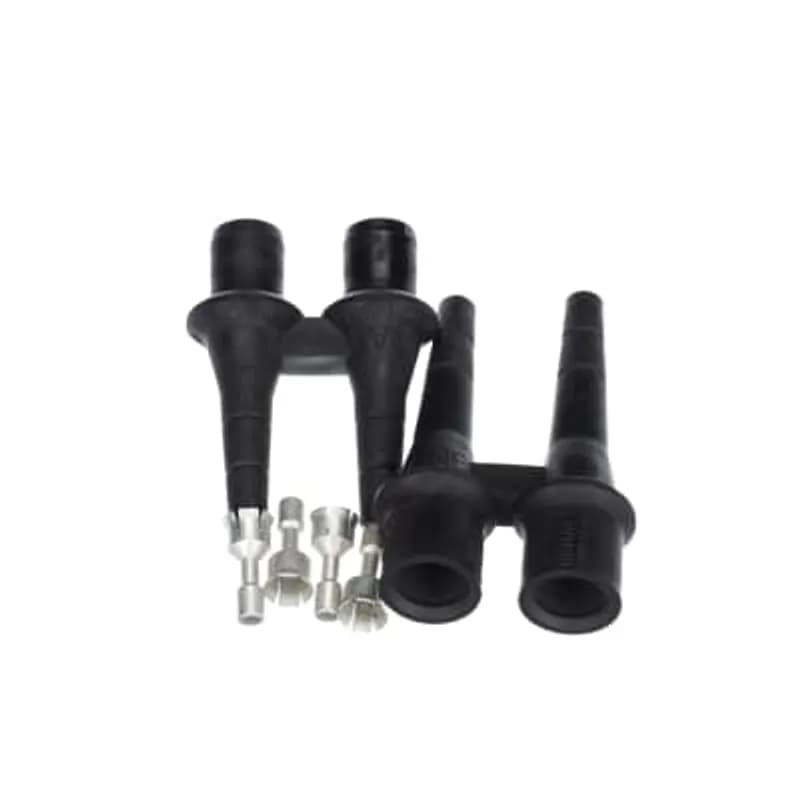

Type | Breakaway Street Light Kit. Double-Pole In-Line |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.2500 L |
Package Weight (Metric) | 0.1130 kg |
USL30
Submersible Streetlight Connectors, width 3.6 inch, height with sleeve 3.1 inch, screw type slotted, ports 3
65U
Copper Breakaway Single Pole In-line Street Light Kits, conductor size AWG 14-6. Dimension length is of 3.54 inches on the load side and of 4.21 inches on the line side. Fuse not Included with kit - DO NOT use Glass Fuses. Kit includes Line and Load side Housings, Metal Fuse Sockets, Assembly Dowel, Lubricant, wiper and Installation Instructions.
65 U (C)
Copper Breakaway Single Pole In-line Street Light Kits, conductor size AWG 14-6. The dimension are length are 4.16 inches on the load side and of 4.09 inches on the line side. Fuse not Included with kit - DO NOT use Glass Fuses. Kit includes Line and Load side Housings, Metal Fuse Sockets, Assembly Dowel, Lubricant, wiper and Installation Instructions. Classic.
S211BRE
Round Standard Lamp Holder Cover, Diameter 4-1/8 Inches, Hub Size 1/2 Inch, Bronze, Aluminum, One Tapped Hole, with Gasket, Screws, and Plugs
S211E
Round Standard Lamp Holder Cover, 4-1/8 Inch Diameter, Hub Size 1/2 Inch, Silver, Aluminum, One Tapped Hole
VAG-01-C
Ceiling Mount with Adapter Plate and Globe, Aluminum, 100 Watt Maximum, Sockets with Leads, Gasket, Screws, and Cast GuardFrequently Asked Questions
What conductor sizes does the D65U kit support?
The ABB D65U kit is designed to accommodate conductor sizes ranging from AWG 14 to AWG 6.
What components are included in the D65U kit?
The kit includes line and load side housings, metal fuse sockets, an assembly dowel, lubricant, a wiper, and installation instructions.
Are fuses included with the D65U street light kit?
No, fuses are not included with the D65U kit. Users must procure fuses separately and must not use glass fuses.
What are the dimensions of the D65U housings?
The load side housing has a length of 3.54 inches, and the line side housing has a length of 4.21 inches.
What is the manufacturer of the D65U street light kit?
The D65U street light kit is manufactured by ABB - Installation Products.
How to Install the D65U Street Lighting Kit Inline Fuse/Disconnect
This guide provides step-by-step instructions for installing and wiring the D65U Street Lighting Kit, including the inline fuse/disconnect, ensuring proper and safe setup. WARNING: Disconnect power before installation. Installation must be performed by a qualified electrician and identify LINE/LOAD sides.
Estimated time: 45m
Tools needed:
Crimp tool, Wire strippers, Wood dowel
Supplies needed:
Load side (plug) housing, Line side (receptacle) housing, Fuse holder, Fuse (13/32" by 1 1/2", 600V 30A max, non-glass), Lubricant, Connecting link (SDK only)
- Prepare Load Side Housing
Measure the cable diameter. Refer to Table 1 in the documentation to select the corresponding section on the molded sleeve of the load side (plug) housing. Cut off the remaining sections of the housing to match the size referenced in the Range column for your cable's outside diameter.
- Prepare Load Side Cable
Thoroughly clean approximately 8 inches along the load side cable end. Apply lubricant and insert the cable through the small hole in the load side (plug) housing. Push the cable through a sufficient distance to permit 3/8 inch stripping of insulation. Strip 3/8 inch of insulation from the cable end.
- Crimp Load Side Cable to Fuse Holder
Insert the stripped load side cable into the crimp barrel of the fuse holder. Crimp the cable securely using the recommended tool and die as specified in Table 2 of the documentation.
- Secure Fuse Holder in Load Side Housing
Apply lubricant lightly to the outside of the fuse holder. Place the wood dowel into the fuse holder's socket and position the free end of the dowel against a firm surface. Push the load side (plug) housing forward until the fuse holder snaps into its locked position. Wipe off any excess lubricant.
- Prepare Line Side Housing and Cable
Repeat all the above steps (Steps 1 through 4) for the line side (receptacle) housing and cable. Ensure proper identification of the line side wiring and connector body before beginning this process.
- Install Fuse or Connecting Link
Insert a 13/32 inch by 1 1/2 inch fuse (600 Volt, 30 Amp maximum) or the connecting link (if using the SDK kit) into the plug (load side) housing. WARNING: DO NOT use a glass body fuse.
- Connect Housings
Connect the load side (plug) housing and the line side (receptacle) housing together, ensuring a secure connection.
