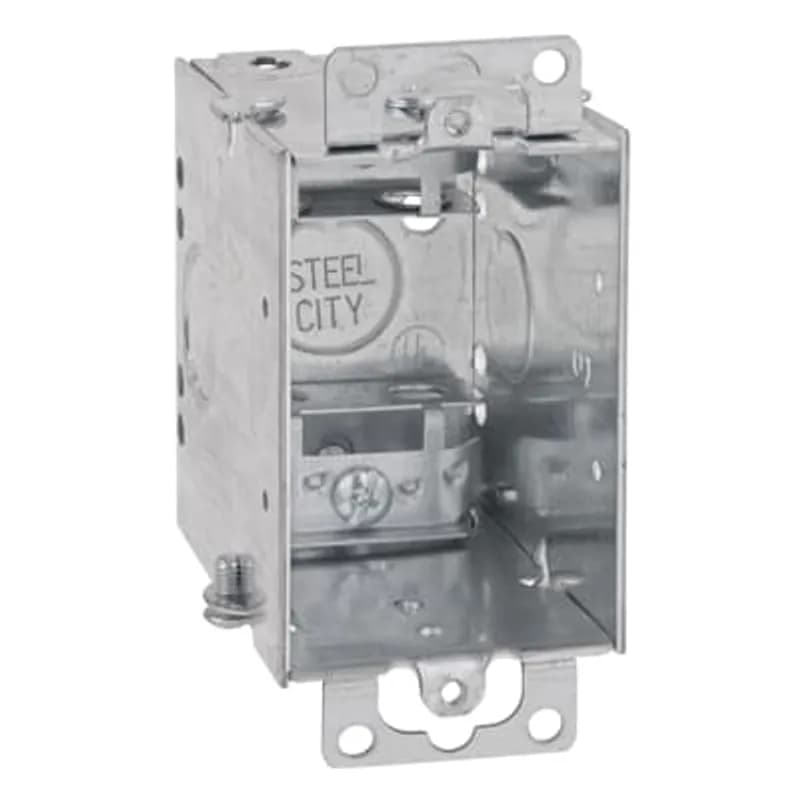

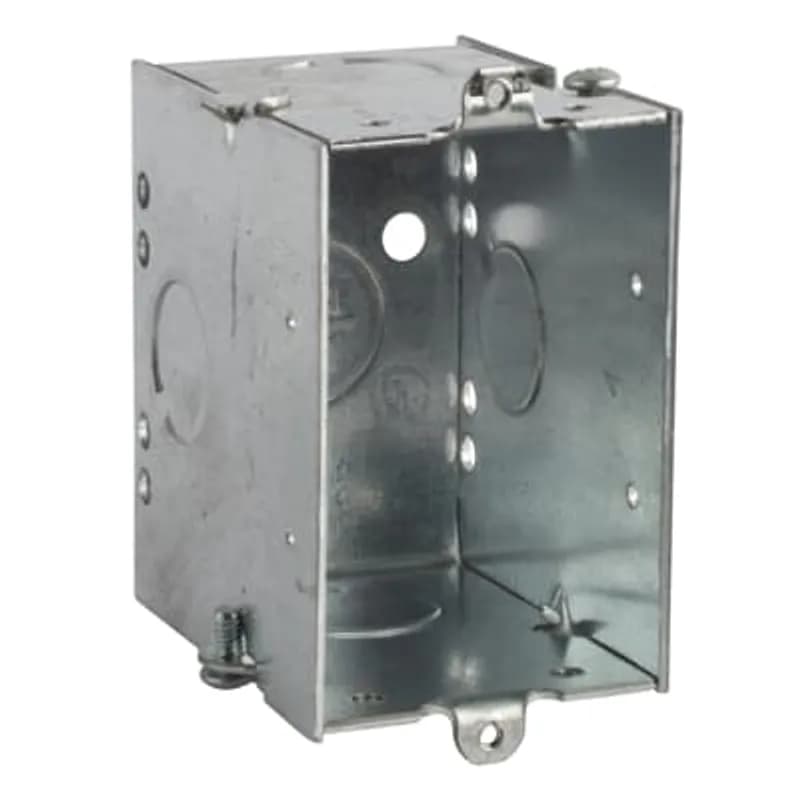

ABB - Installation Products CWXV-25L - Gangable Switch Box, 14 Cubic Inches, 3 Inches Long x 2 Inches Wide x 2-3/4 Inches Deep, 1/2 Inch Knockouts, Pre-Galvanized Steel, Armored Cable Clamps (C-3) and CV Bracket Recessed 1/2 Inch, For use with Armored/Metal Clad Cable, pack of 25, custom package

ABB Installation Products CWXV-25L Gangable Switch Box, 14 Cubic Inches, 3 Inches Long x 2 Inches Wide x 2-3/4 Inches Deep…

UPC: 785991054231

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB CWXV-25L Gangable Switch Box (SKU: CWXV-25L) is a pre-galvanized steel electrical enclosure engineered for armored or metal-clad cable installations in industrial and commercial environments. This compact, 14 cubic inch switch box measures 3 inches long x 2 inches wide x 2-3/4 inches deep, making it ideal for space-constrained applications where efficient cable management is critical. The box features 1/2-inch knockouts for flexible conduit entry and is supplied with armored cable clamps (C-3) and a CV bracket recessed 1/2 inch for secure cable retention. Its gangable design allows for seamless expansion in multi-gang configurations, providing versatility for evolving electrical system requirements. Constructed from durable pre-galvanized steel, the CWXV-25L offers superior corrosion resistance and long-term reliability in demanding installations. The switch box is specifically designed for use with armored or metal-clad cable, ensuring compliance with NEC and industry standards for electrical safety. Packaged in a custom bundle of 25 units, this cost-effective solution streamlines procurement for large-scale projects, reducing per-unit costs while maintaining ABB’s renowned quality and performance. Whether for new construction, retrofits, or maintenance work, the CWXV-25L delivers a robust, code-compliant housing for electrical components in commercial buildings, industrial facilities, or utility installations.
  • 14 cubic inch capacity for compact electrical enclosures
  • Pre-galvanized steel construction for corrosion resistance
  • 1/2-inch knockouts for flexible conduit entry
  • Includes armored cable clamps (C-3) and recessed CV bracket
  • Gangable design for multi-gang expansion in installations
  • Dimensions: 3" L x 2" W x 2-3/4" D
  • Packaged in bulk (25 units) for cost-effective procurement

Specifications

Application
For use with armored/metal clad cable
Color
Silver
Cubic Capacity
14 cu in
Material
Steel
Number Of Outlet
1
Size
3 Inches Height x 2 Inches Width x 2-3/4 inches depth
Standard
UL E2969
Standard
UL E2969 / UL E2969
Type
Switch Boxes
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.760 L
Package Weight (Metric)
0.345 kg
