ABB - Installation Products CTL500-58 - Copper One-Hole Lug, Short Barrel, Max 35kV, 500 kcmil Wire, 5/8 Bolt Size, Tin Plated, Die Color Code Brown
ABB - Installation Products

CTL500-58

UPC: 783786131150

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Overview

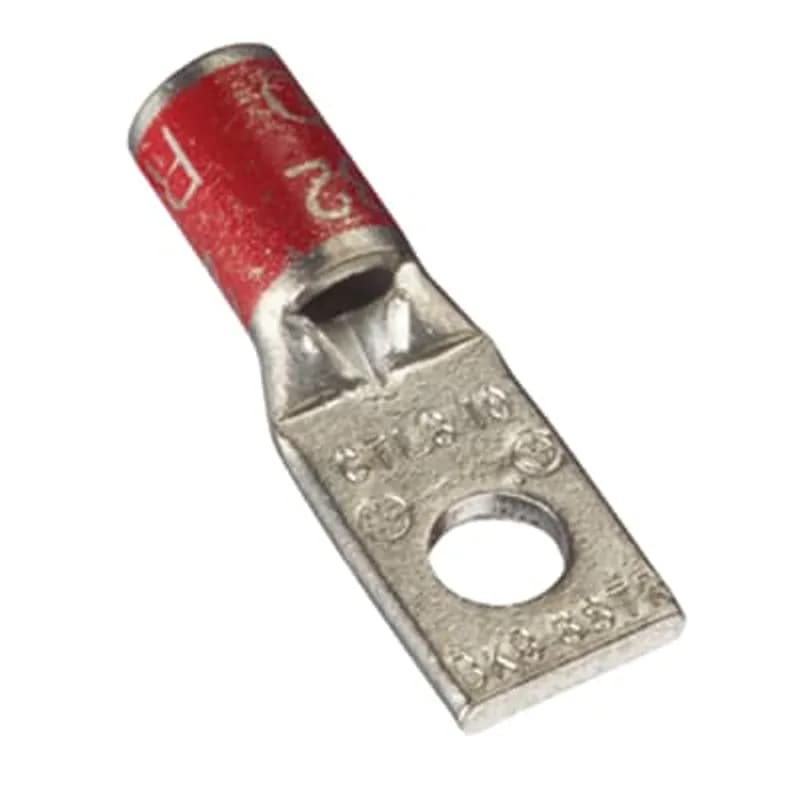

The ABB CTL500-58 is a high-quality copper one-hole lug designed for reliable electrical connections. Manufactured by ABB Installation Products, this lug features a short barrel construction, making it suitable for applications where space is a consideration. It is rated for a maximum voltage of 35kV, ensuring its suitability for medium-voltage power distribution and industrial systems. The lug is engineered to accommodate 500 kcmil wire, providing a robust termination point for large conductors. Its 5/8" bolt size offers a secure and stable connection. The tin plating enhances conductivity and provides excellent corrosion resistance, crucial for long-term performance in various environmental conditions. Identified by the die color code Brown, this lug ensures proper tooling compatibility for crimping, facilitating efficient and accurate installation. The CTL500-58 is an essential component for electrical contractors, utility companies, and industrial maintenance professionals requiring dependable and durable lug connections for their critical infrastructure. Its construction from copper ensures excellent electrical conductivity and mechanical strength, vital for minimizing resistance and ensuring the integrity of the electrical circuit.
  • Copper one-hole lug for reliable electrical connections
  • Short barrel design for space-efficient installations
  • Rated for maximum 35kV applications
  • Accommodates 500 kcmil wire size
  • 5/8" bolt size for secure termination, tin plated for corrosion resistance

Specifications

Cable Size
500 kcmil
Color
Brown
Connection Type
One-Hole Lug
Material
Copper
Number Of Holes
1
Series
CTL
Size
500 kcmil
Special Features
Made of high-conductivity seamless copper tubing. Tin plated for corrosion resistance
Standard
UL E9809
Stud Size
5/8 in
Type
Standard Barrel
Voltage Rating
35 kV
Package Dimensions (L x W x H)
4.5 IN x 3.2 IN x 4.3 IN
Package Dimensions (L x W x H)
11.43 cm x 8.128 cm x 10.922 cm
Package Weight (Imperial)
0.4000 L
Package Weight (Metric)
0.1810 kg
