UPC: 786210868110
Contact for Pricing
Overview

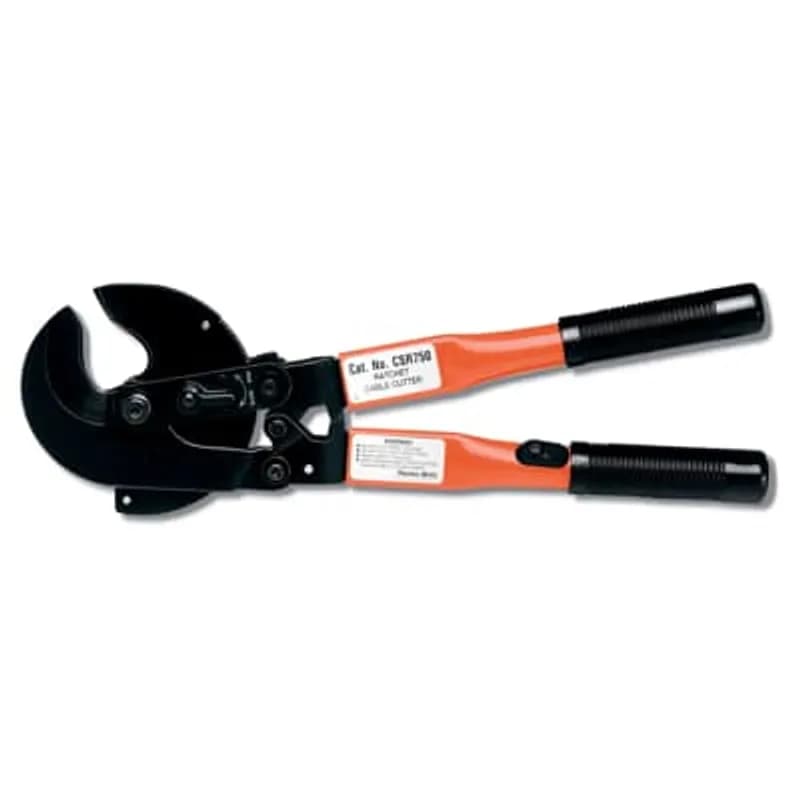

- Cuts copper or aluminum cables up to 750 kcmil
- Durable steel construction for strength and longevity
- Designed for industrial electrical installations and maintenance
- Provides clean, precise cuts for reliable terminations
- ABB - Installation Products, Model CSR750
Specifications
Application | Cutting copper and aluminum cables |
Handle Type | Palm Grip |
Special Features | Special advance stroke mechanism requires less handle force. Short handles (only 10" long) enable use in tight spaces |
Type | Wire Cutter |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 3.8800 L |
Package Weight (Metric) | 1.7600 kg |
L70P-56GS
Copper Mechanical Lug with 5/16 Inch Bolt Hole, Wire Range 14-4 AWG, Green Slotted Screw, Tin Plated, 600 Volts, 100 Minimun
H1121001401-000
1 Position, Connector Assembly, 1500 VDC, 70 mm² Wire, Cable-to-Panel, Sealable, Wire & Cable, Plug, Socket, Power, Black, All Plastic, Nylon 66 GF
11101CUSTOM
A lanyard with custom logo printing available. It is made of nylon and is red in color. The lanyard is 3/4 in. wide and includes a badge holder.
P32F10G
The Panduit™ G6 Monitored Per Outlet PDU features (24) C13 and (8) C19 outlets. It is a 32 amp, 230 V, single phase PDU with an IEC 60309 2P+E 6h 32A (IP44) input plug and a 10 foot (3m) power cord. The PDU is black.Frequently Asked Questions
What is the motor voltage for the CSR750C Cable Cutter?
The motor voltage for the CSR750C Cable Cutter is 18V DC.
What materials can the CSR750C cut?
The CSR750C battery-powered cutter can cut up to 750 kcmil copper, 750 kcmil aluminum, and 477 kcmil ACSR.
What materials can the CSR750 cut?
The CSR750 battery-powered cutter can cut up to 1500 kcmil copper and 750 kcmil aluminum. It is not for use on ACSR.
What is the battery voltage for these cutters?
The battery voltage for the CSR750 and CSR750C cutters is 18V DC.
What is the input voltage for the battery charger?
The battery charger requires a 120V AC single phase input voltage.
What is the weight of the battery cartridge?
The battery cartridge weighs 1.8 lbs.
What are the dimensions of the battery cartridge?
The battery cartridge dimensions are 3.3 in x 3.8 in x 1.3 in.
What are the dimensions of the battery charger?
The battery charger dimensions are 8.3 in x 3.8 in x 3.1 in.
What is the weight of the battery charger?
The battery charger weighs 2 lbs.
What is the maximum cable size for the CSR750C Cable Cutter?
The CSR750C Cable Cutter can cut copper or aluminum cables up to 750 kcmil.
How to Operate and Maintain the CSR750 Ratchet Cable Cutter
This guide provides instructions for the safe operation, routine maintenance, and sharpening of the CSR750 Ratchet Cable Cutter, designed for cables up to 750 MCM with a maximum O.D. of 1.25 inches.
Estimated time: 30m
Tools needed:
Safety goggles, Stone or very fine file, Torque wrench
Supplies needed:
Oil, Grit cleaner
- Observe Safety Warnings
Before operating, wear safety goggles. Keep fingers and other body parts away from the cutting blade and closure points. Never cut steel, ACSR, or live conductors to prevent injury and damage to the tool.
- Prepare the Blades for Cutting
Turn the direction knob (A) to the desired position to either open or close the blades. For rapid blade movement, push and hold the fast action thumb slide (B) forward while moving the handles. This permits handles to open farther for faster blade movement.
- Perform the Cable Cut
Once the blades are positioned around the cable, move the handles open and closed. The blade will ratchet as indicated by the direction knob (A) to cut the cable. Be aware that using the fast action mode for cutting will reduce leverage and require greater force.
- Clean and Lubricate Blades
After use, keep the blades clean and regularly oiled to ensure smooth operation and longevity. Clean off any grit or debris from the blades.
- Periodically Tighten Fasteners
Periodically check and tighten the fulcrum nut to 220-250 in. lb. torque and the handle bolts to 30-50 in. lb. torque to maintain tool integrity and prevent loosening during operation.
- Sharpen Blades (If Necessary)
If blades become dull, sharpen them by stoning the wiping surface flat near the edge. Next, stone the existing 35º angle to remove nicks. Then, stone very lightly on a 45º angle to remove burrs. Finally, clean blades of any grit.
