ABB - Installation Products CSP2 - Type CSP Copper Splice, Short Barrel, Max 35kV, Wire Size 3-2 Str, Tin Plated, Die Color Code Brown

ABB Installation Products CSP2 Type CSP Copper Splice, Short Barrel, Max 35kV, Wire Size 3-2 Str, Tin Plated, Die Color…

UPC: 783786132065

Documents & Media
Specification SheetVideo ClipManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

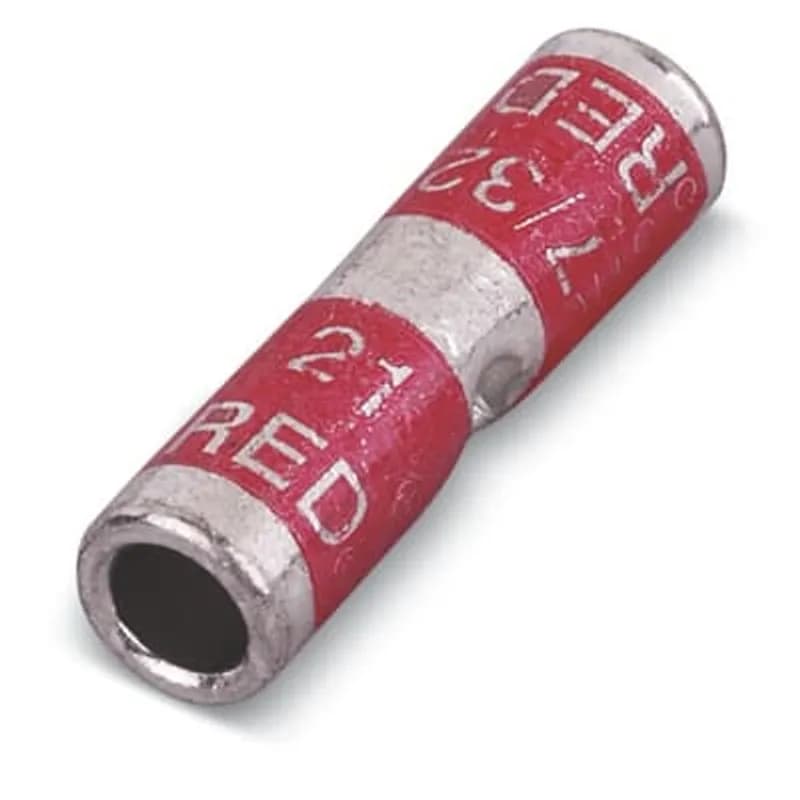

The ABB CSP2 Type CSP Copper Splice is a short-barrel compression connector designed for regular-duty applications in industrial and building environments. Constructed from high-conductivity seamless copper tubing, this splice offers excellent conductivity and durability. Its tin-plated finish provides enhanced corrosion resistance, ensuring long-term performance. The specially chamfered barrel facilitates easier installation, while the brown die color code ensures accurate tool selection for reliable crimping. This splice is suitable for copper conductors ranging from 3 AWG to 2 AWG stranded wire, including flexible cable, welding cable, and portable cord. It can be utilized in high-voltage applications up to 35kV when appropriate high-voltage insulation techniques are applied. The compact 1¼-inch length makes it ideal for installations in confined spaces. The CSP2 is UL® Listed for AWG conductors when installed with Blackburn®, Burndy®, T&B®, or Anderson tools and complies with Subpart 111.60-17 of the Federal Register's Coast Guard Electrical Engineering Rules and Regulations. Manufacturer: ABB - Installation Products. SKU: CSP2.
  • Designed for regular-duty applications in industrial and building settings.
  • Constructed from high-conductivity seamless copper tubing with a tin-plated finish for corrosion resistance.
  • Accommodates stranded copper conductor sizes from 3 AWG to 2 AWG.
  • Suitable for high-voltage applications up to 35kV with proper insulation techniques.
  • Features a short barrel (1¼ inch) ideal for confined spaces and a chamfered entry for easy installation.

Specifications

Application
For use on aluminum conductors
Color
Brown
Conductor Range
3-2 Str
Connection Type
Compression Splice
Connection Type
Crimp Splice
Finish
Tin Plated
Material
Copper
Material
Copper, Tin Plated
Series
CSP
Size
3-2 AWG
Special Features
Made of high-conductivity seamless copper tubing. Tin plated for corrosion resistance
Standard
UL E9809
Type
Short Barrel Copper Splice
Voltage Rating
35 kV
Package Dimensions (L x W x H)
3.3 IN x 2.8 IN x 2.3 IN
Package Dimensions (L x W x H)
8.382 cm x 7.112 cm x 5.842 cm
Package Weight (Imperial)
0.0300 L
Package Weight (Metric)
0.0140 kg
StandardBarrel TinnedCopperSplice500MCM Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

SC-500

StandardBarrel TinnedCopperSplice500MCM Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
The SCS2-Q Copper Compression Lug Lug, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90 C.

SCS2-Q

The SCS2-Q Copper Compression Lug Lug, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90 C.
Copper Two-Way Splice, Long Barrel, Max 35kV, Wire Size 500 kcmil, Die Set 15CA87R, Die Color Code Brown

54018

Copper Two-Way Splice, Long Barrel, Max 35kV, Wire Size 500 kcmil, Die Set 15CA87R, Die Color Code Brown
Type ASR-ALCUL Splice Reducer with Solid Barrier Wire Stop for Conductor Range Max 250 kcmil, Min 6 Str.

ASR2506

Type ASR-ALCUL Splice Reducer with Solid Barrier Wire Stop for Conductor Range Max 250 kcmil, Min 6 Str.
Type ASR-ALCUL Splice Reducer with Solid Barrier Wire Stop for Conductor Range Max 750 kcmil, Min 250 kcmil

ASR7525

Type ASR-ALCUL Splice Reducer with Solid Barrier Wire Stop for Conductor Range Max 750 kcmil, Min 250 kcmil
Type ASR-ALCUL Splice Reducer with Solid Barrier Wire Stop for Conductor Range Max 1/0 Str., Min 14 AWG

ASR1114

Type ASR-ALCUL Splice Reducer with Solid Barrier Wire Stop for Conductor Range Max 1/0 Str., Min 14 AWG
ASR-ALCUL Splice Reducer with Solid Barrier Wire Stop for Conductor Range Max 350 kcmil, Min 6 Str, Dual Rated

ASR3506

ASR-ALCUL Splice Reducer with Solid Barrier Wire Stop for Conductor Range Max 350 kcmil, Min 6 Str, Dual Rated
Type CSP Copper Splice, Short Barrel, Max 35kV, Wire Size 2/0 Str, Tin Plated, Die Color Code Black

CSP20

Type CSP Copper Splice, Short Barrel, Max 35kV, Wire Size 2/0 Str, Tin Plated, Die Color Code Black
