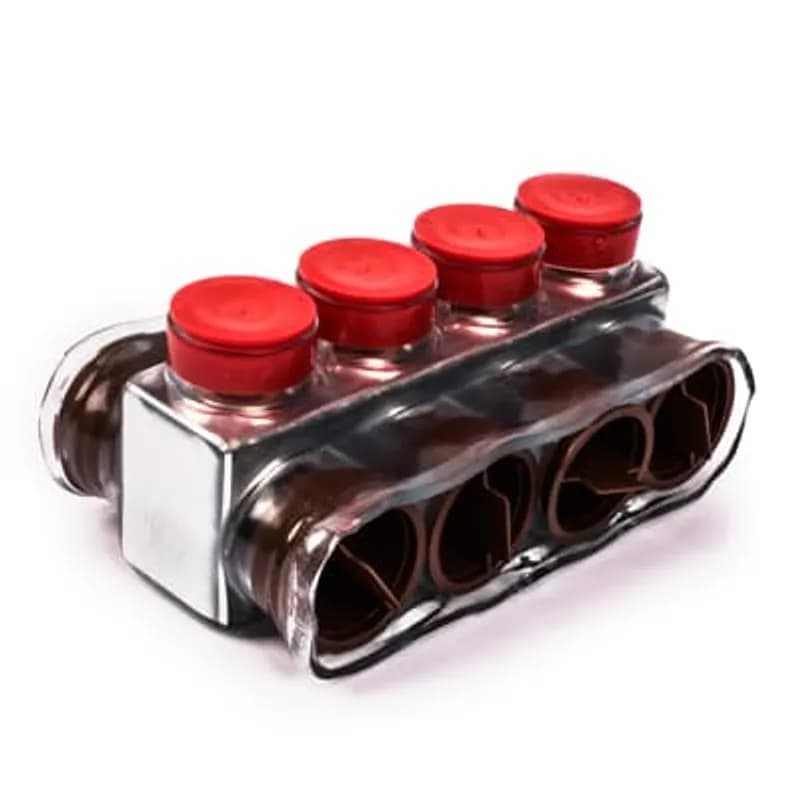

ABB Installation Products CSB 750-4 Aluminum Multi-Tap Encapsulated Cable Blocks, Two-Way Configuration, Wire Range 750-1/0…
UPC: 783786715114
Documents & Media
Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Aluminum construction for durability and conductivity
- Two-way configuration with 4 outlets
- Accommodates wire range from 750 kcmil to 1/0 AWG
- Clear insulation for visual inspection
- Compact dimensions: 5.81" L x 3.13" W x 2.38" H
Specifications
Color | Clear |
Connection Type | Multi-Tap Encapsulated |
Material | Aluminum |
Poles | 4 |
Series | CSB |
Size | 5.81 Inches (Length) x 3.13 Inches (Width) x 2.38 Inches (Height) |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.3800 L |
Package Weight (Metric) | 0.6260 kg |
IPCS7501
Insulation Piercing Connector 750 MCM - 3/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.
54740TP
Copper C-Tap for 600V Applications, Wire Range Main: 2-1/0, Branch 2-12, Length 1-1/16 Inches, Height 31/32 Inch, Tin Plated, Die Code 50, Die Color Code Orange
CSB 750-6
Aluminum Multi-Tap Encapsulated Cable Blocks, Two-Way Configuration, Wire Range 750-1/0, Hex Size 3/8 Inch, Length 8.62 Inches, Width 3.13 Inches, Height 2.38 Inches, Outlets 6, Clear Insulation
CSB 750-3
Aluminum Multi-Tap Encapsulated Cable Blocks, Two-Way Configuration, Wire Range 750-1/0, Hex Size 3/8 Inch, Length 4.40 Inches, Width 3.13 Inches, Height 2.38 Inches, Outlets 3, Clear InsulationCSB 750-8
Aluminum Multi-Tap Encapsulated Cable Blocks, Two-Way Configuration, Wire Range 750-1/0 kcmil, Hex Size 3/8 Inch, Length 11.44 Inches, Width 3.13 Inches, Height 2.38 Inches, Outlets 8, Clear InsulationCSB 750-7
Aluminum Multi-Tap Encapsulated Cable Blocks, Two-Way Configuration, Wire Range 750-1/0, Hex Size 3/8 Inch, Length 10.03 Inches, Width 3.13 Inches, Height 2.38 Inches, Outlets 7, Clear Insulation
CSB 2/0-6 S
Aluminum Multi-Tap Encapsulated Cable Blocks, One-Way Configuration, Wire Range 2/0-14 Str, Hex Size 3/16 Inch, Length 4.53 Inches, Width 1.50 Inches, Height 1.63 Inches, Outlets 6, Clear Insulation
CSB 250-2-3R
Aluminum Multi-tap Encapsulated Cable Blocks - Two-Way Configuration, Wire Range 250-6, Screw Size 5/16 Hex, Length 1-7/8 Inch, Width 2-5/8 Inch, Height 2-1/8 Inches, Outlets 2, Quantity 3Frequently Asked Questions
What is the black insulation part number for CSB 750-4?
The black insulation part number for the CSB 750-4 is AMTD 7502504.
What is the clear insulation part number for CSB 750-4?
The clear insulation part number for the CSB 750-4 is CSB 750-4.
What type of screw does the CSB 750-4 use?
The CSB 750-4 utilizes a 3/8 Hex type screw for connections.
What are the dimensions of the CSB 750-4 cable block?
The CSB 750-4 cable block has a length of 5.81 in, a width of 3.13 in, and a height of 2.38 in.
What is the wire range for the CSB 750-4 connector?
The CSB 750-4 connector is designed for a wire range of 750–250 kcmil stranded conductors.
What is the clear insulation part number for CSB 750-4?
The clear insulation part number for the CSB 750-4 is CSB 750-4.
What is the wire range for the CSB 750-4 connector?
The CSB 750-4 connector is designed for a wire range of 750–250 kcmil stranded conductors.
What is the black insulation part number for CSB 750-4?
The black insulation part number for the CSB 750-4 is AMTD 7502504.
What type of screw does the CSB 750-4 use?
The CSB 750-4 utilizes a 3/8 Hex type screw for connections.
What are the dimensions of the CSB 750-4 cable block?
The CSB 750-4 cable block has a length of 5.81 in, a width of 3.13 in, and a height of 2.38 in.
