ABB - Installation Products CLR 6350 - Insulated Aluminum Pedestal Connectors, wire range 12-350, outlets 6

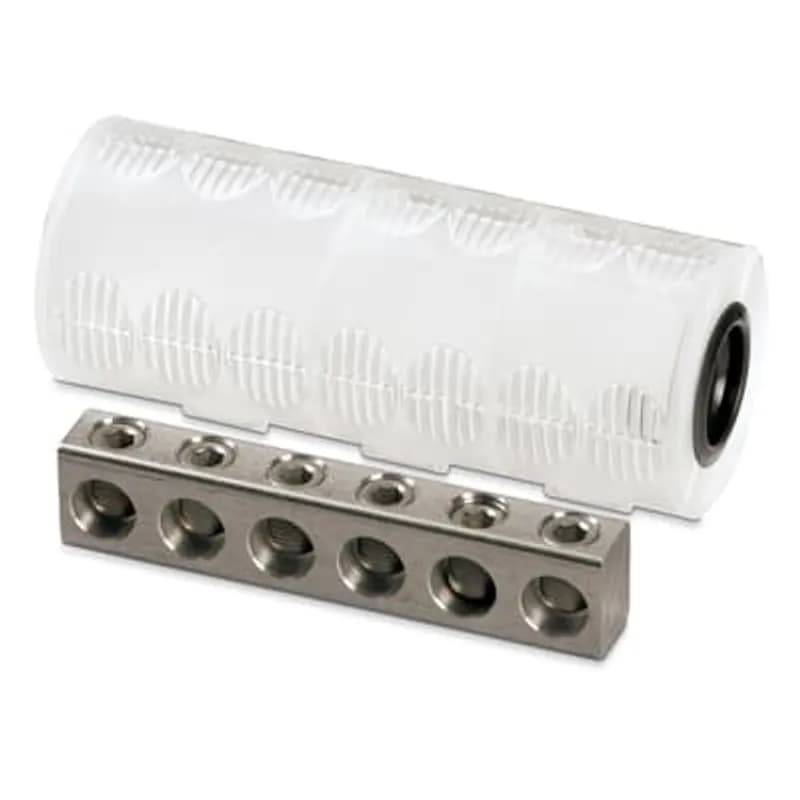

ABB Installation Products CLR 6350 Insulated Aluminum Pedestal Connectors, wire range 12-350, outlets 6

UPC: 783786713592

Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Minimum Qty: 144

Multiplier: 144

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB CLR 6350 Insulated Aluminum Pedestal Connector (SKU: CLR 6350) is designed for reliable electrical connections in industrial applications. Manufactured by ABB - Installation Products, this connector is constructed from durable aluminum, ensuring longevity and performance. It supports a wide conductor range from 12 to 350 AWG, providing flexibility for various wiring needs. The CLR 6350 features six distinct outlets, allowing for multiple connections from a single point. This product falls under the UNSPSC code 39121447, indicating its classification within electrical distribution and connection equipment. Its robust design makes it suitable for environments where secure and efficient electrical distribution is paramount. The series designation, CLR, signifies its place within ABB's specialized connector offerings. This pedestal connector is engineered to facilitate straightforward and dependable electrical infrastructure, supporting the power distribution requirements of industrial facilities. Its material composition of aluminum contributes to its conductivity and resistance to environmental factors, making it a practical choice for demanding operational settings.
  • Constructed from durable aluminum for reliable performance.
  • Accommodates a wide conductor range from 12 to 350 AWG.
  • Features six individual outlets for multiple connections.
  • Insulated design enhances safety during installation and operation.
  • Manufactured by ABB - Installation Products for quality assurance.

Specifications

Color
Transparent
Insulation
Yes
Material
PVC
Mounting
Pedestal
Special Features
Connector and Cable Outlets. Safer Connections - the connector securely locks in cover while the cable outlets self adjust. Integral Wrench Outlet Covers - No lost parts to worry about
Type
Insulated Aluminum Pedestal
Wire Size
#12 to 350 kcmil
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
Vinyl Insulated Coupler, Length 2.35 Inches, Width .51 Inches, Tab Size .250x.032, Brass

RB14-250

Vinyl Insulated Coupler, Length 2.35 Inches, Width .51 Inches, Tab Size .250x.032, Brass
Spade Connector, #22-#18 wire size, #10 stud size, Vinyl, Red, Yellow, Blue, 100 per pack

MWSC221810

Spade Connector, #22-#18 wire size, #10 stud size, Vinyl, Red, Yellow, Blue, 100 per pack
Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 12-350, length 6 inch, boot no. BB 11, outlets 6, Oxide Inhibitor, with Insulated PVC BB Series Cover Color Black

ABC 6350 C BB 12BLK

Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 12-350, length 6 inch, boot no. BB 11, outlets 6, Oxide Inhibitor, with Insulated PVC BB Series Cover Color Black
Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 12-350, length 6 inch, outlets 6, Oxide Inhibitor, Uses Boot number BB 11 - order separately.

ABC 6350 C

Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 12-350, length 6 inch, outlets 6, Oxide Inhibitor, Uses Boot number BB 11 - order separately.
Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 1/0-750, length 8-3/8 inch, outlets 6, Oxide Inhibitor, Uses Boot number BB 14 - order separately.

ABC 6750 C

Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 1/0-750, length 8-3/8 inch, outlets 6, Oxide Inhibitor, Uses Boot number BB 14 - order separately.
Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 12-350, length 6 inch, boot no. BB 12 (Yellow), outlets 6, Oxide Inhibitor, with Insulated PVC BB Series Cover Color Yellow

ABC 6350 C BB 12YW

Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 12-350, length 6 inch, boot no. BB 12 (Yellow), outlets 6, Oxide Inhibitor, with Insulated PVC BB Series Cover Color Yellow
Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 6-500, length 6-1/16 inch, boot no. BB 12, outlets 6, Oxide Inhibitor, with Insulated PVC BB Series Cover Color Black

ABC 6500 C BB 12BLK

Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 6-500, length 6-1/16 inch, boot no. BB 12, outlets 6, Oxide Inhibitor, with Insulated PVC BB Series Cover Color Black
Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 6-500, length 8-1/16 inch, outlets 8, Oxide Inhibitor, Uses Boot number BB 14 - order separately.

ABC 8500 C

Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 6-500, length 8-1/16 inch, outlets 8, Oxide Inhibitor, Uses Boot number BB 14 - order separately.

Frequently Asked Questions

What is the wire range for the CLR 6350 connector?

The CLR 6350 connector supports a wire range from 12 to 350 AWG.

How many outlets does the ABB CLR 6350 have?

The ABB CLR 6350 pedestal connector is equipped with six outlets.

What material is the CLR 6350 connector made from?

The CLR 6350 connector is constructed from aluminum.

Who manufactures the CLR 6350 pedestal connector?

The CLR 6350 pedestal connector is manufactured by ABB - Installation Products.

How to Install the CLR 6350 Insulated Pedestal Connector

This guide provides step-by-step instructions for installing the CLR 6350 Insulated Pedestal Connector, including cable preparation, connector positioning, cable insertion, and proper tightening. Ensure installation is performed by trained professionals following all applicable electrical codes and safety rules.

Estimated time: 15m

Tools needed:

Hex wrench

Supplies needed:

CLR 6350 Insulated Pedestal Connector, Electrical cable

  1. Prepare the Cable

    Strip the electrical cable to a length of 1-1/4 inches to 1-1/2 inches (31.75mm to 38.1mm) to expose the conductor.

  2. Position the Connector

    Line up the screw ports of the CLR 6350 connector with the screws. Back out the first screw to properly position the insulator on the bar where it will be installed.

  3. Insert the Cable

    Push the stripped end of the cable through the cable port of the connector until the cable insulation is flush with the connector body.

  4. Secure the Cable

    Using a hex wrench, tighten the ball-bottom screw to secure the cable firmly within the connector. Apply torque according to the wire size: 120 in. lbs (10 ft. lbs) for #12 to #4 wire, or 240 in. lbs (20 ft. lbs) for #2 to 350 Kcmil wire.
