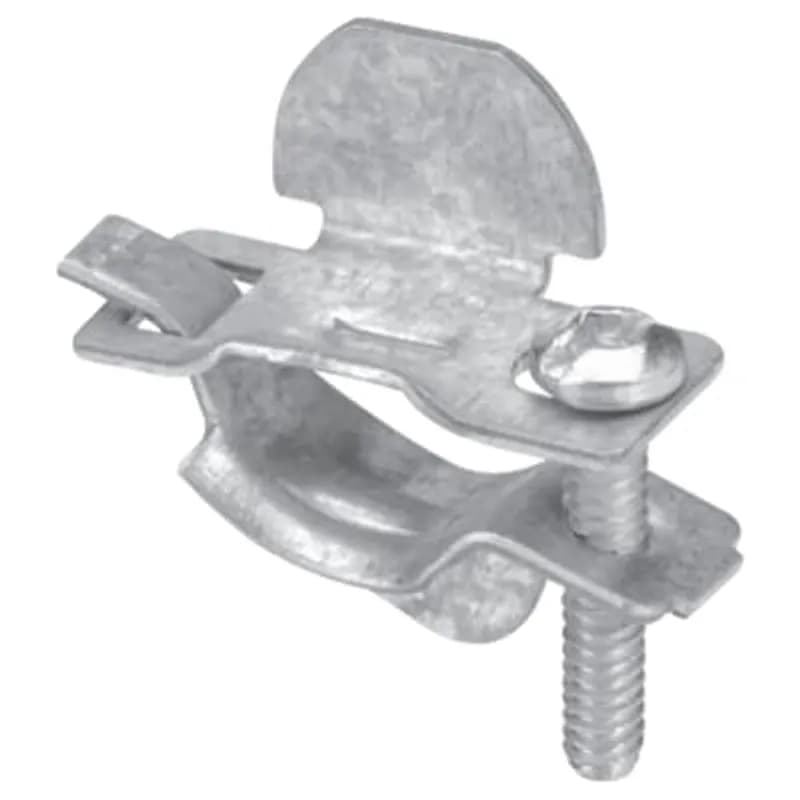

ABB - Installation Products CI9049 - Connector, One Screw, Trade Size 3/8 Inch, Clamping Range 0.13 Inch - 0.37 Inch, Steel, Suggested Application NMD90 14/2-10/2, 14/3-12/3
ABB - Installation Products

CI9049

UPC: 622538727039

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 1000

Multiplier: 1000

*Contact for lower quantities*

Overview

The ABB CI9049 connector is a single-screw, steel connector designed for secure wire termination. With a trade size of 3/8 inch, this connector offers a clamping range from 0.13 inch to 0.37 inch, accommodating a variety of cable sizes. Its robust steel construction ensures durability and reliable performance in electrical installations. This connector is specifically suggested for use with NMD90 cable types, including 14/2-10/2 and 14/3-12/3 configurations. The single-screw design simplifies installation, allowing for quick and efficient connections. The precise clamping range ensures a firm grip on the conductors, preventing loosening and maintaining electrical continuity. Key Specifications: - SKU: CI9049 - Manufacturer: ABB - Installation Products - Trade Size: 3/8 Inch - Clamping Range: 0.13 Inch - 0.37 Inch - Material: Steel - Suggested Application: NMD90 14/2-10/2, 14/3-12/3 This connector is a practical component for electrical contractors and installers requiring dependable termination solutions for residential and commercial wiring projects utilizing NMD90 cable.
  • Single-screw steel connector for secure wire termination.
  • 3/8 inch trade size with a 0.13 inch to 0.37 inch clamping range.
  • Constructed from durable steel for reliable performance.
  • Suggested for NMD90 cable types: 14/2-10/2 and 14/3-12/3.
  • Facilitates quick and efficient electrical connections.

Specifications

Application
For 14/2-10/2, 14/3-12/3
Material
Steel
Size
3/8 Inch
Standard
3313
Type
Nonmetallic Sheathed Cable
Package Dimensions (L x W x H)
6.4 IN x 5.4 IN x 4.6 IN
Package Dimensions (L x W x H)
16.256 cm x 13.716 cm x 11.684 cm
Package Weight (Imperial)
0.0400 L
Package Weight (Metric)
0.0180 kg
