ABB - Installation Products CHGUAX26SA - Aluminum, Conduit Outlet Box with Cover and 4 Openings Hub Size 3/4 Inch, Cover Opening Diameter 3 Inch
ABB - Installation Products

CHGUAX26SA

UPC: 786210061405

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

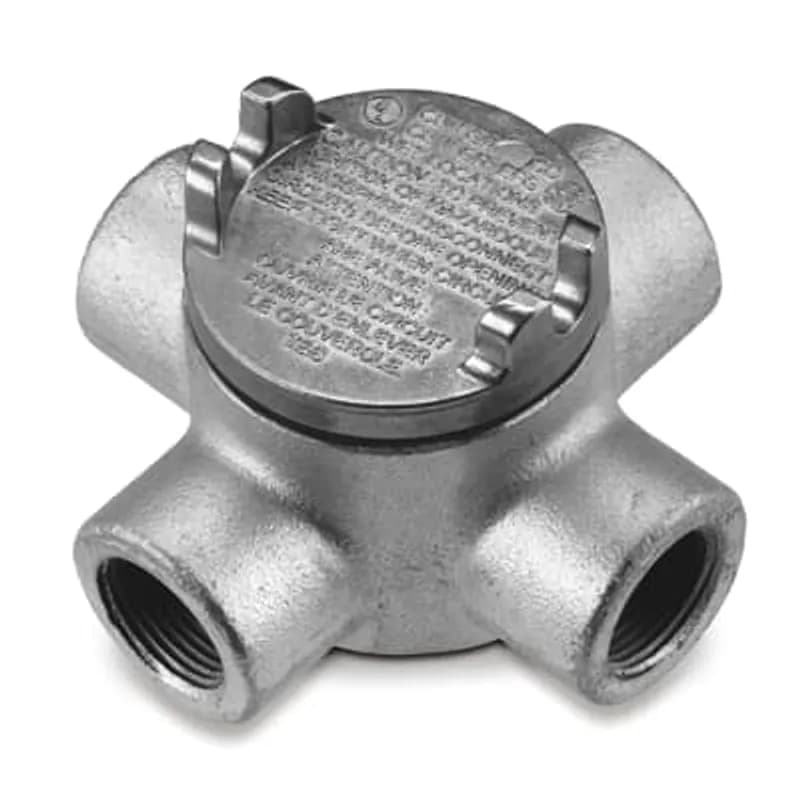

The ABB CHGUAX26SA is a corrosion-resistant aluminum conduit outlet box designed for industrial and commercial electrical installations. This box features four 3/4-inch conduit hub openings, allowing flexible cable routing for junction boxes, control panels, and distribution systems. The 3-inch cover opening provides direct access to internal wiring for inspection or modification without removing the entire enclosure. Constructed from durable aluminum, it resists corrosion in demanding environments, ensuring long-term protection for electrical connections. The included cover secures the enclosure while maintaining NEMA-rated protection when paired with compatible fittings. Compatible with standard 3/4-inch conduit fittings, this box meets industrial installation requirements for reliable cable management and component protection. Part of ABB’s Installation Products line, the CHGUAX26SA is manufactured in the US for consistent quality and performance.
  • 4x 3/4" conduit hub openings for flexible cable routing
  • 3" cover opening for easy access to internal wiring
  • Corrosion-resistant aluminum construction for long-term durability
  • Includes secure cover for NEMA-rated enclosure protection
  • Compatible with standard 3/4" conduit fittings

Specifications

Application
Protect Conductors in Threaded Rigid Conduit and Act as Pull and Splice Boxes
Hub Size
3/4
Material
Aluminum
Material Quality
Aluminum
Material Quality
Aluminium
Mounting Type
Conduit Fittings
Nema Rating
NEMA-rated
Series
CHGUA
Size
Hub Size 3/4 Inch, Cover Opening Diameter 3 Inch
Size
Hub Size: 3/4 Inch, Cover Opening Diameter: 3 Inch
Special Features
Cast Ears on Cover to Permit Easy Removal and Tightening
Standard
UL 1203, CSA
Type
Hazardous Location Fitting
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.6200 L
Package Weight (Metric)
0.7350 kg
PVC Coated Conduit Body, TB Type, Form 8, Size 3/4 Inch/21 Metric, Aluminum, Dark Gray

TB28-G1

PVC Coated Conduit Body, TB Type, Form 8, Size 3/4 Inch/21 Metric, Aluminum, Dark Gray
Rigid and IMC Conduit Body, Type LR, Aluminum, Cover and Gasket, Size 2-1/2 Inch

LR-47CG

Rigid and IMC Conduit Body, Type LR, Aluminum, Cover and Gasket, Size 2-1/2 Inch
1/2 Inch Hub with Steel Interior, Hole Size 7/8 Inch

CHNHUB1

1/2 Inch Hub with Steel Interior, Hole Size 7/8 Inch
1-1/4 Inch Conduit Body, T Shape, Form 7, For Use with Rigid/IMC Conduit, UL Standard, CSA Compliant, Fed Spec W-C-586D, Sand-Cast Aluminum Alloy

T47SA

1-1/4 Inch Conduit Body, T Shape, Form 7, For Use with Rigid/IMC Conduit, UL Standard, CSA Compliant, Fed Spec W-C-586D, Sand-Cast Aluminum Alloy
2-1/2 Inch Conduit Body, T Shape, Form 7, For Use with Rigid/IMC Conduit, UL Standard, CSA Compliant, Fed Spec W-C-586D, Sand-Cast Aluminum Alloy

T77SA

2-1/2 Inch Conduit Body, T Shape, Form 7, For Use with Rigid/IMC Conduit, UL Standard, CSA Compliant, Fed Spec W-C-586D, Sand-Cast Aluminum Alloy
3-1/2 Inch Conduit Body, T Shape, Form 7, For Use with Rigid/IMC Conduit, UL Standard, CSA Compliant, Fed Spec W-C-586D, Sand-Cast Aluminum Alloy

T97SA

3-1/2 Inch Conduit Body, T Shape, Form 7, For Use with Rigid/IMC Conduit, UL Standard, CSA Compliant, Fed Spec W-C-586D, Sand-Cast Aluminum Alloy
2 Inch Conduit Body, T Shape, Form 7, For Use with Rigid/IMC Conduit, UL Standard, CSA Compliant, Fed Spec W-C-586D, Sand-Cast Aluminum Alloy

T67SA

2 Inch Conduit Body, T Shape, Form 7, For Use with Rigid/IMC Conduit, UL Standard, CSA Compliant, Fed Spec W-C-586D, Sand-Cast Aluminum Alloy
1-1/2 Inch Conduit Body, T Shape, Form 7, For Use with Rigid/IMC Conduit, UL Standard, CSA Compliant, Fed Spec W-C-586D, Sand-Cast Aluminum Alloy

T57SA

1-1/2 Inch Conduit Body, T Shape, Form 7, For Use with Rigid/IMC Conduit, UL Standard, CSA Compliant, Fed Spec W-C-586D, Sand-Cast Aluminum Alloy

Frequently Asked Questions

Is the CHGUAX26SA made of aluminum?

Yes, the CHGUAX26SA is constructed from aluminum.

Does the CHGUAX26SA include a cover?

Yes, the CHGUAX26SA comes with a cover included.

What is the UNSPSC code for this product?

The UNSPSC code for the CHGUAX26SA is 39131708.

What is the hub size on the CHGUAX26SA?

The CHGUAX26SA has four 3/4-inch conduit hub openings.

What is the cover opening diameter?

The cover opening diameter is 3 inches.
