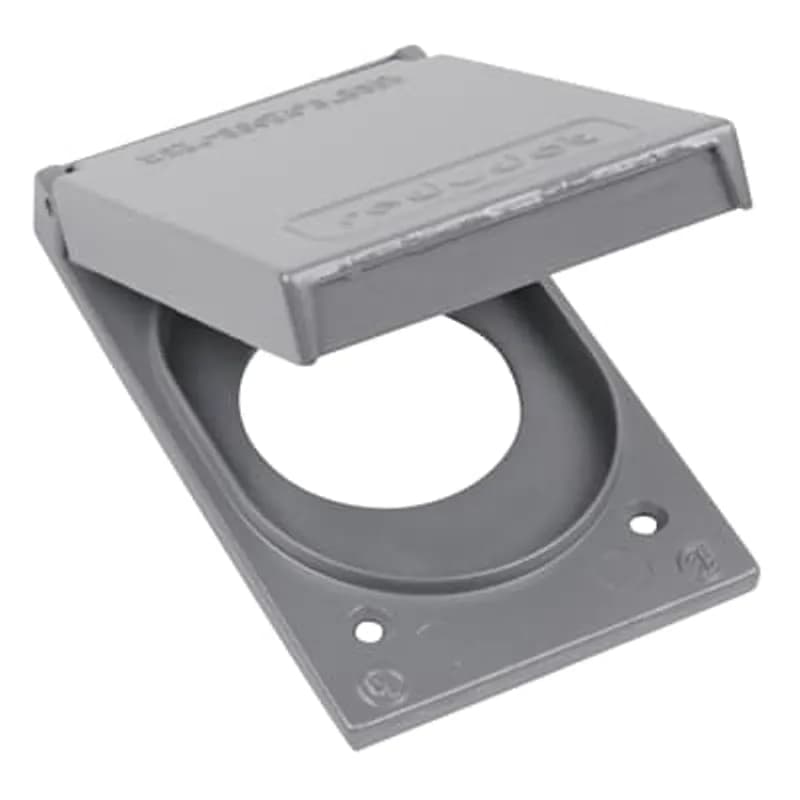

ABB - Installation Products CFSR-L - 1 Gang Device Box Cover, Die Cast Aluminum, Single Receptacle Vertical, Box Mount, Nominal Size 1-9/16 Inch, Maximum Device Face Diameter 1.600 Inch, Gasket and Screws Included with Cover

ABB Installation Products CFSR-L 1 Gang Device Box Cover, Die Cast Aluminum, Single Receptacle Vertical, Box Mount…

UPC: 042269442405

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB CFSR-L is a single-gang device box cover engineered for vertical single receptacle mounting in industrial and commercial electrical enclosures. Constructed from die-cast aluminum, this cover delivers robust protection against environmental contaminants while maintaining compatibility with ABB’s FS/FD aluminum device boxes. The cover features a nominal size of 1-9/16 inches (1.600-inch maximum device face diameter) and is designed for box-mounted applications where a single vertical receptacle requires secure enclosure. Supplied with a gasket and mounting screws, the CFSR-L ensures a watertight seal when paired with appropriate Red•Dot® boxes, meeting NEMA 3R requirements for wet locations with the cover closed. This cover is part of ABB’s Installation Products catalog, optimized for use in control panels, machinery enclosures, and industrial workstations where reliable electrical device mounting is critical. The die-cast aluminum construction provides durability against corrosion and mechanical stress, while the integrated gasket enhances sealing performance in demanding environments. Standard packaging includes 25 units per carton, with 40 pounds per 100 units for bulk handling efficiency. The CFSR-L is specifically designed for single receptacle vertical installations, distinguishing it from duplex or GFCI configurations. For applications requiring horizontal mounting or different device configurations, ABB offers complementary covers such as the CFSDR (vertical duplex), CWPDR (horizontal duplex), or CFSR-G (GFCI vertical).
  • Single-gang die-cast aluminum cover for vertical single receptacle mounting
  • Nominal size: 1-9/16 inches (1.600-inch max device face diameter)
  • Box mount design with integrated gasket for NEMA 3R wet location protection
  • Includes mounting screws for immediate installation
  • Compatible with ABB FS/FD aluminum device boxes and Red•Dot® boxes

Specifications

Application
For Use with Rigid/IMC Conduits
Material
Aluminum Die Cast
Number of Outlet
1
Special Features
Clean Cover Edges Provide Good Gasket Sealing
Standard
UL E28688, CSA
Type
FS/FD Device Boxes & Covers
Package Dimensions (L x W x H)
3.19 IN x 1.19 IN x 4.88 IN
Package Dimensions (L x W x H)
8.1026 cm x 3.0226 cm x 12.3952 cm
Package Weight (Imperial)
0.3600 L
Package Weight (Metric)
0.1630 kg
