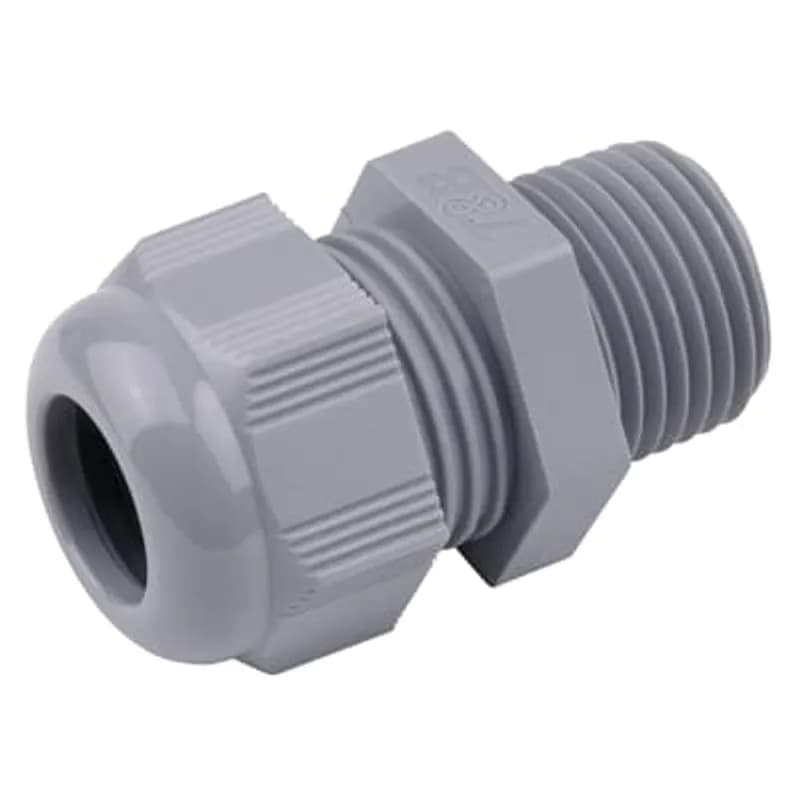

ABB Installation Products CC-NPT12S2-B Cable Gland with NPT Threads, NPT Thread Size 1/2 Inch, Low Profile, Cord Range 0.236…
UPC: 786210066431
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 1/2 Inch NPT Thread Size for standard mechanical connections
- Low-profile design for reduced protrusion
- Nylon construction for durability and insulation
- Accommodates cord diameters from 6mm to 12mm
- Black color for discreet industrial applications
Specifications
Application | Ideal for Connections and Strain Relief in Cramped Spaces |
Color | Black |
Conductor Range | 0.236 Inch/6mm to 0.473 Inch/12mm |
Material | Nylon |
Material Quality | Nylon |
Operating Temperature, Maximum | 176 F |
Operating Temperature, Maximum | 80 C |
Operating Temperature, Minimum | -22 F |
Operating Temperature, Minimum | -30 C |
Size | 1/2 Inch |
Special Features | Sturdy Cable Sealing Mechanism Which Results In Superior Strain Relief |
Type | Cable Glands |
Package Dimensions (L x W x H) | 4 IN x 4 IN x 3 IN |
Package Dimensions (L x W x H) | 10.16 cm x 10.16 cm x 7.62 cm |
Package Weight (Imperial) | 0.0100 L |
Package Weight (Metric) | 0.0050 kg |
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
5351GR-DW6
3/8 Inch External Bonding Liquidtight Insulated Connector Flexible Metal Conduit Fitting, 90 Degree Angle, With Revolver Lug, With Copper Lug for Awg #14 to #8 Ground Wire, for Use In Wet Locations, With Stainless Steel Screw Set, 25 Pieces
Z 5055 USL
Keebar Aluminum Transformer Connector, #6 - 500 kcmil, Aluminum and Copper, Stud 5/8 inch and 1 inch, Ten ConnectorHow to Install Non-Metallic NPT Cable Glands
A general guide for installing non-metallic NPT cable glands, focusing on safe practices and proper cable strain relief and sealing for applications like CC-NPT12S2-B.
Estimated time: 15m
Tools needed:
Wrench, Drill, Wire strippers
Supplies needed:
Non-Metallic Cable Gland, Locknut (if required), Electrical Cable
- Disconnect Power
WARNING: Disconnect all power to the equipment before beginning installation to prevent the risk of electric shock. Ensure the power source is locked out or tagged out to prevent accidental re-energization.
- Prepare Mounting Hole
Ensure the mounting hole for the cable gland is correctly sized for the NPT thread (e.g., 1/2" NPT for CC-NPT-12-G variants). If necessary, drill a new hole or clean an existing one, ensuring no burrs or sharp edges remain.
- Install Cable Gland and Secure Cable
Insert the cable gland into the prepared mounting hole. If a locknut is required (e.g., LN-501 for 1/2" NPT glands), thread it onto the gland from the inside of the enclosure and tighten it securely. Insert the electrical cable through the gland and tighten the gland's cap to achieve proper strain relief and a secure, sealed connection around the cable.
