Contact for Pricing
Minimum Qty: 50
Multiplier: 50
*Contact for lower quantities*
Overview

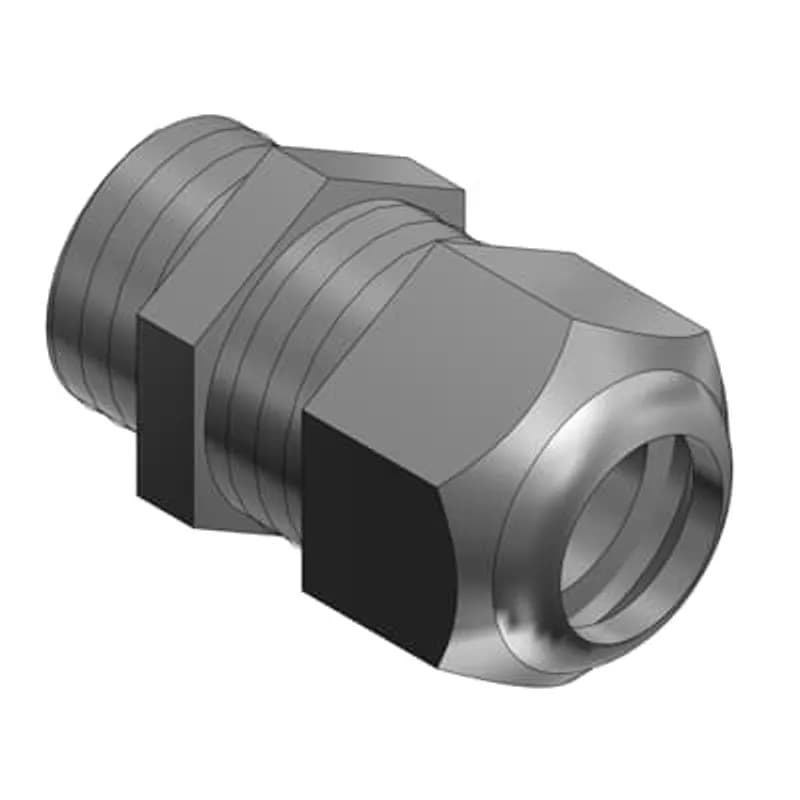

- ISO/Metric Threads: 16mm ISO thread size for standard enclosure compatibility.
- Versatile Cord Range: Accommodates cables from 5mm to 10mm (0.197" to 0.394") in diameter.
- IP68 Rated Protection: Dust-tight and protected against immersion in water.
- Halogen-Free Nylon Construction: Durable, safe material for demanding environments.
- Secure 10mm Thread Length: Ensures a firm and reliable connection.
Specifications
Package Dimensions (L x W x H) | 6 IN x 4.5 IN x 3 IN |
Package Dimensions (L x W x H) | 15.24 cm x 11.43 cm x 7.62 cm |
Package Weight (Imperial) | 0.0300 L |
Package Weight (Metric) | 0.0140 kg |
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
DDL-PG21M
Degson DDL-PG21M — PG21 Metal Cable Gland. Fix cables to prevent internal wiring from being affected by pulling, swinging and other factors. Waterproof and dustproof, support IP68 high protection level.
IAEIP66
Industrial Ethernet enclosure. Accepts one gland plate (required to achieve IP66 rating). Supplied with power supply (115/230V to 24 VDC) and accessories kit.Dimensions: 18.50"H x 18.50"W x 8.00"D (470mm x 470mm x 203mm).How to Install the CC-ISO16-G Cable Gland
This guide outlines the general installation process for the CC-ISO16-G non-metallic cable gland, focusing on securing cables and ensuring environmental protection and strain relief.
Estimated time: 10m
Tools needed:
Wrench, Wire Strippers
Supplies needed:
CC-ISO16-G Cable Gland, LN-ISO-16-G Locknut, Cable
- Disconnect Power
Before beginning any installation, ensure that all power to the equipment or circuit where the cable gland will be installed is completely disconnected to prevent risk of shock. This is a critical safety measure.
- Prepare Opening and Insert Gland
Prepare an appropriate 16mm ISO threaded or clearance hole in the enclosure or panel. Insert the CC-ISO-16-G cable gland into the prepared opening. Ensure the gland is properly seated.
- Secure the Cable Gland
If using a clearance hole, thread the LN-ISO-16-G locknut onto the cable gland from the inside of the enclosure. Use a wrench to tighten the locknut firmly, securing the gland in place and ensuring a tight seal to maintain NEMA type 4X and type 6 IP 68 ratings.
- Insert and Secure Cable
Insert the cable, ensuring its diameter is within the gland's clamping range of 0.197” (5mm) to 0.394” (10mm), through the cable gland. Hand-tighten the gland's cap to provide strain relief and maintain the environmental seal. Avoid overtightening to prevent damage to the cable or gland.
