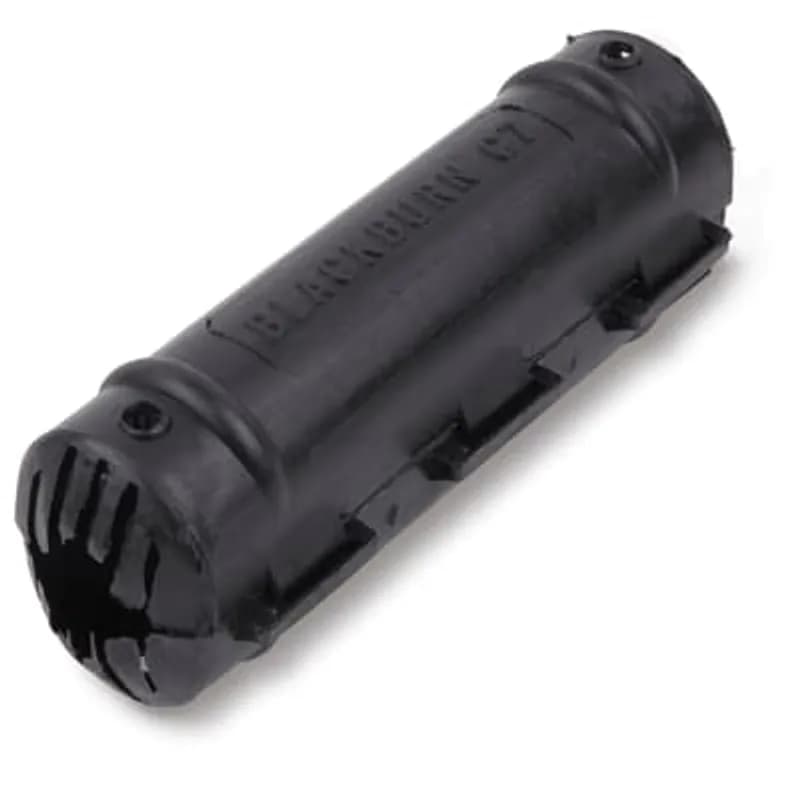

ABB - Installation Products C7C - Insulating Covers For D Die Connectors Up To 2-1/2 inch Long. Cinch Cover.
More images
ABB - Installation Products

C7C

UPC: 786210296234

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Overview

The ABB C7C is an insulating cover specifically designed for D Die connectors up to 2-1/2 inches in length. This component, often referred to as a cinch cover, provides essential electrical insulation and protection for these critical connection points. Manufactured by ABB - Installation Products, the C7C ensures proper isolation, preventing accidental contact and potential short circuits in electrical installations. Its design is focused on providing a secure fit for D Die connectors, contributing to the overall safety and reliability of electrical systems. This product is suitable for use in various industrial settings where D Die connectors are employed for power distribution or signal transmission. The primary function is to safeguard the exposed terminals of the connector, thereby enhancing operational safety and maintaining the integrity of the electrical circuit. The SKU C7C identifies this specific insulating cover within the ABB catalog, ensuring accurate part selection for maintenance, repair, or new installations. Its application is direct and functional, serving the purpose of insulation for connectors within its specified size range. The UNSPSC code 39121468 categorizes this item under electrical connectors and accessories, further defining its role in electrical infrastructure. Focus on the precise dimensions and material properties for optimal application.
  • Insulating cover for D Die connectors
  • Suitable for connectors up to 2-1/2 inch long
  • Provides electrical insulation and protection
  • Manufactured by ABB - Installation Products
  • SKU: C7C

Specifications

Application
Connector Cover
Color
Black
Height
1.8 in
Length
5.00 in
Material
Polypropylene
Special Features
Secure Double-Locking Latches Provide a Close-Fitting Top and Bottom Seal. Thin Strips of the (Grass-Skirt) Mold around the Conductors to Provide a Highly Reliable End Enclosure. Tapered Drains in Both Cover Halves Prevent Accumulation of Water within the Cover, Reqardless of Which Half of the Cover is Down. Made of Black Polypropylene to Resist the Elements, UV Sun Rays and Common Contaminants
Type
Cinch Cover
Width
1.45 in
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.0900 L
Package Weight (Metric)
0.0410 kg
