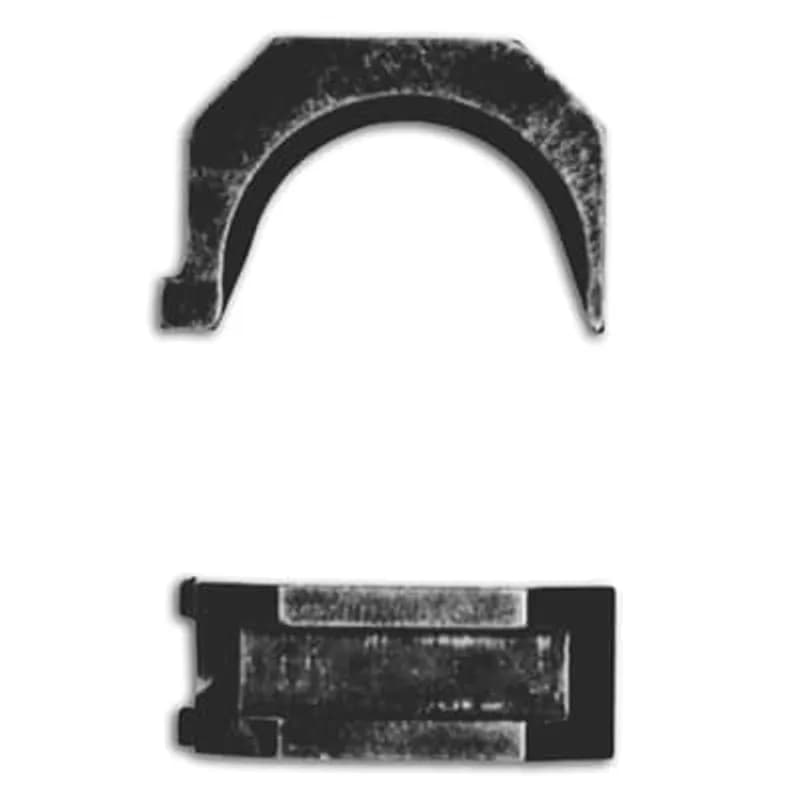

ABB - Installation Products BY28C-UT - Compression Die for OD Type Tool - 17/32 Black, Can also be used with OD58 Tool.

ABB Installation Products BY28C-UT Compression Die for OD Type Tool - 17/32 Black, Can also be used with OD58 Tool.

UPC: 075114231473

Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB BY28C-UT compression die is a precision-engineered tool designed for use with OD-type compression tools. This 17/32-inch black compression die is optimized for terminating and crimping operations, ensuring consistent and reliable connections in electrical installations. The die is fully compatible with the ABB OD58 tool, expanding its versatility for field applications where tool interchangeability is required. Manufactured by ABB Installation Products, a leader in electrical connection solutions, the BY28C-UT is built to meet the demands of industrial and commercial wiring projects. The compression die's black finish provides clear identification for tool matching and inventory control. This die is part of ABB's standardized tooling system, ensuring compatibility with existing infrastructure and reducing the need for specialized equipment. Ideal for use in panel shops, field installations, and maintenance operations, the BY28C-UT delivers precise crimping results for copper and aluminum conductors, maintaining compliance with industry standards. The die's design prioritizes repeatability and operator safety, with a compact form factor that fits standard tool configurations. For professionals requiring a dependable, industry-standard compression solution, the ABB BY28C-UT provides a proven, cost-effective option without compromising on performance.
  • Precision compression die for OD-type tools (17/32 Black finish)
  • Compatible with ABB OD58 tool for expanded versatility
  • Designed for copper and aluminum conductor terminations
  • Black finish for tool matching and inventory identification
  • Part of ABB's standardized tooling system for consistency

Specifications

Color
Black
Type
Die
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.2200 L
Package Weight (Metric)
0.1000 kg
