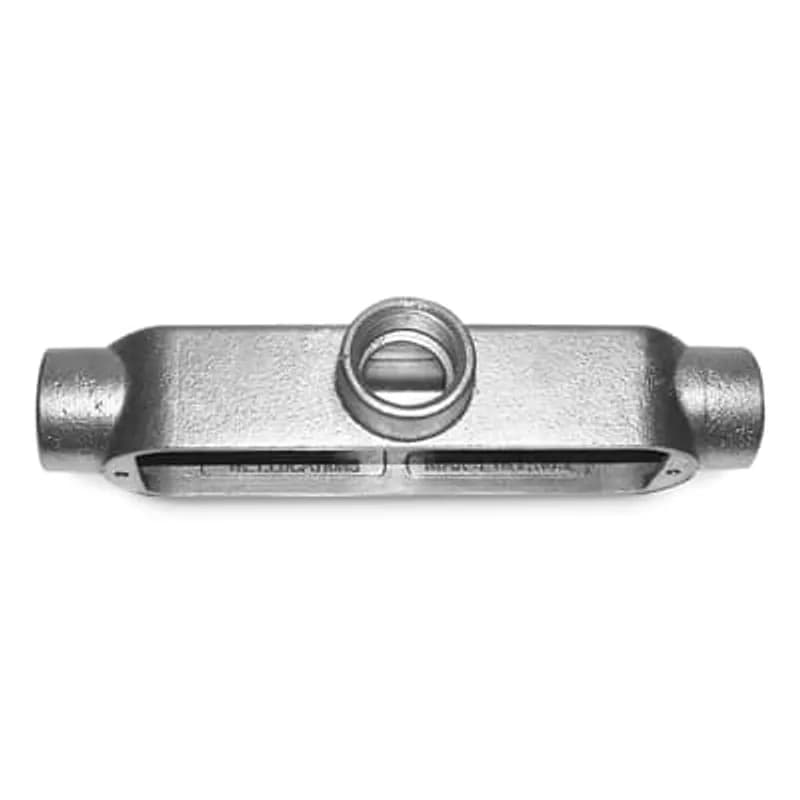

ABB - Installation Products BT8-TB - 3 Inch Mogul Conduit Outlet Body, Cover and Gasket, T Style, Body Material Gray Iron, Finish Electro Galvanized, Cover Material Gray Iron with Stainless Steel Cover Screws, Gasket Material Neoprene

ABB Installation Products BT8-TB 3 Inch Mogul Conduit Outlet Body, Cover and Gasket, T Style, Body Material Gray Iron…

UPC: 786210088570


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 3 Inch Mogul Conduit Outlet Body (SKU: BT8-TB) is engineered for efficient and reliable electrical conduit system management. Constructed from Class 30 Gray Iron alloy, this outlet body offers robust protection for conductors. Its 'T' style configuration provides ample openings for pulling stiff conductors, accommodating large sizes or specific insulation types, and preventing sharp bends or kinks that could damage insulation during installation. This design also facilitates longer pull lengths and provides necessary bending space as per NEC® 370-28 (a) (1) and (2) requirements. The body features tapered tapped hubs with integral bushings for secure conduit connections. The electro-galvanized finish ensures corrosion resistance, making it suitable for wet locations, as it is UL listed for such environments. The included cover and gasket are also made from Gray Iron, with the cover equipped with stainless steel cover screws for enhanced durability and ease of maintenance. The neoprene gasket creates a secure seal, protecting internal wiring from environmental ingress. This Mogul conduit outlet body is designed to act as a pull outlet, provide access for splices and taps, and allow for wiring maintenance and future system changes. It meets UL Standard 514B, Fed. Spec. The UNSPSC code for this product is 39131708.
  • Class 30 Gray Iron alloy construction for durability
  • T style configuration for pull outlets and access
  • Electro-galvanized finish for corrosion resistance
  • Includes Gray Iron cover with stainless steel screws and neoprene gasket
  • Includes Gray Iron cover with Stainless Steel screws and Neoprene gasket

Specifications

Application
Mogul Bodies are Installed In Conduit Systems to Act As Pull Outlets for Conductors that are Stiff, Due to Large Size or Type of Insulation
Color
Gray
Finish
Electrogalvanized
Hub Size
3
Material
Gray Iron
Material Quality
Gray Iron
Size
3 Inch Mogul
Special Features
Long Openings, Provision for Easy Bends, Tapered Tapped Hubs with Integral Bushings
Standard
UL E2969
Type
Mogul Conduit Body & Cover
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.1600 L
Package Weight (Metric)
0.0730 kg
