Contact for Pricing
Minimum Qty: 600
Multiplier: 600
*Contact for lower quantities*
Overview

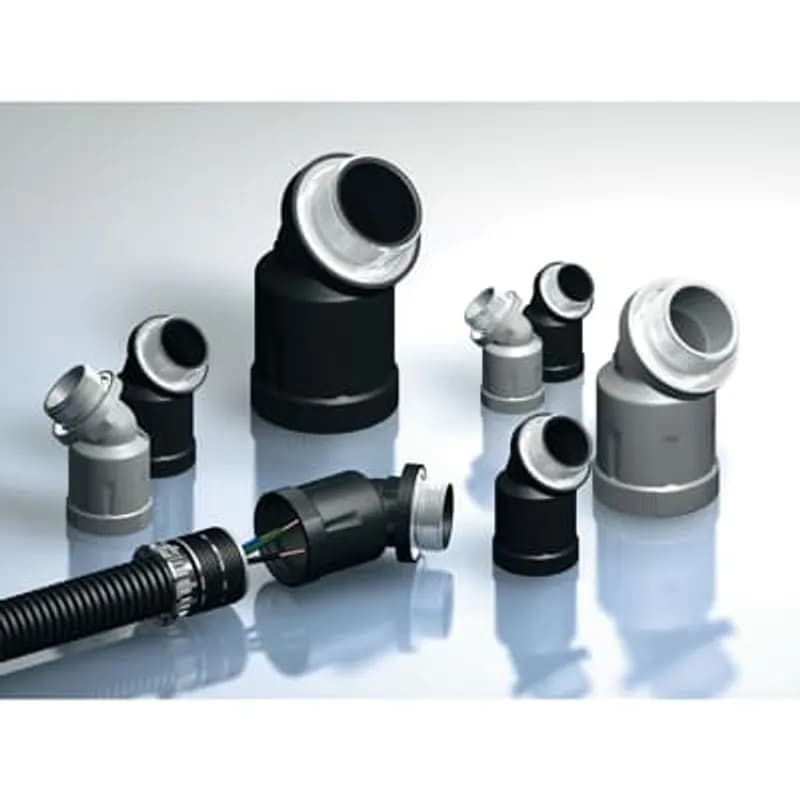

- ABB KAH Connector 45 Degree Elbow
- Metric Metal Thread M25x1.5
- IP69 Rated for Dust and Water Protection
- Designed for NW23 Conduit
- Durable Black Finish
Specifications
Application | For applications with high technical requirements and in most demanding climatic conditions |
Color | Black |
Connection | M25 |
Declaration of Conformity - CE | 9AKK107680A0674 |
Degree of Protection (IP) | IP69 |
Insulation Class | IP69 |
Ip Rating | IP69 |
Material | Metal |
Material | Polyamide 6 |
Series | KAH Connector |
Size | M25x1.5 |
Size | NW23 , M25 Thread |
Temperature Rating | -50 to +150 C |
Temperature Rating, Maximum | 302 F |
Temperature Rating, Maximum | 150 C |
Temperature Rating, Minimum | -58 F |
Temperature Rating, Minimum | -50 C |
Type | Connectors-45 Degree |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.080 L |
Package Weight (Metric) | 0.036 kg |
