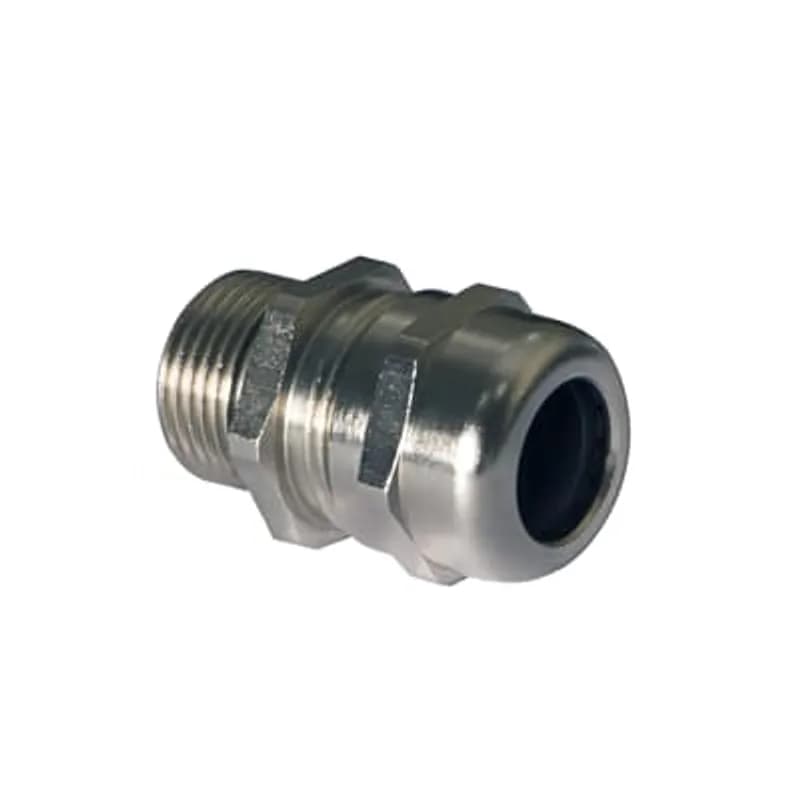

ABB - Installation Products BCG-PG72 - Non Armoured Cable Gland, Thread Size PG07, Cable Range 3 to 6.5mm, Thread Length 6mm, Nickel Plated Brass

ABB Installation Products BCG-PG72 Non Armoured Cable Gland, Thread Size PG07, Cable Range 3 to 6.5mm, Thread Length 6mm…

UPC: 786210157009


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB BCG-PG72 is a nickel-plated brass non-armoured cable gland designed for secure cable entry in industrial electrical installations. Part of ABB's BCG series, this gland features a PG07 thread size (metric 7mm) with a 6mm thread length, ensuring compatibility with standard electrical enclosures and equipment. The BCG-PG72 accommodates cable diameters from 3.0mm to 6.5mm, providing a reliable clamping solution for medium-sized cables without requiring armouring. Constructed from durable nickel-plated brass, the gland offers excellent corrosion resistance and mechanical strength, making it suitable for harsh industrial environments where moisture, dust, and mechanical stress are concerns. The gland's design includes a 22.0mm nominal dimension (A) and 15.5mm body width (B), with clamping dimensions (C) of 14.0mm and W1/W2 of 14.0mm. This compact yet robust construction ensures stable cable retention while preventing ingress of contaminants. Typical applications include control panels, junction boxes, and machinery enclosures where cable protection and strain relief are critical. Its straightforward installation process—requiring only standard tools—makes it a practical choice for electricians and maintenance professionals working in industrial, commercial, and utility settings. The gland's nickel plating provides additional protection against oxidation and chemical exposure, extending service life in corrosive environments. For installations requiring longer thread engagement, the BCG-PG72-L variant offers a 10.0mm thread length while maintaining the same cable range and dimensional specifications.
  • Thread size: PG07 (metric 7mm) with 6mm thread length
  • Cable range: 3.0mm to 6.5mm diameter
  • Material: Nickel-plated brass for corrosion resistance
  • Nominal dimensions: 22.0mm (A) x 15.5mm (B) x 14.0mm (C)
  • Non-armoured design for medium-sized cables
  • Thread Length: 6mm
  • Type: Non-Armoured Cable Gland

Specifications

Application
General purpose, Panel building, Light fixture and housings
Color
Metallic
Conductor Range
3 to 6.5 Millimeters
Finish
Nickel Plated
Material Quality
Brass
NEMA Rating
4
Operating Temperature, Maximum
212 F
Operating Temperature, Maximum
100 C
Operating Temperature, Minimum
-4 F
Operating Temperature, Minimum
-20 C
Size
PG07
Standard
cULus, RoHS, WEEE, LVD
Type
Non Armoured Cable Gland
Package Dimensions (L x W x H)
7.09 IN x 3.54 IN x 3.54 IN
Package Dimensions (L x W x H)
18.0086 cm x 8.9916 cm x 8.9916 cm
Package Weight (Imperial)
0.0200 L
Package Weight (Metric)
0.0090 kg
Non Armoured Cable Gland for Rail, Thread Size M12, Cable Range 3 to 6.5mm, Thread Length 12mm, Nickel Plated Brass

RBCG-M122

Non Armoured Cable Gland for Rail, Thread Size M12, Cable Range 3 to 6.5mm, Thread Length 12mm, Nickel Plated Brass
PG36, Nickel Plated Brass, Nut

236M

PG36, Nickel Plated Brass, Nut
MC Cable Connector, SS, 2 IN NPT, range over jacket 2.600 - 2.7

RTKSS-200-18-LNSS

MC Cable Connector, SS, 2 IN NPT, range over jacket 2.600 - 2.7
Non Armoured Cable Gland, Thread Size PG09, Cable Range 2 to 6mm, Thread Length 6mm, Nickel Plated Brass

BCG-PG91

Non Armoured Cable Gland, Thread Size PG09, Cable Range 2 to 6mm, Thread Length 6mm, Nickel Plated Brass
Non Armoured Cable Gland, Thread Size PG09, Cable Range 4 to 8mm, Thread Length 6mm, Nickel Plated Brass

BCG-PG92

Non Armoured Cable Gland, Thread Size PG09, Cable Range 4 to 8mm, Thread Length 6mm, Nickel Plated Brass
Non Armoured Cable Gland, Thread Size PG07, Cable Range 3 to 6.5mm, Thread Length 10mm, Nickel Plated Brass

BCG-PG72-L

Non Armoured Cable Gland, Thread Size PG07, Cable Range 3 to 6.5mm, Thread Length 10mm, Nickel Plated Brass
Non Armoured Cable Gland, Thread Size PG09, Cable Range 2 to 6mm, Thread Length 10mm, Nickel Plated Brass

BCG-PG91-L

Non Armoured Cable Gland, Thread Size PG09, Cable Range 2 to 6mm, Thread Length 10mm, Nickel Plated Brass
EMC Cable Gland, Thread Size 3/8 Inch NPT, Cable Range 5 to 10mm, Shield Range 3.5 to 8mm, Thread Length 11.5mm, Nickel Plated Brass

BEM-0381

EMC Cable Gland, Thread Size 3/8 Inch NPT, Cable Range 5 to 10mm, Shield Range 3.5 to 8mm, Thread Length 11.5mm, Nickel Plated Brass

Frequently Asked Questions

What are the wrench sizes (W1, W2) for the BCG-PG72?

The wrench sizes are W1=14.0 mm (0.551 in) and W2=14.0 mm (0.551 in).

What are the key features of BCG series cable glands?

BCG series cable glands are low profile, compact, offer a wide cable clamping range, and have good corrosion resistance.

What are the typical applications for BCG series cable glands?

They are suitable for general purpose, panel building, light fixture and housings, and machine building applications. They work with non-armoured, portable, and tray cable types.

What materials are used in the BCG cable glands?

The cable glands are constructed from nickel plated brass and feature chloroprene seals.

What is the operating temperature range for BCG cable glands?

For normal use, the temperature range is -20 to +100°C (-4 to +212°F). For short-term use, it is -30 to +150°C (-22 to +302°F).

What are the ingress protection ratings for these cable glands?

The cable glands have IP66, IP68 (5 bar 30 mins), and NEMA 4 ingress protection ratings. A suitable gasket and lock nut are required to ensure protection.

What standards and certifications do BCG cable glands conform to?

They conform to UL514B/CSA C22.2 No 18.3, EN 62444, RoHS, WEEE, and LVD directives.

Are there specific installation requirements for the product?

Yes, the product must be installed in accordance with applicable national and local electrical codes.

What is the thread size for the BCG-PG72 cable gland?

The BCG-PG72 cable gland has a PG07 thread.

What is the cable clamping range for the BCG-PG72?

The BCG-PG72 cable gland can clamp cables with a minimum diameter of 3.0 mm (0.118 in) and a maximum diameter of 6.5 mm (0.256 in).
