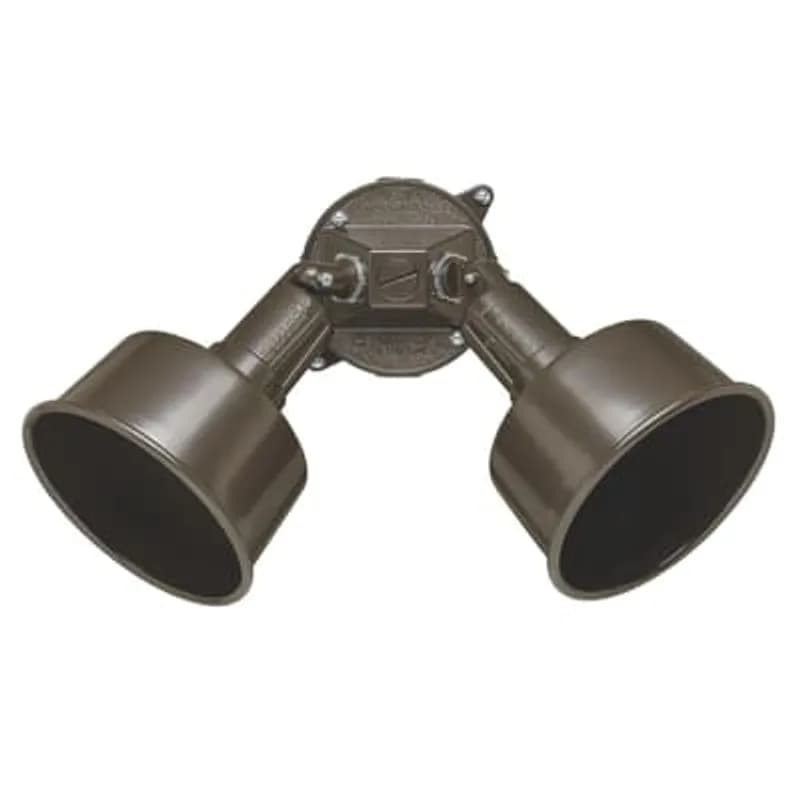

ABB - Installation Products B228BRE-R - Contemporary Round Weatherproof Floodlight Kit, 2 Lamps, Depth 11 Inches, Width 5-1/2 Inches, Height 7-3/4 Inches, Bronze, Aluminum, 150 Watt Maximum, Includes Two Reflectors, Round Cover, Gasket, and Hardware

ABB Installation Products B228BRE-R Contemporary Round Weatherproof Floodlight Kit, 2 Lamps, Depth 11 Inches, Width 5-1/2…

UPC: 042269009318

Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Minimum Qty: 2

Multiplier: 2

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB B228BRE-R is a contemporary round weatherproof floodlight kit designed for robust outdoor illumination. Manufactured by ABB - Installation Products, this fixture features a durable bronze aluminum construction, ensuring longevity in various environmental conditions. The kit includes two reflectors (Part D), a round three-hole cover (Part E), a large round gasket (Part F), two small circular gaskets (Part H), and hardware including two cover screws (Part J). It also comes with a round outlet box (Part A) and five 1/2" round thread plugs (Part B) for sealing unused openings. Two lampholders (Part C) are included, each rated for a maximum of 150 Watts. The floodlight has dimensions of 11 inches in depth, 5-1/2 inches in width, and 7-3/4 inches in height. Installation requires a screwdriver and wire stripper (WT2000). Power must be disconnected before installation. The product is intended for wall mount applications only and should be installed by a qualified electrician in accordance with National, Canadian, and local electrical codes. The design allows for easy aiming in any direction, offering flexible light placement. The weatherproof rating ensures reliable performance against the elements, making it ideal for accent lighting, security, and general outdoor illumination in residential and commercial settings.
  • Security and general outdoor lighting fixture for residential and commercial applications. Accent lighting fixture for highlighting outdoor signs and architectural details.
  • Compact outdoor lighting fixture that can be mounted easily in most places and aimed in any direction.
  • Includes two 150 Watt maximum lampholders
  • Dimensions: 11" Depth, 5-1/2" Width, 7-3/4" Height
  • Suitable for wall mount applications

Specifications

Color
Bronze
Fixture Material
Aluminum
Ip Rating
Weatherproof
Length
7-3/4 in
Material
Aluminum
Series
B228
Standard
UL E77360
Width
5-1/2 in
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
2.380 L
Package Weight (Metric)
1.080 kg
Single Gang Standard Lampholder Cover, Length 4-1/2 Inches, Width 2-13/16 Inches,Hole Size 1/2 Inch, Bronze, Aluminum, Three Hole Device Mount

S203BRE

Single Gang Standard Lampholder Cover, Length 4-1/2 Inches, Width 2-13/16 Inches,Hole Size 1/2 Inch, Bronze, Aluminum, Three Hole Device Mount

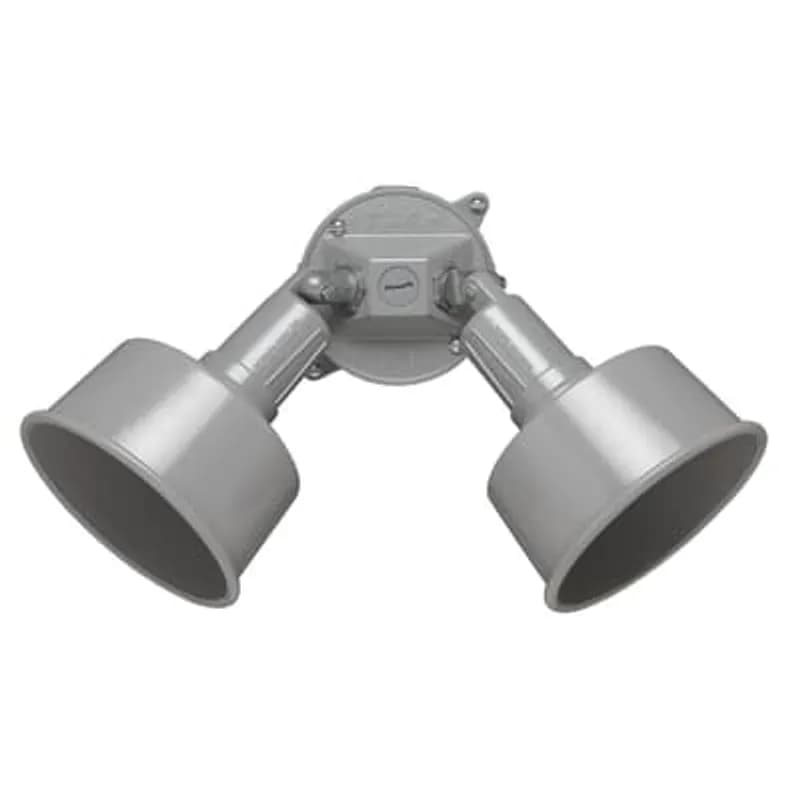

Contemporary Round Weatherproof Floodlight Kit, 2 Lamps, Depth 11 Inches, Width 5-1/2 Inches, Height 7-3/4 Inches, Silver, Aluminum, 150 Watt Maximum

B228E-RU

Contemporary Round Weatherproof Floodlight Kit, 2 Lamps, Depth 11 Inches, Width 5-1/2 Inches, Height 7-3/4 Inches, Silver, Aluminum, 150 Watt Maximum
Contemporary Round Weatherproof Floodlight Kit, 2 Lamps, Depth 11 Inches, Width 5-1/2 Inches, Height 7-3/4 Inches, Bronze, Aluminum, 150 Watt Maximum

B228BRE-RU

Contemporary Round Weatherproof Floodlight Kit, 2 Lamps, Depth 11 Inches, Width 5-1/2 Inches, Height 7-3/4 Inches, Bronze, Aluminum, 150 Watt Maximum
Single Gang Standard Lampholder Cover, Length 4-1/2 Inches, Width 2-13/16 Inches,Hole Size 1/2 Inch, White, Aluminum, Three Hole Device Mount

S203WHE

Single Gang Standard Lampholder Cover, Length 4-1/2 Inches, Width 2-13/16 Inches,Hole Size 1/2 Inch, White, Aluminum, Three Hole Device Mount

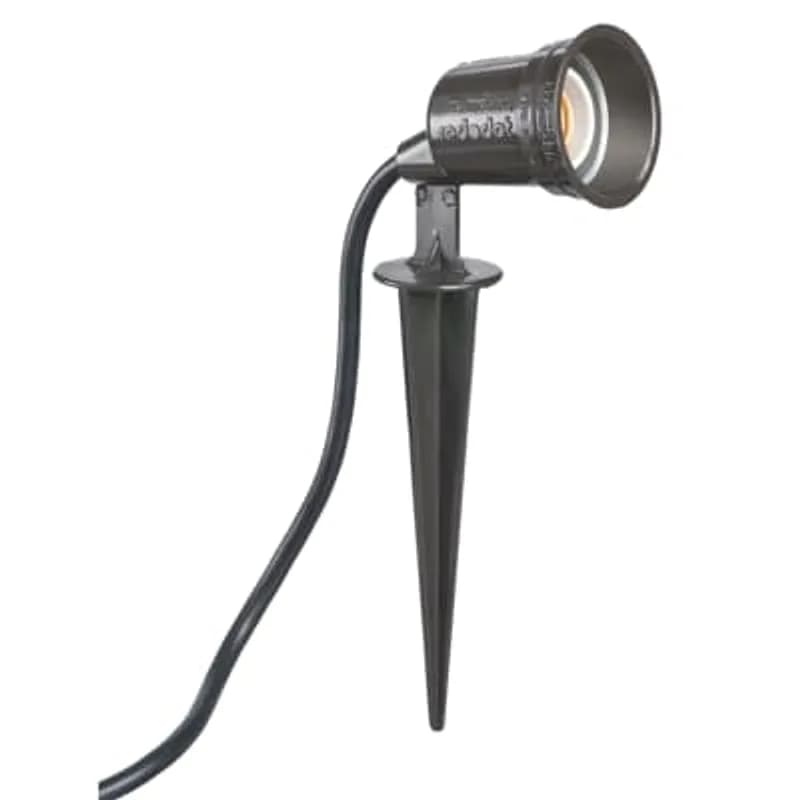

Portable Outdoor Spike Light, 6 Foot Cord, Bronze, Aluminum

B702BR

Portable Outdoor Spike Light, 6 Foot Cord, Bronze, Aluminum
Silver Lamp holder, material-Die Cast Zinc Zamak 3. Lamp maximum-150 watt, PAR 38 or R40. Inside gasket and ground screw included.

S500E-RL

Silver Lamp holder, material-Die Cast Zinc Zamak 3. Lamp maximum-150 watt, PAR 38 or R40. Inside gasket and ground screw included.
Lampholder, 1 Lamp, Bronze, Die Cast Zinc, 150 Watt Maximum Par 38 or R40 Lamp, Includes Inside Gasket and Ground Screw

S500BRE-RL

Lampholder, 1 Lamp, Bronze, Die Cast Zinc, 150 Watt Maximum Par 38 or R40 Lamp, Includes Inside Gasket and Ground Screw
White Lamp holder, material-Die Cast Zinc Zamak 3. Lamp maximum-150 watt, PAR 38 or R40. Inside gasket and ground screw included.

S500WHE-RL

White Lamp holder, material-Die Cast Zinc Zamak 3. Lamp maximum-150 watt, PAR 38 or R40. Inside gasket and ground screw included.

How to Install the Lampholder & Round Box Kit B228BRE-R

This guide provides step-by-step instructions for installing the Lampholder and Round Box Kit B228BRE-R, including mounting, wiring, and assembly.

Estimated time: 45m

Tools needed:

Screwdriver, Wire stripper (WT2000)

Supplies needed:

Mounting screws (1 inch), Wire connectors, Sealant

  1. Prepare the outlet box

    Coat the threads of the round plugs with sealant and install them into the unused holes of the outlet box. Ensure they are tightened firmly.

  2. Mount the outlet box

    Feed the supply wire into the box and secure the box to the surface using 1-inch long screws.

  3. Connect the ground wire

    Strip 1/2 inch of insulation from the ground wire and attach it under the ground screw. Tighten the screw without overtightening.

  4. Wire the lampholders

    Strip 1/2 inch of insulation from the ends of the lampholder wires. Connect all white wires together using a wire connector, then do the same for all black wires. Ensure no bare conductors are visible.

  5. Assemble the light fixture

    Screw the lampholders into the cover without overtightening. Position the gasket behind the cover and align the screw holes before attaching the cover to the box.

  6. Install the bulbs

    Place a small circular gasket over the base of each bulb and screw the bulbs into the lampholder sockets. Do not overtighten the bulbs.

  7. Test the installation

    Replace the fuse or turn ON the circuit. Turn on the light switch to test if the unit illuminates. If it does not, check the bulbs and repeat the installation steps if necessary.
