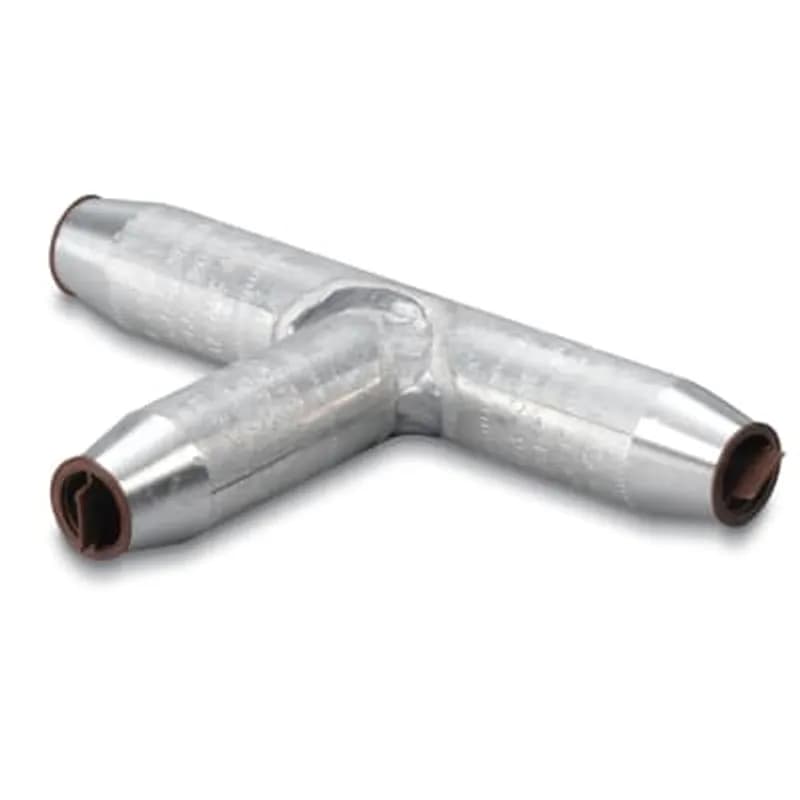

ABB - Installation Products ATT 2-2 - Aluminum Tapered Tee, Main 2/0 Stranded AL-CU, Tap 2/0 Stranded AL-CU. Main 2-3/8 inch, Taps 5-1/2 inch with Dimple at 2-3/7 inch. Dies TU, 52, BG, 243, 5/8. Oxide Inhibitor. Red Caps.

ABB Installation Products ATT 2-2 Aluminum Tapered Tee, Main 2/0 Stranded AL-CU, Tap 2/0 Stranded AL-CU. Main 2-3/8 inch…

UPC: 075114279314

Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB ATT 2-2 Aluminum Tapered Tee, part of ABB's Installation Products catalog, is designed for reliable electrical connections. This tee connector is engineered to join two conductors, with a main conductor and a tap conductor, both specified as 2/0 Stranded Aluminum-Copper (AL-CU). The main conductor connection point measures 2-3/8 inches, while the tap connection point extends to 5-1/2 inches. A key feature is the dimple located at 2-3/7 inches on the tap, which aids in ensuring a secure and consistent connection by providing a defined pressure point. This product is compatible with a specific set of dies: TU, 52, BG, 243, and 5/8. The inclusion of an oxide inhibitor is crucial for maintaining electrical conductivity and preventing corrosion over time, especially with aluminum conductors. The tee comes with red caps, likely for protection during shipping and handling, and to indicate the tap end. With UNSPSC code 39121409, this component is categorized under electrical connectors and fittings. The use of stranded AL-CU conductors signifies its application in power distribution and transmission systems where flexibility and conductivity are paramount. The tapered design allows for efficient use of space and a robust mechanical connection. This ABB product (SKU: ATT 2-2) offers a dependable solution for creating branched connections in electrical infrastructure.
  • Main Conductor: 2/0 Stranded AL-CU
  • Tap Conductor: 2/0 Stranded AL-CU
  • Main Connection Size: 2-3/8 inch
  • Tap Connection Size: 5-1/2 inch with Dimple at 2-3/7 inch
  • Includes Oxide Inhibitor and Red Caps

Specifications

Application
Tapered ends enable use in High-Voltage Applications up to 69kV
Connection
Compression
Finish
Uncoated
Housing Material
Aluminum
Housing Material
Aluminium
Insulation
None
Size
Length 4-1/4 inches, Tap 2-1/2 inch
Special Features
Made from Aluminum which provides high strength and high conductivity. Dual-rated. Use with Aluminum and Copper conductors. Prefilled with oxide inhibitor to prevent oxidation and keep out moisture. All Tees marked with conductor sizes and die reference for easy identification
Standard
ANSI C119.4
Type
Tee, Compression, Tapered
Wire Size
Main #2 AWG , TAP #2 AWG
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.3000 L
Package Weight (Metric)
0.1360 kg
The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IPLMD350-6

The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
Connector, Two-Way, 2/0 Aluminum to 1/0 Copper

269-31499-10

Connector, Two-Way, 2/0 Aluminum to 1/0 Copper
Tin Plated Aluminum Compression Lug, 800 kcmil AL9CU UL listed, 400 mm2. Installing Dies 140H, 342, 474, 1 1/2. Two Hole NEMA Pad. Length 8-5/16 inch. Pad 1-3/4 inch wide x 3-5/8 inch long x 39/64 inch thick. (2) 9/16 inch Diameter Holes on 1-3/4 inch centers. Oxide Inhibitor. Light Blue Cap. Includes Stainless Steel Hardware (2) Bolts 1/2-13 x 3 inch Full Thread, (2) 1/2-13 Nuts, (4) 1/2 inch Flat Washer, and (4) Stainless Steel Belleville 1/2 inch Washers.

AL 800 NTN-SSH

Tin Plated Aluminum Compression Lug, 800 kcmil AL9CU UL listed, 400 mm2. Installing Dies 140H, 342, 474, 1 1/2. Two Hole NEMA Pad. Length 8-5/16 inch. Pad 1-3/4 inch wide x 3-5/8 inch long x 39/64 inch thick. (2) 9/16 inch Diameter Holes on 1-3/4 inch centers. Oxide Inhibitor. Light Blue Cap. Includes Stainless Steel Hardware (2) Bolts 1/2-13 x 3 inch Full Thread, (2) 1/2-13 Nuts, (4) 1/2 inch Flat Washer, and (4) Stainless Steel Belleville 1/2 inch Washers.
Aluminum Tin-Plated Two-Hole NEMA Lugs - 90 degree lug, concentric 4/0 Stranded AL-CU, installing dies TX, 71H, 298, 840, 11A. Unbent length 6-5/16, Barrel 1-15/16 inches, Pad 3 inch minimum length x 1-3/16 inch wide x 5/16 inch thick. (2) 9/16 inch Diameter holes on 1-3/4 inch centers. Oxide Inhibitor. Pink Cap.

AL 4/0 NTN 90

Aluminum Tin-Plated Two-Hole NEMA Lugs - 90 degree lug, concentric 4/0 Stranded AL-CU, installing dies TX, 71H, 298, 840, 11A. Unbent length 6-5/16, Barrel 1-15/16 inches, Pad 3 inch minimum length x 1-3/16 inch wide x 5/16 inch thick. (2) 9/16 inch Diameter holes on 1-3/4 inch centers. Oxide Inhibitor. Pink Cap.
Tin-Plated Aluminum Compression One-Hole NEMA Lug - Wire Range 1/0 Stranded - Compressed - ACSR, 2/0 Compact. Installing Dies TU, 52, BG, 243, 5/8, CSA22. Length 3-1/8 inch. Pad 57/64 inch wide x 1-5/16 inch x 7/32 inch thick. (1) 9/16 inch Diameter Hole. Barrel 1-3/8 inch. Oxide Inhibitor. Yellow Cap. For use with 1/2 inch bolts. Dual Rated for Aluminum and Copper Conductors

SA 1/0-48 TN

Tin-Plated Aluminum Compression One-Hole NEMA Lug - Wire Range 1/0 Stranded - Compressed - ACSR, 2/0 Compact. Installing Dies TU, 52, BG, 243, 5/8, CSA22. Length 3-1/8 inch. Pad 57/64 inch wide x 1-5/16 inch x 7/32 inch thick. (1) 9/16 inch Diameter Hole. Barrel 1-3/8 inch. Oxide Inhibitor. Yellow Cap. For use with 1/2 inch bolts. Dual Rated for Aluminum and Copper Conductors
Tin-Plated Aluminum Compression One-Hole NEMA Lug, Aluminum or Copper Conductors. - Wire Range 2/0 Stranded - Compressed, 2/0 (6/1) ACSR, 3/0 Compact - Solid. Installing Dies TX, 76, 249, 840, 845, 11A. Length 3-1/4 inch. Pad 1-1/4 inch wide x 1-3/8 inch x 11/32 inch thick. (1) 9/16 inch Diameter Hole. Barrel 1-23/64 inch. Oxide Inhibitor. Gray Cap. For use with 1/2 inch bolts.

SA 2/0-48 TN

Tin-Plated Aluminum Compression One-Hole NEMA Lug, Aluminum or Copper Conductors. - Wire Range 2/0 Stranded - Compressed, 2/0 (6/1) ACSR, 3/0 Compact - Solid. Installing Dies TX, 76, 249, 840, 845, 11A. Length 3-1/4 inch. Pad 1-1/4 inch wide x 1-3/8 inch x 11/32 inch thick. (1) 9/16 inch Diameter Hole. Barrel 1-23/64 inch. Oxide Inhibitor. Gray Cap. For use with 1/2 inch bolts.
Tin Plated Aluminum Two-hole Lugs - Straight Lug, Aluminum or Copper Conductors. 2/0 Compressed, 2/0 (6/1) ACSR, 2/0 Stranded, 3/0 Solid, 3/0 Compact. Installing Dies TX, 76, 249, 840, 845, 11A, CSA 24. Length 6 inch. Pad 1-1/4 inch wide x 3-3/8 inch long x 21/64 inch thick. (2) 9/16 inch diameter holes on1-3/4 inch centers. Barrel 2 inch long - filled with Oxide Inhibitor and Gray Capped.

SA 2/0 NTN

Tin Plated Aluminum Two-hole Lugs - Straight Lug, Aluminum or Copper Conductors. 2/0 Compressed, 2/0 (6/1) ACSR, 2/0 Stranded, 3/0 Solid, 3/0 Compact. Installing Dies TX, 76, 249, 840, 845, 11A, CSA 24. Length 6 inch. Pad 1-1/4 inch wide x 3-3/8 inch long x 21/64 inch thick. (2) 9/16 inch diameter holes on1-3/4 inch centers. Barrel 2 inch long - filled with Oxide Inhibitor and Gray Capped.
Aluminum Compression One-Hole NEMA Lug - Wire Range 1/0 Stranded - ACSR, 2/0 Compact. Installing Dies TU, 52, BG, 243, 5/8, CSA22. Length 3-1/8 inch. Pad 57/64 inch wide x 1-5/16 inch x 7/32 inch thick. (1) 9/16 inch Diameter Hole. Barrel 1-3/8 inch. Oxide Inhibitor. Yellow Cap. For use with 3/8 inch bolts. Dual Rated for Aluminum and Copper Conductors

SA 1/0-38

Aluminum Compression One-Hole NEMA Lug - Wire Range 1/0 Stranded - ACSR, 2/0 Compact. Installing Dies TU, 52, BG, 243, 5/8, CSA22. Length 3-1/8 inch. Pad 57/64 inch wide x 1-5/16 inch x 7/32 inch thick. (1) 9/16 inch Diameter Hole. Barrel 1-3/8 inch. Oxide Inhibitor. Yellow Cap. For use with 3/8 inch bolts. Dual Rated for Aluminum and Copper Conductors
