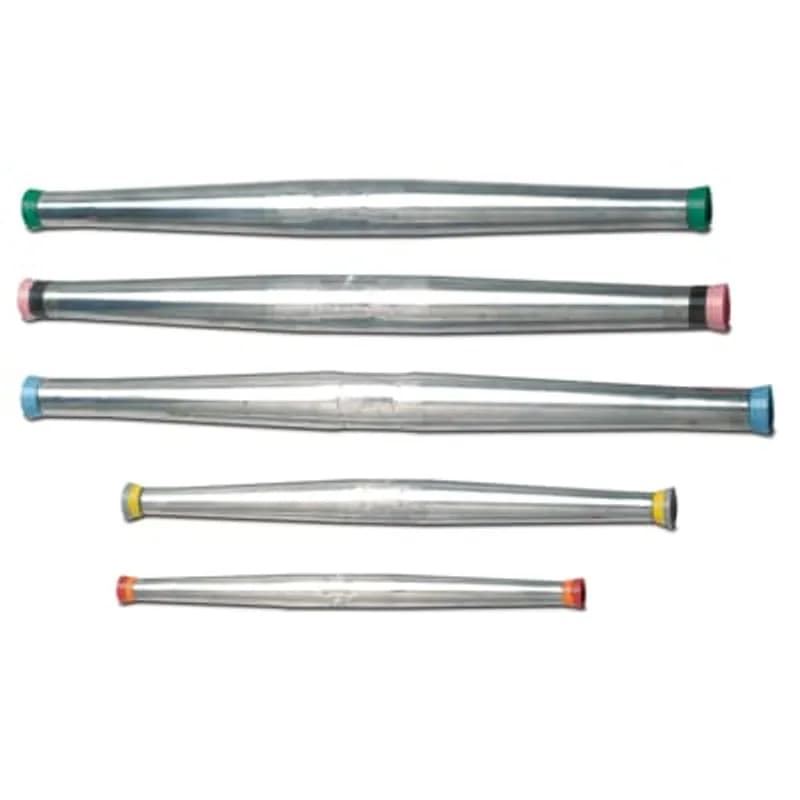

ABB - Installation Products ATS42 - Autoset Automatic Tension Splice for Wire Range: 4 6/1, 7/1, 2 6/1, 7/1 ASCR, 4-2 AAAC, 4-2 AAC, Aluminum, Color Code 4 - Orange, 2 - Red

ABB Installation Products ATS42 Autoset Automatic Tension Splice for Wire Range: 4 6/1, 7/1, 2 6/1, 7/1 ASCR, 4-2 AAAC…

UPC: 783786103805


Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Autoset Automatic Tension Splice (SKU: ATS42) is a precision-engineered splicing solution for overhead conductor applications, designed to maintain consistent tension and electrical continuity in high-load transmission and distribution systems. This splice accommodates multiple wire configurations, including 4 6/1, 7/1, 2 6/1, and 7/1 ASCR conductors, as well as 4-2 AAAC and 4-2 AAC aluminum conductors. The color-coded design (Orange for size 4, Red for size 2) ensures quick identification and correct installation, reducing human error in field applications. Constructed from high-strength aluminum, the Autoset splice provides superior corrosion resistance and long-term reliability in outdoor and industrial environments. Its automatic tensioning mechanism eliminates the need for manual adjustments, ensuring consistent performance across varying load conditions. The splice is part of ABB’s Autoset series, known for its compatibility with standard conductor sizes and ease of installation using standard tools. Ideal for utility companies, electrical contractors, and industrial power distribution projects, the ATS42 splice is rated for use in overhead line systems where mechanical strength and electrical integrity are critical. The product meets industry standards for aluminum conductor splicing and is suitable for both new installations and maintenance operations. Installation requires straightening the conductor, removing curvature, and cutting the end square to ensure even strands. The splice features internal pilot cups and strand guides to confine and direct conductor strands during insertion. Insertion must be performed with a smooth, continuous thrust until the conductor hits the center stop. A momentary hand-set tension ensures proper jaw gripping, with normal movement of 1/4 to 1/2 inch from the splice end during the process. The splice is designed for full tension applications only and is not suitable for slack spans.
  • Accommodates 4 6/1, 7/1, 2 6/1, 7/1 ASCR and 4-2 AAAC/AAC conductors
  • Color-coded (Orange for size 4, Red for size 2) for quick identification
  • Automatic tensioning mechanism eliminates manual adjustments
  • High-strength aluminum construction for corrosion resistance and durability
  • Designed for full tension applications in overhead transmission/distribution systems

Specifications

Application
Overhead Tension Connection
Handle Type
None
Overall Length
13.75 in
Special Features
Color Coded. Center Stop
Type
Automatic Tension Splice
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.5000 L
Package Weight (Metric)
0.2270 kg
Easy-Splice Gel Tap Splice Kit with Connector for #14 - 2/0 AWG The Easy-Splice gel tap splice kit provides a fast and simple method for connecting, insulating, and environmentally sealing low-voltage splices. The splice kit is designed for underground and overhead environments and is useful for street lighting applications. The splice kit's dual-rated mechanical connector splices a wide range of cables, including copper and aluminum. The connector's four port design allows maximum inventory flexibility. The sealant gel protects the connection from moisture ingress, corrosion and pollution. The hinged splice closure can be installed over the connector in seconds by simply snapping the cover shut. Qualified to ANSI C119.1-1986 for underground splicing. Rated -40 degrees C to 90 degrees C.

ESGTS-2/0

Easy-Splice Gel Tap Splice Kit with Connector for #14 - 2/0 AWG The Easy-Splice gel tap splice kit provides a fast and simple method for connecting, insulating, and environmentally sealing low-voltage splices. The splice kit is designed for underground and overhead environments and is useful for street lighting applications. The splice kit's dual-rated mechanical connector splices a wide range of cables, including copper and aluminum. The connector's four port design allows maximum inventory flexibility. The sealant gel protects the connection from moisture ingress, corrosion and pollution. The hinged splice closure can be installed over the connector in seconds by simply snapping the cover shut. Qualified to ANSI C119.1-1986 for underground splicing. Rated -40 degrees C to 90 degrees C.
Plate with Magnets, Four Hole Splice, Length 7-1/4 Inch, Width 1-5/8 Inch, Hole Diameter 9/16 Inch, Steel

ZX207M

Plate with Magnets, Four Hole Splice, Length 7-1/4 Inch, Width 1-5/8 Inch, Hole Diameter 9/16 Inch, Steel
The fiber splice tray kit is for up to 24 mechanical or fusion splices or 144 ribbon fusion splices. It fits in Panduit FRME3 and FRME4 rack mount enclosures and stacks up to three high using FST24H3 stacking unit.

FST24

The fiber splice tray kit is for up to 24 mechanical or fusion splices or 144 ribbon fusion splices. It fits in Panduit FRME3 and FRME4 rack mount enclosures and stacks up to three high using FST24H3 stacking unit.
Tap Splice, 20 – 18 AWG, .5 – .9 mm² Wire, 642 – 1624 CMA, Brass, Red, 12 mm [.472 in] Length, Bag, Solid / Stranded Wire, Copper Wire, ELECTRO-TAP

171425-1

Tap Splice, 20 – 18 AWG, .5 – .9 mm² Wire, 642 – 1624 CMA, Brass, Red, 12 mm [.472 in] Length, Bag, Solid / Stranded Wire, Copper Wire, ELECTRO-TAP
Autoset Automatic Tension Splice for Wire Range: 4 6/1, 7/1 ASCR, 4 AAAC, 4 AAC, Aluminum, Color Code 4 - Orange, Length 11.50 inch

ATS4-S

Autoset Automatic Tension Splice for Wire Range: 4 6/1, 7/1 ASCR, 4 AAAC, 4 AAC, Aluminum, Color Code 4 - Orange, Length 11.50 inch
PVC Coated Two Hole Steel Splice Plate, Length 3-1/2 Inch, Gray

AB206-G

PVC Coated Two Hole Steel Splice Plate, Length 3-1/2 Inch, Gray
PVC Coated Flush to Side Post Base, Base Plate 3 Inch X 6 Inch with Two 45 Degree Angle Slots, Attached to Bracket Height 3-1/2 Inch, Depth 1-11/16 Inch, Width 1-5/8 Inch with 2 Holes on ALL 3 Sides, Gray

AP232FLSLOT-G

PVC Coated Flush to Side Post Base, Base Plate 3 Inch X 6 Inch with Two 45 Degree Angle Slots, Attached to Bracket Height 3-1/2 Inch, Depth 1-11/16 Inch, Width 1-5/8 Inch with 2 Holes on ALL 3 Sides, Gray
Three Hole Steel Corner Plate with Goldgalvanized Finish, Size 3.500 Inch X 3.500 Inch, Gray

AB219-G

Three Hole Steel Corner Plate with Goldgalvanized Finish, Size 3.500 Inch X 3.500 Inch, Gray

How to Install the ATS Wide Range Automatic Tension Splice

This guide provides step-by-step instructions for the proper installation of ATS Wide Range Automatic Tension Splices on ACSR, AAAC, and AAC conductors, ensuring a secure and reliable electrical connection.

Estimated time: 30m

Tools needed:

Bristle wire brush

Supplies needed:

ATS wide range automatic tension splice, Tape or marking device, Aluminum conductor cleaner (for ACSR), Non-gritted oxide-inhibitor compound

  1. Ensure Safety and Select Splice

    WARNING: Disconnect power before installation to avoid risk of shock. Select the proper ATS wide range automatic tension splice for the job, verifying the wire size and type clearly marked on the splice. Keep the splice in its plastic bag to prevent dirt contamination until installation.

  2. Prepare Conductor Ends

    Straighten the conductor to remove any curvature. For old conductors, cut back sufficiently to remove stretches, burned, or annealed strands. Cut the conductor square so all strands are even, in lay, and free of burrs. Measure the conductor for full insertion (one half the length of the splice) and mark it with tape or another device. Thoroughly wire brush the end section. For ACSR conductors, thoroughly clean the portion to be inserted with a good quality aluminum conductor cleaner. Apply a coat of non-gritted oxide-inhibitor compound, wipe off excess, then wire brush again to ensure oxides are removed and inhibitor reaches between strands.

  3. Insert Conductor into Splice

    Do not remove the plastic strand guide or internal pilot cup from the splice; these components guide the conductor strands. Insert the conductor into the splice with a smooth, straight, continuous thrust through the jaws until it hits the center stop. DO NOT TWIST. Do not push the conductor partially in, pause, and then continue; insertion must be accomplished with one continuous thrust. Check the markers to confirm full insertion. If insertion is incomplete, the conductor will not be gripped and will pull out easily.

  4. Set the Splice Gripping Jaws

    Before releasing blocks, apply a momentary “hand set” tension to assure proper jaw gripping. As tension is applied, the conductor will move 1/4 inch to 1/2 inch from the end of the splice due to the sliding action of the gripping jaws; this is normal. DO NOT TAP THE SPLICE TO SET JAWS.
