UPC: 783786611041
Contact for Pricing
Overview

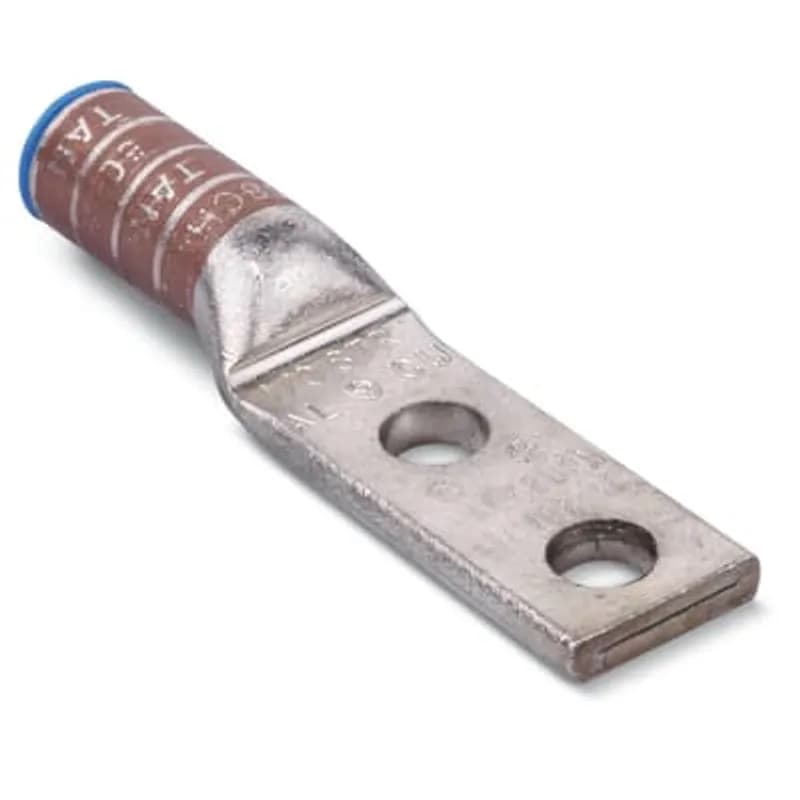

- Type Aluminum Two-Hole Lug
- Maximum Voltage Rating: 35kV
- Wire Size Compatibility: 2/0 Stranded (Str)
- Bolt Hole Size: 1/2 Inch
- Tin Plated for enhanced conductivity and corrosion resistance
Specifications
Color | Olive |
Material | Aluminum |
Number Of Holes | 2 |
Special Features | Aluminum Lug |
Standard | UL E9809 |
Stud Size | 1/2 in |
Type | Aluminum Two-Hole Lug |
Voltage Rating | 35 kV |
Package Dimensions (L x W x H) | 5.5 IN x 4 IN x 3 IN |
Package Dimensions (L x W x H) | 13.97 cm x 10.16 cm x 7.62 cm |
Package Weight (Imperial) | 0.1500 L |
Package Weight (Metric) | 0.0680 kg |
13682
Die for 12 Ton 13400 or 13642M Hydrualic Tool for Crimping 204210MT Dragon Tooth Terminals, Brown. .301/.289 Gaging
RDC1/0
Ratchet Drive Crimping Tool APPLICATIONS: Ratchet Drive Crimping Tool is for non-insulated terminals from 6 to 1/0 AWG and insulated terminals from 22 to 8 AWG. Rugged, compact, and lightweight. Requires minimum effort due to ratchet action, ensuring an excellent crimp every time. FEATURES: TYPE: Insulated and Uninsulated ACTION: Ratchet INSULATED USE: Terminals 22 to 8 AWG NON-INSULATED USE: Terminals 6 to 1/0 AWG MANUFACTURER: NSi Industries PART NUMBER: RDC 1/0 UPC: 662381055309
CD6A
U-Type Compression Die - Pink 1/0 AWG Copper - 2 AWG Aluminum U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
F4-PS-W-NP
Non-Insulated Parallel Splice Connector For Wire Range #4 AWG, Circular Mil Range 33,100-52,600, Length 0.531 Diameter 0.41, Nickel Plated
AS-K1-H6
Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
1SNK705010R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
1SNK705030R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
E989NNJ-5-HD
Molded Junction Box, Length 4 Inch x Width 4 Inch x Depth 2 Inch, Material Polycarbonate, Color Gray
How to Install Aluminum Compression Lugs and Splices (Type ATL and ASP)
This guide provides step-by-step instructions for the safe and correct installation of Thomas & Betts Type ATL and ASP aluminum compression lugs and splices on stranded, compressed, or compact aluminum and copper conductors.
Estimated time: 15m
Tools needed:
Wire strippers, Wire brush, Crimping tool, Appropriate crimping dies
Supplies needed:
Aluminum compression lugs or splices (Type ATL or ASP), Aluminum or copper conductors
- Turn Off Power and Verify Connector Size
WARNING: ELECTRICAL HAZARD! TURN POWER OFF before beginning installation. Verify the wire size marked on the aluminum connector matches the actual cable size to be used.
- Strip Cable Insulation
Carefully strip the cable insulation from the conductor, ensuring no damage occurs to the conductor's strands.
- Wire Brush Conductor
Using a wire brush (e.g., T&B catalog number WWB1), thoroughly brush the conductor side that will be inserted into the connector to remove any oxidation.
- Insert Conductor
Fully insert the prepared conductor into the aluminum compression connector until it reaches the stop or is completely seated.
- Crimp the Connector
Refer to the 'Tool and Die Index' table to select the correct tool/die combination and the required number of crimps for your cable size. Perform the crimps as specified: for splices, make the first crimp just outside the knurl on each side of the center and space subsequent crimps uniformly; for lugs, make the first crimp at the inner end of the barrel and space subsequent crimps uniformly along the barrel.
- Clean Excess Inhibitor
Wipe off any excess oxide inhibitor that may have been expelled during the crimping process.
