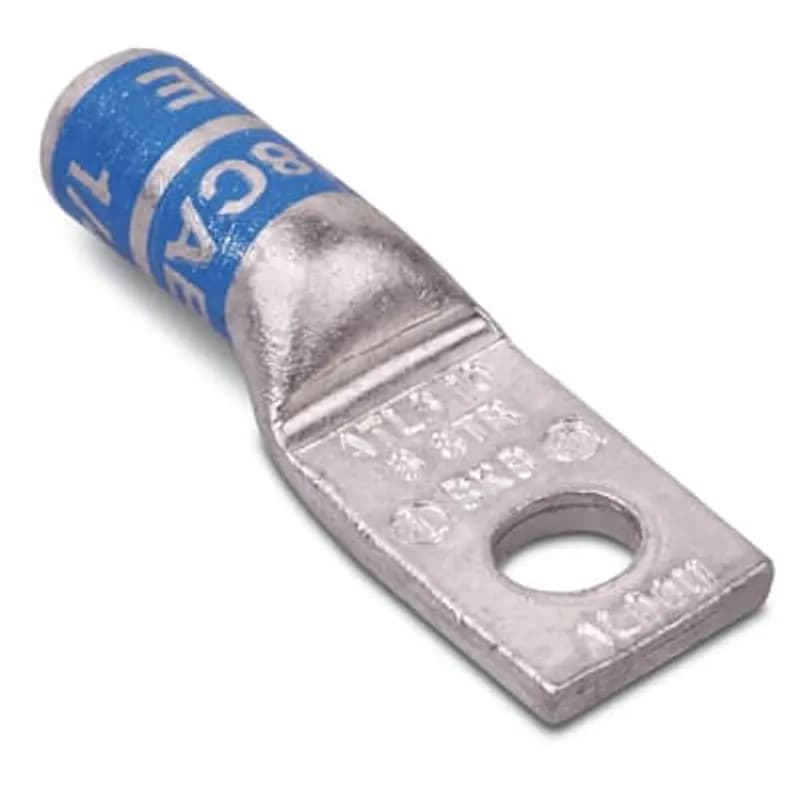

ABB Installation Products ATL20-38 Type ATL Aluminum One-Hole Lug, Max 35kV, Wire Size 2/0 Str, 3/8 Inch Bolt Hole, Tin…
UPC: 783786610976
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Rated for maximum voltage of 35kV
- Accommodates wire sizes up to 2/0 stranded copper or aluminum
- 3/8 inch bolt hole for standard mounting hardware
- Tin-plated aluminum construction for corrosion resistance and conductivity
- Olive die color code for easy identification and inventory management
Specifications
Cable Size | 2/0 AWG |
Color | Olive |
Connection Type | One-Hole Lug |
Material | Aluminum |
Number Of Holes | 1 |
Series | ATL20 |
Size | 2/0 Str, 3/8 Inch Bolt Hole |
Special Features | Made of high-conductivity seamless aluminum tubing. Tin plated for corrosion resistance |
Standard | UL E9809 |
Stud Size | 3/8 in |
Type | Aluminum One-Hole Lug |
Voltage Rating | 35 kV |
Package Dimensions (L x W x H) | 3.3 IN x 2.8 IN x 2.3 IN |
Package Dimensions (L x W x H) | 8.382 cm x 7.112 cm x 5.842 cm |
Package Weight (Imperial) | 0.0700 L |
Package Weight (Metric) | 0.0320 kg |
RDC1/0
Ratchet Drive Crimping Tool APPLICATIONS: Ratchet Drive Crimping Tool is for non-insulated terminals from 6 to 1/0 AWG and insulated terminals from 22 to 8 AWG. Rugged, compact, and lightweight. Requires minimum effort due to ratchet action, ensuring an excellent crimp every time. FEATURES: TYPE: Insulated and Uninsulated ACTION: Ratchet INSULATED USE: Terminals 22 to 8 AWG NON-INSULATED USE: Terminals 6 to 1/0 AWG MANUFACTURER: NSi Industries PART NUMBER: RDC 1/0 UPC: 662381055309
CD6A
U-Type Compression Die - Pink 1/0 AWG Copper - 2 AWG Aluminum U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
13682
Die for 12 Ton 13400 or 13642M Hydrualic Tool for Crimping 204210MT Dragon Tooth Terminals, Brown. .301/.289 Gaging
F4-PS-W-NP
Non-Insulated Parallel Splice Connector For Wire Range #4 AWG, Circular Mil Range 33,100-52,600, Length 0.531 Diameter 0.41, Nickel Plated
AS-K1-H6
Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
E989NNJ-5-HD
Molded Junction Box, Length 4 Inch x Width 4 Inch x Depth 2 Inch, Material Polycarbonate, Color Gray
1SNK705010R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
1SNK705030R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
Frequently Asked Questions
What is the bolt hole size on the ABB ATL20-38 lug?
The ABB ATL20-38 lug features a 3/8 inch bolt hole.
What is the maximum voltage rating for the ABB ATL20-38 lug?
The ABB ATL20-38 lug has a maximum voltage rating of 35kV.
What wire size does the ATL20-38 lug accommodate?
The ATL20-38 lug is designed to accommodate wire sizes up to 2/0 Stranded (Str).
What is the purpose of the tin plating on the ATL20-38 lug?
The tin plating on the ATL20-38 lug enhances its electrical performance and provides resistance to corrosion.
What does the Olive die color code signify on the ATL20-38 lug?
The Olive die color code on the ATL20-38 lug aids in identification and inventory management.
How to Install Aluminum Compression Lugs and Splices
This guide provides step-by-step instructions for the safe and proper installation of aluminum compression lugs and splices (Type ATL and ASP) for stranded, compressed, compact aluminum and copper conductors.
Estimated time: 30m
Tools needed:
Crimping tool, Wire brush, Wire strippers
Supplies needed:
Aluminum compression connector (Type ATL or ASP), Electrical cable (Aluminum or Copper conductor), Oxide inhibitor (if not pre-filled in connector)
- Turn Off Power
WARNING: ELECTRICAL HAZARD! Turn off all power to the circuit before beginning installation to prevent electrical shock or injury.
- Verify Connector and Wire Size
Check the wire size marked on the aluminum connector to ensure it matches the actual cable size to be used.
- Strip Cable Insulation
Carefully strip the cable insulation, avoiding any damage to the conductor's strands.
- Wire Brush Conductor
Thoroughly wire brush the conductor side that will be inserted into the connector. Use a T&B catalog number WWB1 wire brush or an equivalent.
- Insert Conductor
Fully insert the prepared conductor into the aluminum compression connector until it bottoms out.
- Crimp the Connector
Consult the provided Tool and Die Index to select the correct tool and die combination for your cable size. Crimp the connector the specified number of times as indicated in the chart. For splices, make the first crimp just outside the knurl on each side of the center and space subsequent crimps uniformly. For lugs, make the first crimp at the inner end of the barrel and space subsequent crimps uniformly along the barrel.
- Clean Excess Inhibitor
Wipe off any excess oxide inhibitor from the crimped connector.
