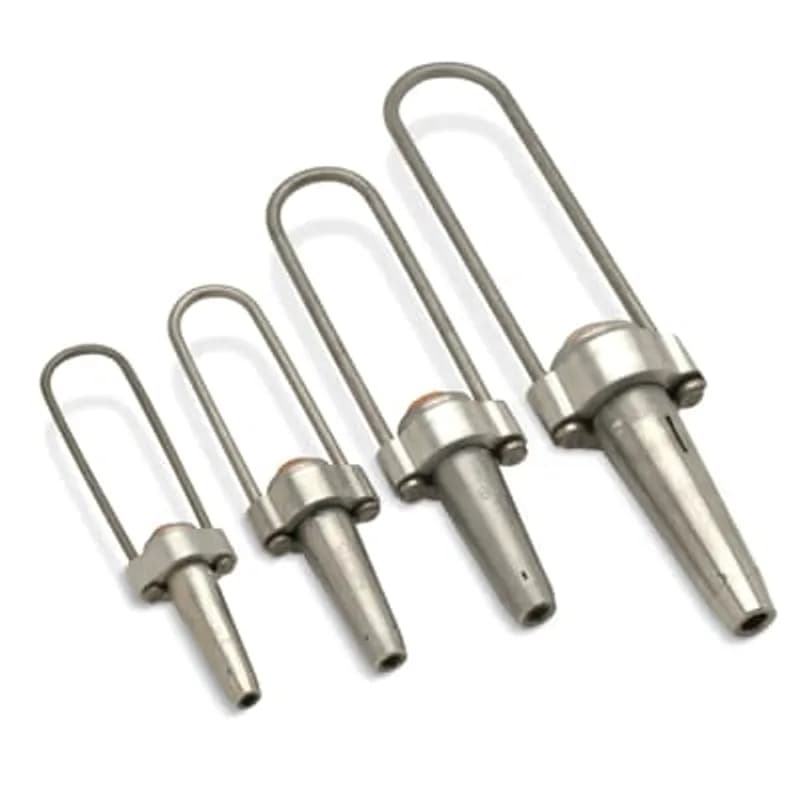

ABB Installation Products ATDG316ZB Tension Deadend, Autoset, Steel Strand, Strand Range 3/16 inch - 0.145 - 0.215…
UPC: 075114147934
Documents & Media
Contact for Pricing
Minimum Qty: 12
Multiplier: 12
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Autoset tension deadend for steel strand conductors
- Accommodates steel strand range: 3/16 inch - 0.145 - 0.215 inches (3.68-5.46 mm)
- Compatible with Grade Utilities, Common, Siemens-Martin, High-Strength steel strand
- 4M rated for utility applications
- ZB option includes galvanized steel clevis pin and stainless steel cotter pin for standard suspension insulator use
Specifications
Application | Clamp for Grade Utilities, Common and Siemens-Martin GuyStrand Wire |
Connection | Compression |
Housing Material | Cotter Pin;Stainless Steel Bail |
Insulation | None |
Size | Bail 6.520 inch long. Clamp Length 3.140 inch x .725 inch Diameter |
Special Features | Galvanized steel clevis pin and stainless steel cotter pin (included) enable the bail to be used with standard deadend suspension insulators. 4M rated (4000 pounds). High Strength |
Type | Tension Deadend |
Wire Size | 3/16 in , 3.68 to 5.46 mm |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.6400 L |
Package Weight (Metric) | 0.2900 kg |

GLE 2/0 N
Aluminum Two-Hole Compression Lug - Wire Size 2/0 Compressed or Compact, Length 5-9/32 inch, Pad width 1-9/64 inch x 3-1/8 inch long x 9/32 inch thick with (2) 9/16 inch Diameter Holes on 1-3/4 inch Center. Barrel 1-15/32 inch long. Dies CSA24, 702, 298. Oxide Inhibitor with Black Cap. Dual Rated for Aluminum and Copper Conductors
AL 350 N 24 HS
Aluminum Two-Hole NEMA Lugs - straight lug, 336.4 - 350 kcmil AL-CU, ACSR 266.8 (26/7) and 336.4 (18/1), installing dies 96, 299, 655, 1 1/8-1, 705, 13A. Length 24 inch. Pad 1-35/64 inch wide x 3-9/16 inch long x 23/64 inch thick. (2) 9/16 inch diameter holes on 1-3/4 inch centers. Barrel 19-5/8 inch x 1-7/64 inch Outside Diameter. Oxide Inhibitor. Brown Cap. Includes FloodSeal Insulating Sleeve, Silicone Grease Pack and Heat Shrink.
SAL 1000-4 N 45
Aluminum Four-Hole NEMA Lugs - common die series, Compact 1000 kcmil AL, ACSR 795 (30/19) and 874 (54/7), installing dies 140H, 301, 342, 1 1/2. Length 8-3/4 inch before bending. Pad 3 inch wide x 3-1/2 inch long x 1/2 inch thick, (4) 9/16 diameter holes on 1-3/4 inch centers. Barrel 4-7/16 inch. Oxide Inhibitor, Brown Cap.
CAB 350 NTN
Tin Plated Aluminum Compression Lug, 336.4 - 350 kcmil AL-CU, 266.8(26/7) and 336.4 (18/1) ACSR. Dies 1 1/8-1, 13A, 321, 96, 299. 855. Bolt size 1/2 inch, Length 7-1/8 inch. Pad 1-3/4 inch wide x 3-1/8 inch long x 27/64 inch thick. (2) 9/16 inch holes on 1-3/4 inch centers. Barrel 3-1/16 inch long. Oxide Inhibitor. Brown Cap.
AL 500 N 608
Aluminum Two-Hole NEMA Lugs - straight lug, 477-500 kcmil and 500-600 Compact AL-CU and ACSR 397.5 (26/7) and 477 (18/1), installing dies 608, 786, 722, 936. Length 8-1/4 inch. Pad 1-3/4 inch wide x 3-9/16 inch long x 29/64 inch thick. Barrel 3-5/16 inch long x 1-1/2 inch Outside Diameter. (2) 9/16 inch diameter holes on 1-3/4 inch centers. Oxide Inhibitor. Piink Cap.
AAT 350-350
Aluminum Compression Tee, Main 4/0 Stranded - 350 kcmil, Tap 4/0 Stranded to 350 kcmil. Use VC 6 Installation Tool. Length 6-53/64 inch. Outside Diameter 1-7/64 inch. Oxide Inhibitor. Brown Caps.
ASL 600 NK
Aluminum Two-Hole NEMA Lug Kit Containing Both a Standard Two-Hole NEMA Lug (AL 600 N) and a Stacking Two-Hole NEMA Lug (ASL 600 N). 600 kcmil AL-CU, 550 kcmil, ACSR 477 (26/7) and 556.5 (18/1), Installing Dies 1 5/16, 115H, 786, 936, 473.
ASL 4/0 NK
Aluminum Two-Hole NEMA Lug Kit Containing Both a Standard Two-Hole NEMA Lug (AL 4/0 N) and a Stacking Two-Hole NEMA Lug (ASL 4/0 N). 4/0 Stranded AL-CU, 250 Compact, Installing dies TX, 71H, W660, U28ART.How to Install ATDG Automatic Steel Strand Splices
This guide provides step-by-step instructions for the safe and proper installation of ATDG automatic steel strand splices, ensuring secure connections for common, high strength, galvanized, and aluminized steel strands.
Estimated time: 15m
Tools needed:
Sharp Cable Cutters
Supplies needed:
Electrical Tape
- Prepare Work Area and Components
Ensure all apparatus is de-energized before beginning installation or removal of any parts. Inspect the package contents for completeness and damage. Verify all components fit properly with the strand and mating products. Have all required tools ready and maintain cleanliness throughout the procedure.
- Prepare Steel Strand Ends
Straighten the strand end to ensure easy installation and prevent jaw malfunction. If the strand is deformed or out of lay, trim the end to provide a straight and square segment. If not using sharp cable cutters, tape the strand before cutting, then remove the tape after cutting.
- Mark Strand for Full Insertion
Using the automatic splice as a gauge, apply tape or make a mark on the strand to indicate the full insertion depth (half the splice length). This mark will help verify proper insertion later.
- Insert First Strand
Remove any remaining tape from the strand end. Place the prepared strand end into the pilot cup (strand guide) at the tip of the splice cartridge. With a smooth, straight thrust, push the strand into the cartridge until it bottoms out. Pull on the strand by hand to set the internal jaws. Verify full insertion by checking the position of the tape/mark applied in Step 3; if the mark is more than 1/2 inch away from the tip of the cartridge, the strand is not properly installed and must be re-inserted.
- Insert Second Strand and Apply Tension
Repeat Steps 3 and 4 for the other side of the splice, ensuring the second strand is also fully inserted and the jaws are set. Once both strands are securely in place, apply tension as required to complete the installation, ensuring the strand holds firmly inside the cartridge.
