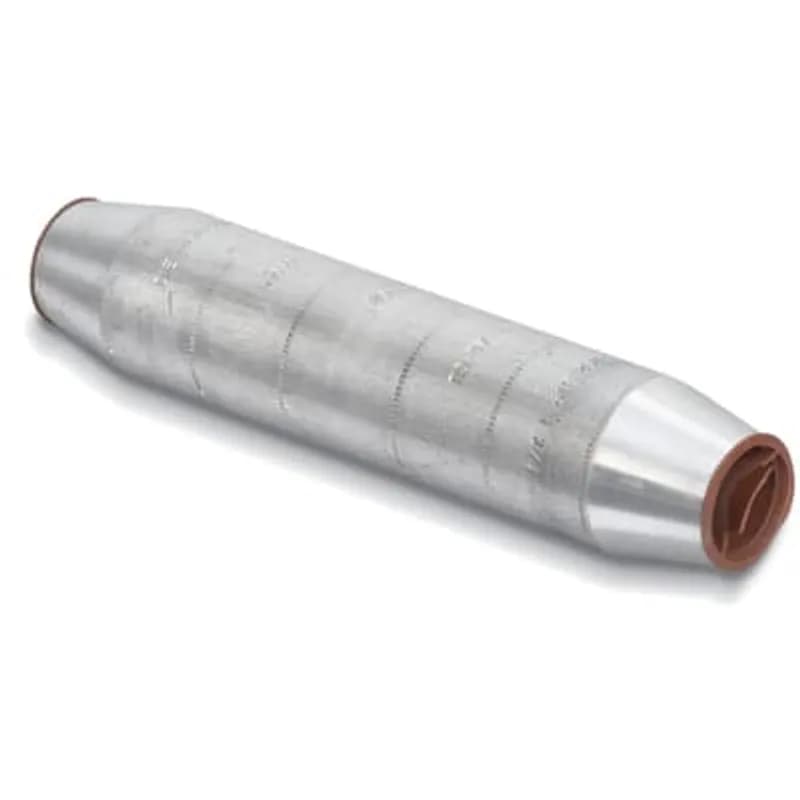

ABB Installation Products ATC 1500 Aluminum Tapered Splices, 1500 kcmil AL-CU, installing dies 189R, 478, L46ART. Length…
UPC: 783786697120
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Designed for 1500 kcmil AL-CU conductors
- Features Oil Stop for contamination prevention
- Includes Oxide Inhibitor for enhanced conductivity
- Compatible with installing dies 189R, 478, L46ART
- 9-3/4 inch length, 2-1/4 inch outside diameter
Specifications
Application | Tapered ends enable use in High-Voltage Applications up to 69kV |
Color | Yellow |
Conductor Range | 1500 kcmil |
Connection | Compression |
Connection Type | Splices |
Current Rating | 1500 kcmil |
Finish | Bare |
Insulation | None |
Material | Aluminum |
Material | Aluminum-Copper |
Number Of Conductors | 2 |
Series | ATC |
Size | 9-3/4 inch (Length) x 2-1/4 inch (Diameter) |
Size | Length 9-3/4 inches |
Special Features | Dual-Rated. Use with aluminum and copper conductors. Solid Center Stop assures proper cable insertion. Conductor bores coated with oxide inhibitor to prevent oxidation. All Splices marked with Die References for Easy Identification |
Standard | ANSI C119.4 |
Type | Compression Splice Tapered |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 2.0900 L |
Package Weight (Metric) | 0.9480 kg |
ASC 1500
Aluminum Straight Splices, 1500 kcmil AL-CU, installing dies 189, 478, 728. Length 6-1/2 inch x 2-1/4 inch Outside Diameter. Oil Stop. Oxide Inhibitor. Yellow Caps.
PTO-750
Offset Pin Terminal 750 MCM All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The pin is offset for use in tight spaces and for ease of installation in side-by-side terminations. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.
ATC 300
Aluminum Tapered Splices, 300 kcmil AL-CU, installing dies 1, TH, 87H, 470, 251, 12A. Length 4-5/16 inch. Outside Diameter 1 inch. Oil Stop. Oxide Inhibitor. Blue Caps.
ATC 2/0 R 1/0
Aluminum Tapered Reducing Splices, 2/0 Stranded AL-CU to 1/0 Stranded AL-CU, installing dies TX, 76, 249, 840, 11A. Length 4 inch, Outside Diameter 29/32 inch. Oil Stop. Oxide Inhibitor. Gray Cap. Yellow Cap.
ASC 250 TN
Tin Plated Aluminum Straight Splices, 250 kcmil AL9CU UL listed, 4/0 Stranded ACSR, 120 MM2, 300 kcmil Compact, Installing dies TX, 76, 249, 840, 11A. Length 3 inch x 29/32 inch Outside Diameter. Oil Stop. Oxide Inhibitor. Red Caps.ATC 350 R 2
Aluminum Tapered Reducing Splices, 350 kcmil AL-CU to #2 Stranded AL-CU, installing dies 96, 299, 655, 1 1/8-1, 13A. Length 4-15/16 inch. Outside Diameter 1-1/8 inch. Oil Stop. Oxide Inhibitor. Brown Cap. Red Cap.ASC 300 TN
Tin Plated Aluminum Straight Splices, 300 kcmil AL9CU UL listed, 266.8 kcmil, 150 MM2, ACSR 266.8 (18/1), 350 Compact, installing dies TH, 87H, 251, 470, 12A, 1. Length 3-1/8 inch x 1 inch Outside Diameter. Oil Stop. Oxide Inhibitor. Blue Caps.Frequently Asked Questions
What conductor sizes is the ATC 1500 splice for?
The ABB ATC 1500 splice is designed for 1500 kcmil AL-CU (Aluminum-Copper) conductors.
What installing dies are compatible with the ATC 1500?
The ATC 1500 splice is compatible with installing dies 189R, 478, and L46ART.
What is the length of the ATC 1500 splice?
The ABB ATC 1500 splice has a length of 9-3/4 inches.
What is the outside diameter of the ATC 1500 splice?
The outside diameter of the ABB ATC 1500 splice is 2-1/4 inches.
Does the ATC 1500 splice have an oxide inhibitor?
Yes, the ABB ATC 1500 splice features an oxide inhibitor to maintain electrical integrity.
What is the purpose of the oil stop feature?
The oil stop feature on the ATC 1500 splice prevents conductor contamination.
What do the yellow caps on the ATC 1500 signify?
The yellow caps on the ABB ATC 1500 indicate its specific application and compatibility.
