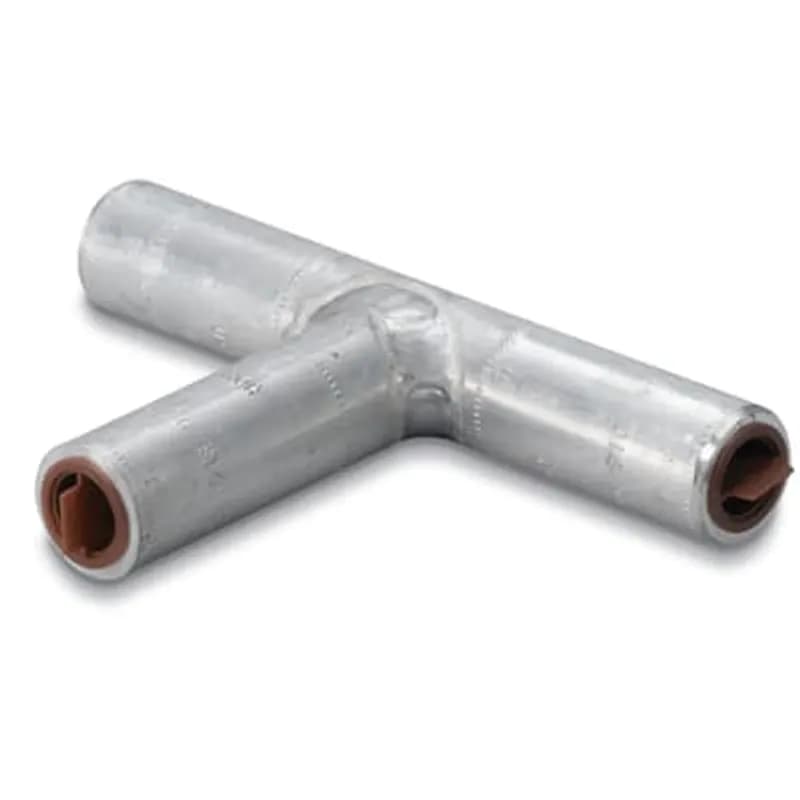

ABB - Installation Products AT 4/0-4/0 - Aluminum Tees, Main 4/0 Stranded AL-CU, Tap 4/0 Stranded AL-CU. Main Length 3 inch x 29/32 inch outside Diameter, Total Tap Length 6 inch x 29/32 inch outside Diameter. Dies TX, 76, 249, 840, 11A. Oxide Inhibitor. Pink Caps. With Dimple.

ABB Installation Products AT 4/0-4/0 Aluminum Tees, Main 4/0 Stranded AL-CU, Tap 4/0 Stranded AL-CU. Main Length 3 inch x…

UPC: 783786556977

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 54

Multiplier: 54

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

This tee connector accommodates main and tap conductors both rated 4/0 AWG stranded aluminum-copper, ensuring compatibility with standard 29/32" outside diameter (OD) cables. The main conductor length measures 3 inches, while the tap branch extends 6 inches, providing flexibility in tight junction box installations. The connector features TX dies (76, 249, 840, 11A) for precise compression, ensuring a gas-tight, corrosion-resistant joint that meets NEC requirements for aluminum-to-copper transitions. Integrated oxide inhibitor paste prevents galvanic corrosion, extending service life in harsh environments. Distinctive pink caps identify the connector for quick visual verification during installation and maintenance. A factory-applied dimple ensures proper alignment and compression force distribution, eliminating guesswork during crimping. This product is ideal for power distribution panels, switchgear, and renewable energy systems where reliable, code-compliant conductor taps are required. Compatible with standard hydraulic or battery-powered crimping tools, the AT 4/0-4/0 simplifies field installations while maintaining long-term electrical integrity.
  • Accommodates 4/0 AWG stranded AL-CU main and tap conductors
  • Main length: 3" x 29/32" OD, Tap length: 6" x 29/32" OD
  • TX dies (76, 249, 840, 11A) for precise compression
  • Oxide inhibitor, pink caps, and factory dimple included

Specifications

Application
For Aluminum and Copper Connections
Color
Pink
Connection
Compression
Finish
Uncoated
Housing Material
Aluminum
Housing Material
Aluminium
Insulation
None
Material
Aluminum
Series
AT
Size
6 inch long
Size
4/0 Stranded AL-CU
Special Features
Dual rated for use with Aluminum and Copper Conductors. All Tees marked with conductor sizes and die references for easy installation. Connector bores coated with oxide inhibitor to prevent oxidation
Standard
ANSI C119.4
Type
Tee, Compression
Wire Size
4/0 AWG
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.3500 L
Package Weight (Metric)
0.1590 kg
