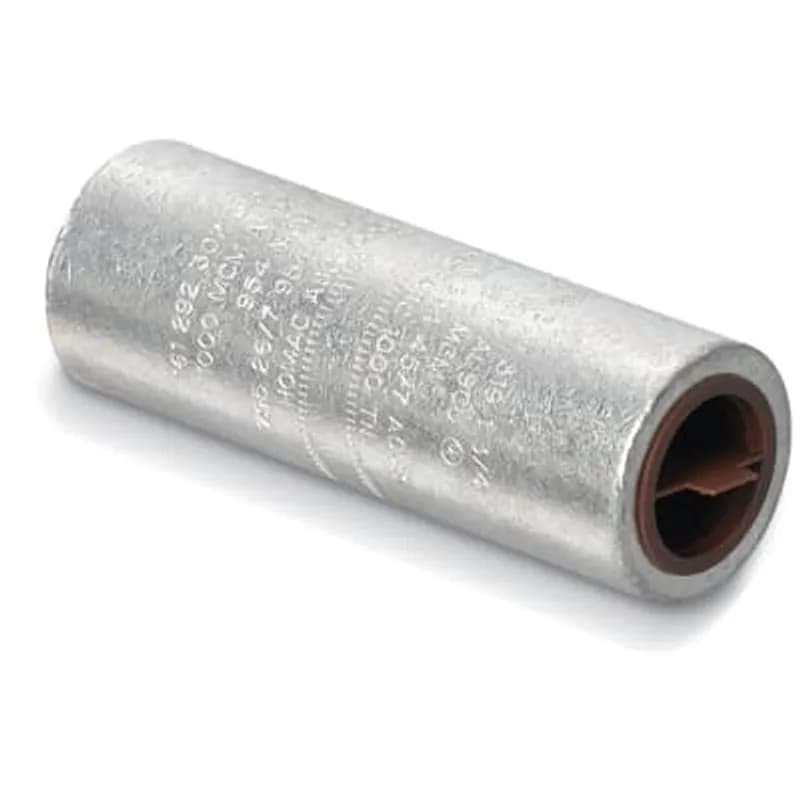

ABB - Installation Products ASC 1250 - Aluminum Straight Splices, 1250 kcmil AL-CU, installing dies 161, 727, 352, 1 7/8. Length 8 inch x 2 inch outside Diameter. Oil Stop. Oxide Inhibitor. Yellow Caps.
ABB - Installation Products

ASC 1250

UPC: 783786695782

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 15

Multiplier: 15

*Contact for lower quantities*

Overview

ABB ASC 1250 Aluminum Straight Splices are precision-engineered connectors specifically designed for joining 1250 kcmil aluminum and copper conductors. These splices are engineered to ensure reliable electrical continuity, featuring a substantial 8-inch length and a robust 2-inch outside diameter. The integrated oil stop feature is crucial for preventing fluid ingress into the splice, thereby maintaining the integrity of the connection. Furthermore, the incorporated oxide inhibitor is vital for preserving low-resistance electrical connections throughout the lifespan of the splice, combating the effects of oxidation. The ASC 1250 is compatible with a range of installing dies, including 161, 727, 352, and 1 7/8, offering flexibility in application. The distinctive yellow caps serve a dual purpose: providing clear visual identification of the splice type and offering protection during the installation process. These straight splices are engineered for demanding applications where consistent performance is paramount.
  • For 1250 kcmil aluminum and copper conductors
  • 8-inch length with 2-inch outside diameter
  • Oil stop and oxide inhibitor for long-term reliability
  • Compatible with installing dies 161, 727, 352, and 1 7/8
  • Yellow caps for visual identification and protection

Specifications

Application
For General Applications
Conductor Range
1250 kcmil
Connection
Compression
Finish
Bare
Insulation
None
Material
Aluminum
Number Of Conductors
2
Special Features
Solid Center Stop ensures proper cable insertion. Made from Aluminum which provides high strength and high conductivity. Dual-rated. Use with Aluminum and Copper conductors. Prefilled with oxide inhibitor to prevent oxidation and keep out moisture. All splices marked with conductor sizes and die reference for easy identification
Type
Compression Splice
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.4600 L
Package Weight (Metric)
0.6620 kg
Tin Plated Aluminum Straight Compression Splice for Aluminum and Copper Conductors, 1250 kcmil AL-CU. Installing Dies 161, 727 , 352, 1 7/8. Length 6-1/2 inch . Outside Diameter 1-31/32 inch. Oil Stop. Oxide Inhibitor. Yellow Caps.

ASC 1250-6.5 TN

Tin Plated Aluminum Straight Compression Splice for Aluminum and Copper Conductors, 1250 kcmil AL-CU. Installing Dies 161, 727 , 352, 1 7/8. Length 6-1/2 inch . Outside Diameter 1-31/32 inch. Oil Stop. Oxide Inhibitor. Yellow Caps.
Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.

AS-K1-H6

Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
Aluminum splice, type SA, tin plated, 3/0 AWG.

SA3/0-5

Aluminum splice, type SA, tin plated, 3/0 AWG.
Aluminum Straight Splices, 6 Stranded AL9CU UL listed, installing dies TP, 29, 161, 5/16. Length 1-5/8 inch x 11/32 inch Outside Diameter. Oil Stop. Oxide Inhibitor. Blue Cap, Gray Cap.

ASC 6

Aluminum Straight Splices, 6 Stranded AL9CU UL listed, installing dies TP, 29, 161, 5/16. Length 1-5/8 inch x 11/32 inch Outside Diameter. Oil Stop. Oxide Inhibitor. Blue Cap, Gray Cap.
Copper Flood-Seal Street and Highway Lighting Compression Non-Fused Kits - In-Line, Single Housing, wire size stranded 4 and solid 2

SDK 2

Copper Flood-Seal Street and Highway Lighting Compression Non-Fused Kits - In-Line, Single Housing, wire size stranded 4 and solid 2
Aluminum 2-3/4 inch Service Entrance Compression Splice for Wire Range, End A: 4 ACSR, 3-4 Stranded, 2 Solid, Brown, End B: 10 Stranded, 8 Solid, Brown, Die: 5/8. For AL to AL or AL to CU Conductors.

UOBR 41

Aluminum 2-3/4 inch Service Entrance Compression Splice for Wire Range, End A: 4 ACSR, 3-4 Stranded, 2 Solid, Brown, End B: 10 Stranded, 8 Solid, Brown, Die: 5/8. For AL to AL or AL to CU Conductors.
Insulated Aluminum Service Entrance Compression Splices - Conductor A: Orange, 4 ACSR, 4 Stranded, 2 Solid, Conductor B: Brown, 10 Stranded, 8 Solid, For AL to AL or AL to CU Conductors. Splice only 2-1/8 inch x 37/64 inch Diameter. Splice with Sleeve and Caps 3-1/4 inch x 47/64 inch Diameter. Oil Stop. Installing Dies: CSA-22, 5/8, TU, BG.

U 1 N 41

Insulated Aluminum Service Entrance Compression Splices - Conductor A: Orange, 4 ACSR, 4 Stranded, 2 Solid, Conductor B: Brown, 10 Stranded, 8 Solid, For AL to AL or AL to CU Conductors. Splice only 2-1/8 inch x 37/64 inch Diameter. Splice with Sleeve and Caps 3-1/4 inch x 47/64 inch Diameter. Oil Stop. Installing Dies: CSA-22, 5/8, TU, BG.
Insulated Aluminum Service Entrance Compression Splices - Conductor A: Blue, 6 ACSR, 6 Stranded, 4 Solid, Conductor B: Brown, 10 Stranded, 8 Solid, For AL to AL or AL to CU Conductors. Splice only 2-1/8 inch x 37/64 inch Diameter. Splice with Sleeve and Caps 3-1/4 inch x 47/64 inch Diameter. Oil Stop. Installing Dies: CSA-22, 5/8, TU, BG.

U 1 N 61

Insulated Aluminum Service Entrance Compression Splices - Conductor A: Blue, 6 ACSR, 6 Stranded, 4 Solid, Conductor B: Brown, 10 Stranded, 8 Solid, For AL to AL or AL to CU Conductors. Splice only 2-1/8 inch x 37/64 inch Diameter. Splice with Sleeve and Caps 3-1/4 inch x 47/64 inch Diameter. Oil Stop. Installing Dies: CSA-22, 5/8, TU, BG.

Frequently Asked Questions

What conductor sizes does the ASC 1250 support?

The ASC 1250 is designed for 1250 kcmil aluminum and copper conductors.

What is the outside diameter of the ASC 1250?

The outside diameter of the ASC 1250 is 2 inches.

What is the length of the ASC 1250 splice?

The ASC 1250 splice has an 8-inch length.

What installing dies are compatible with the ASC 1250?

The ASC 1250 is compatible with installing dies 161, 727, 352, and 1 7/8.

What features prevent contamination in the ASC 1250?

The ASC 1250 includes an oil stop and oxide inhibitor to prevent fluid ingress and corrosion.

What is the purpose of the yellow caps on the ASC 1250?

The yellow caps provide visual identification and protection during installation.
