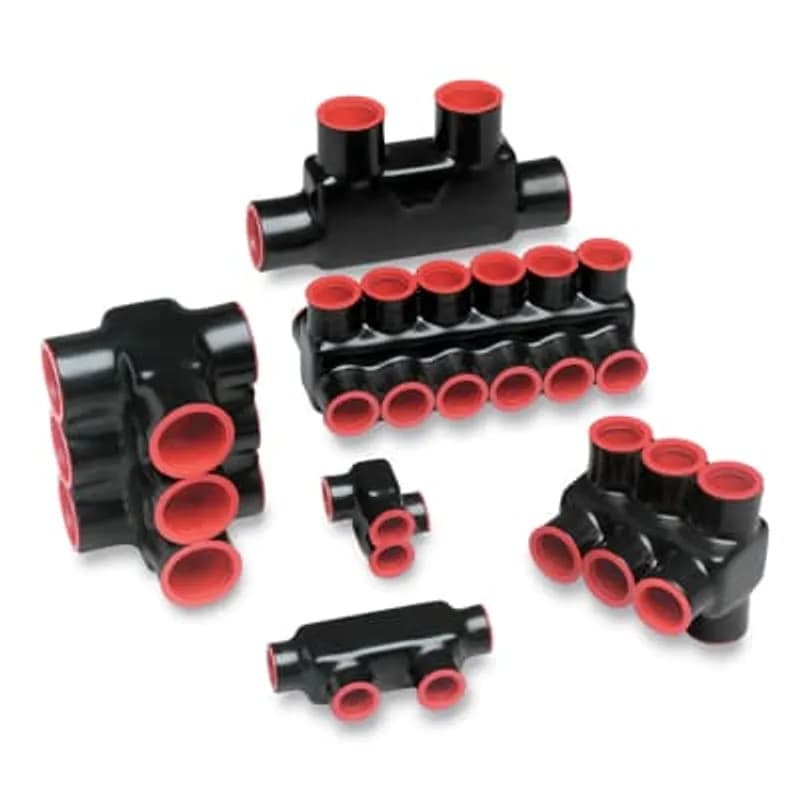

ABB - Installation Products AMTS20144 - AMT 4 Multi-Port Same Side PVC Connector, Ultraviolet Resistant, Wire Range 2/0-14 Str, Length 3.08 Inches, Width 1.50 Inches, Height 1.63 Inches, Hex Size 3/16 Inch, Black Insulation

ABB Installation Products AMTS20144 AMT 4 Multi-Port Same Side PVC Connector, Ultraviolet Resistant, Wire Range 2/0-14 Str…

UPC: 075114311748


Documents & Media
BrochureManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB AMT 4 Multi-Port Same Side PVC Connector (SKU: AMTS20144) is a compact, multi-port electrical connector engineered for efficient wire termination in industrial and commercial applications. Designed for stranded wire ranging from 2/0 AWG to 14 AWG, this connector supports up to four ports, all positioned on the same side for streamlined cable management and space optimization in tight enclosures. The connector's dimensions measure 3.08 inches in length, 1.50 inches in width, and 1.63 inches in height, making it ideal for installations where panel space is limited. Constructed from ultraviolet (UV) resistant PVC, the AMT 4 ensures long-term performance in outdoor or high-exposure environments without degradation from sunlight or weathering. The black insulation provides clear visual identification and adheres to standard industry color-coding practices. Installation is simplified with a 3/16 inch hex size for secure fastening, ensuring reliable mechanical and electrical connections. This connector is part of the AMT Multi-Port Same Side series, which is widely used in electrical distribution systems, control panels, and machinery wiring. Its design facilitates organized wiring layouts, reducing clutter and improving maintenance access. The AMT 4 is suitable for applications in manufacturing plants, commercial buildings, and industrial facilities where dependable wire joining solutions are critical. The connector's compact footprint and multi-port configuration make it a versatile choice for both new installations and retrofit projects. Key specifications include a wire range of 2/0-14 AWG stranded, a hex size of 3/16 inch, and a standard package quantity of 6 units. The connector's UV resistance and durable PVC construction ensure reliable operation in challenging conditions, while its straightforward installation process minimizes downtime during deployment.
  • Multi-port design with all ports on the same side for organized wiring
  • Supports stranded wire range: 2/0 AWG to 14 AWG
  • UV-resistant PVC construction for outdoor and high-exposure applications
  • Compact dimensions: 3.08" L x 1.50" W x 1.63" H
  • Hex size: 3/16 inch for secure fastening

Specifications

Color
Black
Material
PVC
Series
AMT Multi-Port Same Side
Size
3.08 x 1.50 x 1.63 Inches
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.1800 L
Package Weight (Metric)
0.0820 kg
Insulation Piercing Connector 750 MCM - 3/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.

IPCS7501

Insulation Piercing Connector 750 MCM - 3/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.
Copper C-Tap for 600V Applications, Wire Range Main: 2-1/0, Branch 2-12, Length 1-1/16 Inches, Height 31/32 Inch, Tin Plated, Die Code 50, Die Color Code Orange

54740TP

Copper C-Tap for 600V Applications, Wire Range Main: 2-1/0, Branch 2-12, Length 1-1/16 Inches, Height 31/32 Inch, Tin Plated, Die Code 50, Die Color Code Orange
Powertap Wedge With Shell - 350 Kcmil Tap, Wire Combinations 350 - 6

PT-35000-K

Powertap Wedge With Shell - 350 Kcmil Tap, Wire Combinations 350 - 6
Powertap Wedges with Shell, Aluminum - Bare Finish, Wire Range 795 Kcmil Tap, Wire Combinations 795-795 kcmil. Compound on Wedge and C-Frame. Uses Shell PT-Yellow.

PT-79500-K

Powertap Wedges with Shell, Aluminum - Bare Finish, Wire Range 795 Kcmil Tap, Wire Combinations 795-795 kcmil. Compound on Wedge and C-Frame. Uses Shell PT-Yellow.
Powertap Wedge With Shell, Aluminum - Bare Finish, Wire Range 350 - 556 Kcmil Tap, Wire Combinations 336.4 kcmil - #4. Compound on Wedge and C-Frame. Uses Shell PT-Yellow.

PT-33608-K

Powertap Wedge With Shell, Aluminum - Bare Finish, Wire Range 350 - 556 Kcmil Tap, Wire Combinations 336.4 kcmil - #4. Compound on Wedge and C-Frame. Uses Shell PT-Yellow.
Powertap Wedge With Shell, Aluminum - Bare Finish, Wire Range 350 Kcmil Tap, Wire Combinations 350 - 2/0. Compound on Wedge and C-Frame. Uses Shell PT-Blue.

PT-35004-K

Powertap Wedge With Shell, Aluminum - Bare Finish, Wire Range 350 Kcmil Tap, Wire Combinations 350 - 2/0. Compound on Wedge and C-Frame. Uses Shell PT-Blue.
Powertap Wedges with Shell, Aluminum - Bare Finish, Wire Range 795 Kcmil Tap, Wire Combinations 795-636 kcmil. Compound on Wedge and C-Frame. Uses Shell PT-Yellow.

PT-79502-K

Powertap Wedges with Shell, Aluminum - Bare Finish, Wire Range 795 Kcmil Tap, Wire Combinations 795-636 kcmil. Compound on Wedge and C-Frame. Uses Shell PT-Yellow.
Powertap Wedge With Shell, Aluminum - Bare Finish, Wire Range 350 - 556 Kcmil Tap, Wire Combinations 336.4 kcmil - #2. Compound on Wedge and C-Frame. Uses Shell PT-Yellow.

PT-33607-K

Powertap Wedge With Shell, Aluminum - Bare Finish, Wire Range 350 - 556 Kcmil Tap, Wire Combinations 336.4 kcmil - #2. Compound on Wedge and C-Frame. Uses Shell PT-Yellow.

Frequently Asked Questions

What type of screw is used on the AMTS20144 connector?

The AMTS20144 connector uses a 3/16 Hex screw type.

What material are these multi-tap connectors made from?

These connectors are made from insulated aluminum.

What type of insulation is used for these connectors?

The connectors feature PVC insulation, available in clear or black.

Is additional taping required for these connectors during installation?

No, the PVC insulation provides built-in insulation, eliminating the need for taping.

What are the ideal applications for these multi-tap connectors?

They are ideal for both commercial and industrial applications.

Are these connectors compatible with both aluminum and copper conductors?

Yes, they are dual-rated for use with either aluminum or copper conductors.

What specifications do the clear PVC insulated versions meet?

Clear PVC insulated versions meet or exceed ANSI C119.4 specifications.

Are the black UV-resistant PVC insulated versions UL listed?

Yes, the black UV-resistant PVC insulated versions are UL listed.

What is the wire range for the AMTS20144 cable block?

The AMTS20144 cable block supports 2/0–#14 AWG stranded wire.

What are the physical dimensions of the AMTS20144 connector?

The AMTS20144 measures 3.08 in length, 1.50 in width, and 1.63 in height.
