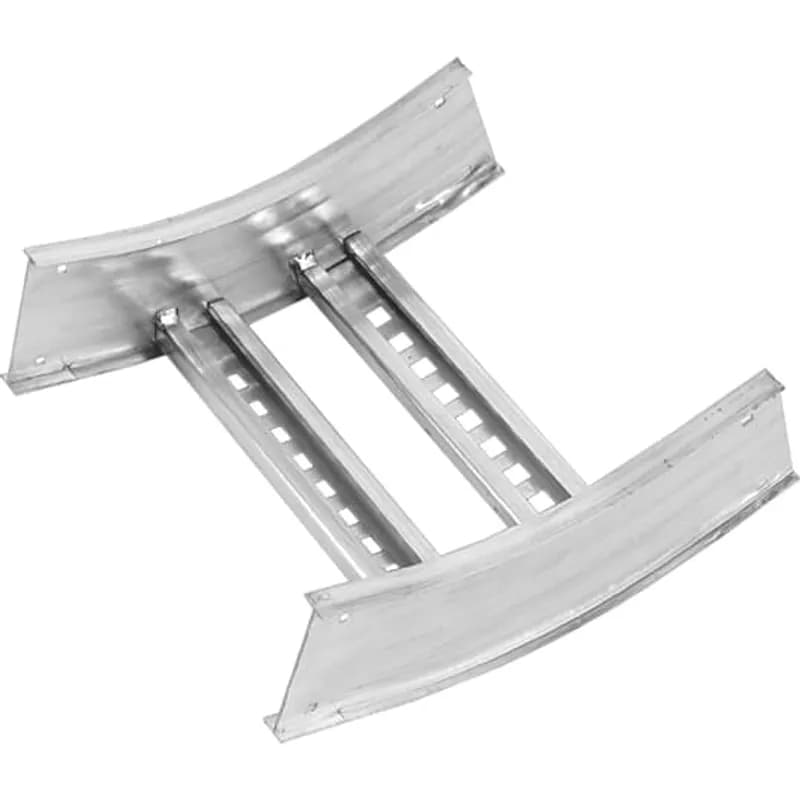

ABB - Installation Products AMS636LVI3024 - Aluminum fitting 6 inches side rail height 36 inches width ladder vertical inside 30 degree 24 inches radius

ABB Installation Products AMS636LVI3024 Aluminum fitting 6 inches side rail height 36 inches width ladder vertical inside 30…

UPC: 785055631170


Documents & Media
Video ClipManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB AMS636LVI3024 is a high-quality aluminum fitting designed for robust cable management systems. Manufactured by ABB Installation Products, this fitting is engineered to provide secure and organized routing for electrical cables and conduits. Its construction from durable aluminum ensures longevity and resistance to environmental factors, making it suitable for various industrial and commercial installations. Key specifications include a side rail height of 6 inches and a width of 36 inches, offering substantial capacity for cable runs. The 'Vertical Inside' mounting type indicates its application within vertical cable ladder systems, facilitating clean and efficient internal routing. This specific model features a 30-degree angle transition with a 24-inch radius, crucial for maintaining cable integrity by preventing sharp bends and reducing stress on conductors. The series designation AMS636LVI3024 precisely identifies this unique configuration within ABB's product line. This fitting is an integral component for maintaining organized and safe electrical infrastructure. Its aluminum material offers a good strength-to-weight ratio and corrosion resistance. The dimensions are optimized for standard industrial cable ladder widths, ensuring compatibility with existing systems. The 30-degree vertical inside bend with a 24-inch radius is particularly useful for navigating corners and changes in direction within vertical pathways, ensuring that cables are not subjected to excessive strain or damage. This attention to detail in design supports the overall reliability and performance of the electrical installation. The UNSPSC code 39131705 categorizes this product under electrical fittings, further defining its industrial application. The SKU AMS636LVI3024 serves as a unique identifier for this specific ABB part number.
  • Material: Durable Aluminum construction
  • Dimensions: 6 inches side rail height, 36 inches width
  • Mounting Type: Vertical Inside for internal routing
  • Configuration: 30-degree angle with a 24-inch radius
  • Manufacturer: ABB Installation Products

Specifications

Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
9.2500 L
Package Weight (Metric)
4.1960 kg
