ABB - Installation Products ALS4 - Aluminum Two-Hole Lug - Straight Long Barrel, Wire Range 2 ASCR, 1-2 Stranded, 1-2 Compact, 1/2 Inch Bolt Size, Blind-End, Mechanical Dies: 840, K840, 845, TX, Hydraulic Dies: 840, B49EA, EEI 11A, K840, 249, 76, CSA24. For Aluminum and Copper Conductors
ABB - Installation Products

ALS4

UPC: 783786050697

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Overview

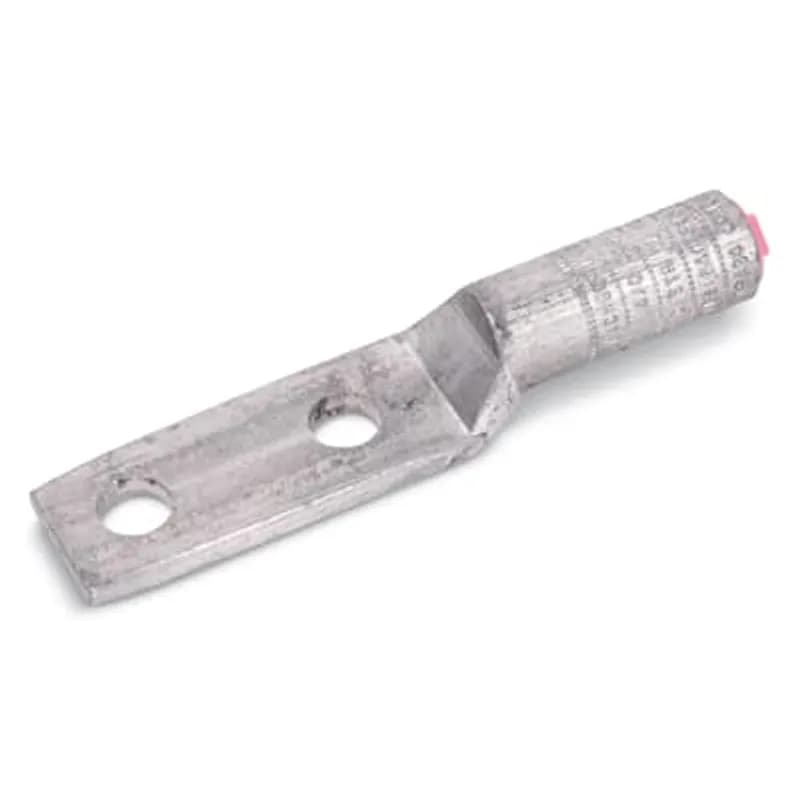

The ABB ALS4 is a two-hole aluminum lug designed for reliable electrical connections. Manufactured by ABB - Installation Products, this lug features a long barrel construction for enhanced conductor termination. It is specified for wire ranges including 2 ASCR, 1-2 Stranded, and 1-2 Compact aluminum conductors. The lug accepts a 1/2 inch bolt size, ensuring compatibility with standard hardware. Its blind-end design prevents conductor push-back, contributing to a secure connection. The ALS4 is compatible with a range of mechanical dies, including 840, K840, 845, TX, and hydraulic dies such as 840, B49EA, EEI 11A, K840, 249, and 76, as well as CSA24. This versatility in tooling ensures efficient installation across different systems. The lug is suitable for both aluminum and copper conductors, offering flexibility in application. This product is identified by SKU ALS4 and UNSPSC code 39121405.
  • Two-hole aluminum lug with long barrel construction
  • Wire Range: 2 ASCR, 1-2 Stranded, 1-2 Compact
  • Bolt Size: 1/2 Inch
  • Blind-end design for secure termination
  • Compatible with multiple mechanical and hydraulic dies

Specifications

Application
For Aluminum and Copper Conductor
Cable Size
#2 ASCR AWG , #1 to #2 STR AWG , #1 to #2 COMPT AWG
Connection
Compression
Connection Type
Two-Hole Lug
Material
Aluminum
Mounting
NEMA Standard Mounting Holes
Mounting Type
Blind-End
Number Of Holes
2
Size
1/2 Inch Bolt Size
Special Features
PreFilled with Compound. Complete Die and Crimp information clearly indented on each lug. Installed with standard tools and dies. Use 1/2 inch mounting hardware for all sizes
Type
Compression Connector
Package Dimensions (L x W x H)
6.8 IN x 5.3 IN x 4.69 IN
Package Dimensions (L x W x H)
17.272 cm x 13.462 cm x 11.9126 cm
Package Weight (Imperial)
0.2000 L
Package Weight (Metric)
0.0910 kg
