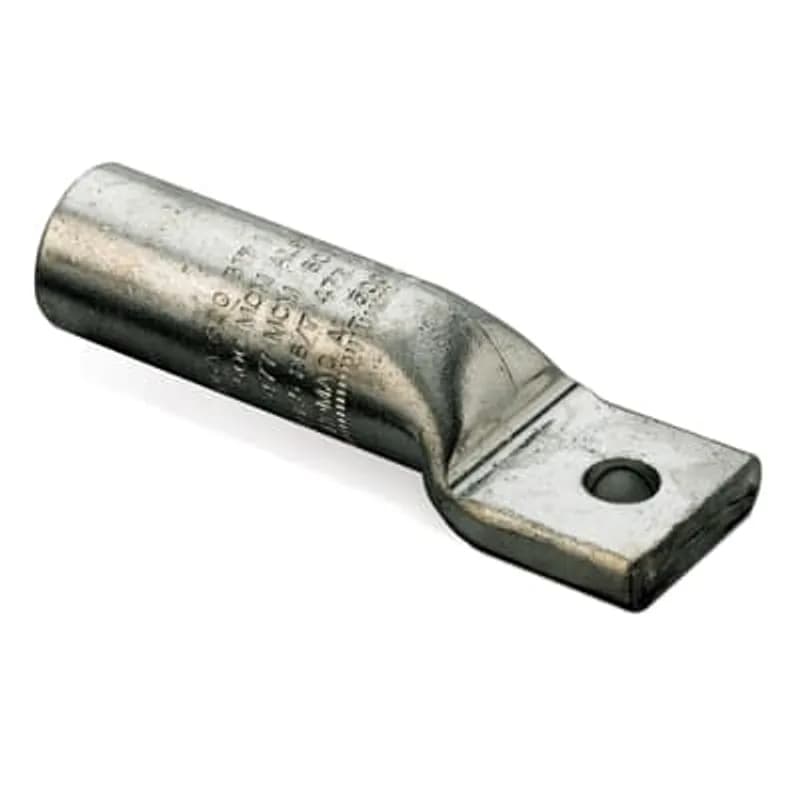

ABB - Installation Products AL 1000-58 MS - Tin Plated, Aluminum Compression Lug, 1000 kcmil, Aluminum and Copper, Bolt Hole Size 11/16 inch Diameter, One Hole NEMA Pad, Moisture Seal. Dies 161, 302, 292, 319, 1 3/4. Length 7-25/32. Pad 1-3/4 inch wide x 1-29/32 inch long x-21/32 inch thick. Barrel 4-11/16 inch Long x 1-27/32 inch Outside Diameter. Oxide Inhibitor. Brown Cap. MS is for Milled Sides.

ABB Installation Products AL 1000-58 MS Tin Plated, Aluminum Compression Lug, 1000 kcmil, Aluminum and Copper, Bolt Hole Size…

UPC: 783786474295


Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB AL 1000-58 MS is a tin-plated aluminum compression lug designed for reliable electrical connections. This lug is engineered to accommodate 1000 kcmil conductors, suitable for both aluminum and copper applications. It features a single bolt hole with a 11/16 inch diameter, conforming to a NEMA pad configuration. The 'MS' designation indicates milled sides for enhanced surface contact. This lug includes a moisture seal to protect the connection from environmental ingress. It is supplied with a brown cap and an oxide inhibitor to ensure long-term performance and prevent corrosion. The dimensions are precisely specified for integration into electrical systems: a pad measuring 1-3/4 inch wide by 1-29/32 inch long and 0.656 inch (21/32 inch) thick, and a barrel that is 4-11/16 inches long with an outside diameter of 1-27/32 inches. The AL 1000-58 MS is compatible with dies 161, 302, 292, 319, and 1 3/4, offering flexibility in tooling. This component from ABB Installation Products is built for robust electrical infrastructure where dependable termination is critical. Its construction and features are geared towards minimizing resistance and maximizing the lifespan of electrical connections.
  • Tin-plated aluminum construction for corrosion resistance
  • Accommodates 1000 kcmil aluminum and copper conductors
  • 11/16 inch diameter bolt hole with NEMA pad
  • Moisture seal for environmental protection
  • Includes oxide inhibitor and brown cap for optimal performance

Specifications

Application
General purpose lugs for Aluminum and Copper terminations
Color
Brown
Connection
Compression
Connection Type
Compression
Finish
Tin Plated
Housing Material
Aluminum
Housing Material
Aluminium
Insulation
None
Material
Aluminum and Copper
Mounting Type
Bolt Hole
Nema Rating
One Hole NEMA Pad
Size
7-15/16 inch long x 2-7/16 inch wide
Size
1000 kcmil
Special Features
Dual Rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die Reference. Meet or Exceed ANSI C119.4 Specifications
Standard
ANSI C119.4
Type
Compression Lug One Hole
Wire Size
1000 kcmil
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.2500 L
Package Weight (Metric)
0.5670 kg
Aluminum Two-Hole NEMA Lug - straight lug, 1000 kcmil Compact AL-CU, installing dies 140H, 301, 342, 1 1/2. Length 8-9/16 inch, Pad Width 1-3/4 inch x 3-41/64 inch long x 35/64 inch Thick. Holes on 1-3/4 inch Center to Center Spacing. Bore 3-13/16 inch Deep. Oxide Inhibitor, Brown Cap.

AL 1000 NCP

Aluminum Two-Hole NEMA Lug - straight lug, 1000 kcmil Compact AL-CU, installing dies 140H, 301, 342, 1 1/2. Length 8-9/16 inch, Pad Width 1-3/4 inch x 3-41/64 inch long x 35/64 inch Thick. Holes on 1-3/4 inch Center to Center Spacing. Bore 3-13/16 inch Deep. Oxide Inhibitor, Brown Cap.
StrongHold Quick Splice, 12 - 10 to 18 - 14 AWG (4 to 0.75-1.5mm2)

EQSP10-18D-Q

StrongHold Quick Splice, 12 - 10 to 18 - 14 AWG (4 to 0.75-1.5mm2)
The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IPLMD350-6

The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
Aluminum Two-Hole NEMA Lugs - Straight Lug, 600 kcmil AL-CU and 550 kcmil and ACSR 477 (26/7) and 556.5 (18/1), Installing Dies 1 5/16, 115H, 786, 936, 473. Length 20 inch. Pad 1-3/4 inch wide x 3-5/8 inch long x 1/2 inch thick. (2) 9/16 inch Diameter holes on 1-3/4 inch centers. Barrel 15-3/16 inch x 1-7/16 inch Outside Diameter. Oxide Inhibitor, Black Cap. Includes Heat Shrink.

AL 600 N 20 HS

Aluminum Two-Hole NEMA Lugs - Straight Lug, 600 kcmil AL-CU and 550 kcmil and ACSR 477 (26/7) and 556.5 (18/1), Installing Dies 1 5/16, 115H, 786, 936, 473. Length 20 inch. Pad 1-3/4 inch wide x 3-5/8 inch long x 1/2 inch thick. (2) 9/16 inch Diameter holes on 1-3/4 inch centers. Barrel 15-3/16 inch x 1-7/16 inch Outside Diameter. Oxide Inhibitor, Black Cap. Includes Heat Shrink.
Aluminum Two-Hole NEMA Lugs - straight lug, 477-500 kcmil and 500-600 Compact AL-CU and ACSR 397.5 (26/7) and 477 (18/1), installing dies 106A, 300, 317, 1 5/16, 14A, 15A. Length 20 inch. Pad 1-3/4 inch wide x 3-9/16 inch long x 29/64 inch thick. Barrel 15-5/8 inch long x 1-5/16 inch Outside Diameter. (2) 9/16 inch diameter holes on 1-3/4 inch centers. Oxide Inhibitor. Piink Cap. Includes Heat Shrink.

AL 500 N 20 HS

Aluminum Two-Hole NEMA Lugs - straight lug, 477-500 kcmil and 500-600 Compact AL-CU and ACSR 397.5 (26/7) and 477 (18/1), installing dies 106A, 300, 317, 1 5/16, 14A, 15A. Length 20 inch. Pad 1-3/4 inch wide x 3-9/16 inch long x 29/64 inch thick. Barrel 15-5/8 inch long x 1-5/16 inch Outside Diameter. (2) 9/16 inch diameter holes on 1-3/4 inch centers. Oxide Inhibitor. Piink Cap. Includes Heat Shrink.
Aluminum Two-Hole NEMA Lugs - straight lug, 700-750 kcmil AL-CU or 636 (26/7) ACSR, installing dies 140H, 301, 342, 1 1/2. Length 20 inch. Pad 1-3/4 inch wide x 3-3/4 inch long x 37/64 inch Minimum thick. Barrel 15-1/16 inch long x 1-19/32 inch Outside Diameter. (2) 9/16 inch Diameter Holes on 1-3/4 inch center. Oxide Inhibitor. Yellow Cap. Heat Shrink.

AL 750 N 20 HS

Aluminum Two-Hole NEMA Lugs - straight lug, 700-750 kcmil AL-CU or 636 (26/7) ACSR, installing dies 140H, 301, 342, 1 1/2. Length 20 inch. Pad 1-3/4 inch wide x 3-3/4 inch long x 37/64 inch Minimum thick. Barrel 15-1/16 inch long x 1-19/32 inch Outside Diameter. (2) 9/16 inch Diameter Holes on 1-3/4 inch center. Oxide Inhibitor. Yellow Cap. Heat Shrink.
Tin Plated Aluminum Two-Hole NEMA Lugs. Wire Range 2/0 Stranded - Compact. Installing dies TX, 76, 249, 840, 845, 11A. Length 5-3/4 inch. Pad 1-1/4 inch wide x 3-1/8 inch long x 1/4 inch thick. (2) 9/16 inch Diameter holes on 1-3/4 inch center. Barrel 2-1/4 inch. Oxide Inhibitor. Olive Cap. Dual Rated for Aluminum and Copper Conductors

SAK 2/0 NTN V1

Tin Plated Aluminum Two-Hole NEMA Lugs. Wire Range 2/0 Stranded - Compact. Installing dies TX, 76, 249, 840, 845, 11A. Length 5-3/4 inch. Pad 1-1/4 inch wide x 3-1/8 inch long x 1/4 inch thick. (2) 9/16 inch Diameter holes on 1-3/4 inch center. Barrel 2-1/4 inch. Oxide Inhibitor. Olive Cap. Dual Rated for Aluminum and Copper Conductors
Tin Plated Aluminum Two-Hole NEMA Lugs. Wire Range 40/ Stranded - Compact, 250 kmil Compressed - Compact. Installing dies TX, 76, 249, 840 - 845, 11A. Length 5-3/4 inch. Pad 1-1/4 inch wide x 3-1/8 inch long x 1/4 inch thick. (2) 9/16 inch Diameter holes on 1-3/4 inch center. Barrel 2-1/4 inch. Oxide Inhibitor. Pink Cap. Dual Rated for Aluminum and Copper Conductors

SAK 4/0 NTN V1

Tin Plated Aluminum Two-Hole NEMA Lugs. Wire Range 40/ Stranded - Compact, 250 kmil Compressed - Compact. Installing dies TX, 76, 249, 840 - 845, 11A. Length 5-3/4 inch. Pad 1-1/4 inch wide x 3-1/8 inch long x 1/4 inch thick. (2) 9/16 inch Diameter holes on 1-3/4 inch center. Barrel 2-1/4 inch. Oxide Inhibitor. Pink Cap. Dual Rated for Aluminum and Copper Conductors

Frequently Asked Questions

What conductor sizes does the AL 1000-58 MS lug support?

The AL 1000-58 MS lug is designed to accommodate 1000 kcmil conductors, suitable for both aluminum and copper.

What is the bolt hole size for this ABB compression lug?

The bolt hole size for the AL 1000-58 MS lug is 11/16 inch in diameter, featuring a one-hole NEMA pad.

What does the 'MS' designation mean on the AL 1000-58 MS?

The 'MS' in AL 1000-58 MS signifies 'Milled Sides', indicating enhanced surface contact for improved electrical connection.

What is the purpose of the moisture seal on this lug?

The moisture seal on the AL 1000-58 MS lug is designed to protect the electrical connection from environmental ingress and moisture.

Which crimping dies are compatible with the AL 1000-58 MS lug?

The AL 1000-58 MS lug is compatible with dies 161, 302, 292, 319, and 1 3/4.
