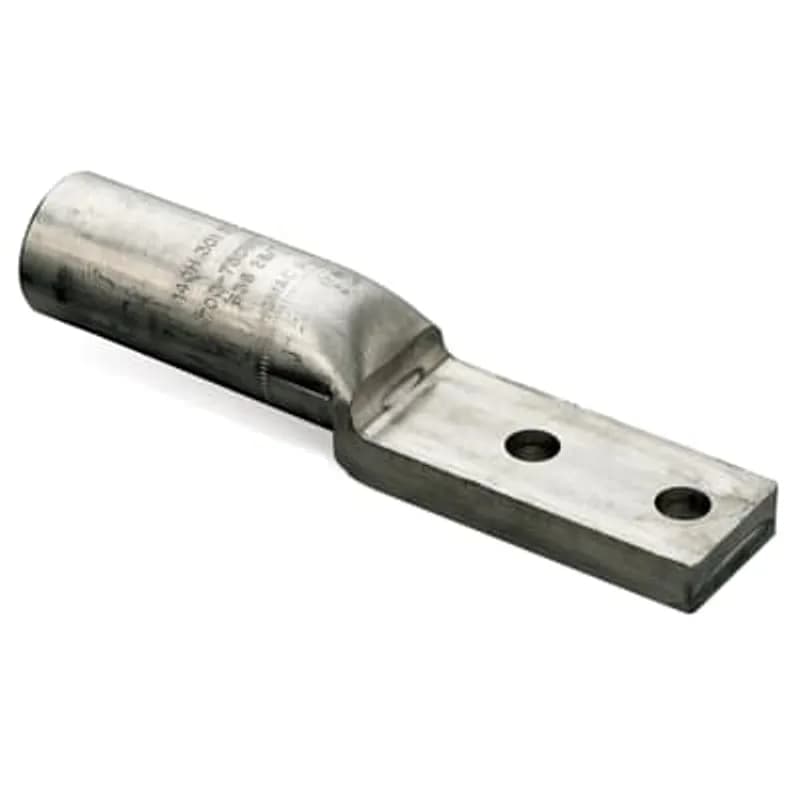

ABB - Installation Products AL 1000 NTN - Aluminum Tin-Plated Two-Hole NEMA Lugs - straight lug, concentric 1000 kcmil AL9CU, 954 kcmil, ACSR 795 (26/7, 30/19) and 954 (45/7), installing dies 161, 292, 302, 319, 1 3/4. Length 9-11/16 inch. Pad 2-39/64 inch wide x 3-5/8 inch long x 39/64 inch thick. (2) 9/16 inch Diameter Holes on 1-3/4 inch Centers. Barrel 1-27/32 inch Diameter, Bore 4-5/8 inch Deep x 1-13/64 inch inside Diameter.
ABB - Installation Products

AL 1000 NTN

UPC: 783786693108

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Overview

The ABB AL 1000 NTN is a high-capacity, tin-plated aluminum two-hole lug designed for reliable electrical connections in demanding industrial applications. Engineered by ABB Installation Products, this NEMA lug (SKU: AL 1000 NTN) is specifically manufactured to accommodate large conductor sizes, including 1000 kcmil AL9CU, 954 kcmil, and various ACSR configurations such as 795 (26/7, 30/19) and 954 (45/7). Its robust construction ensures secure and lasting terminations. This lug features a straight lug design with a substantial barrel measuring 1-27/32 inches in diameter and an impressive bore depth of 4-5/8 inches, with an internal diameter of 1-13/64 inches. This deep bore facilitates full conductor insertion for maximum contact area and conductivity. The pad dimensions are generous, measuring 2-39/64 inches wide by 3-5/8 inches long, with a thickness of 39/64 inches, providing a stable mounting surface. For secure fastening, the lug is equipped with two 9/16 inch diameter holes spaced precisely on 1-3/4 inch centers, compatible with standard NEMA mounting patterns. The tin plating on the aluminum body offers excellent corrosion resistance and conductivity, ensuring performance in various environmental conditions. Installation is facilitated by compatibility with specific crimping dies, including sizes 161, 292, 302, 319, and 1 3/4. The overall length of the lug is 9-11/16 inches, allowing for adequate space in terminal blocks and enclosures. The AL 1000 NTN is an essential component for power distribution, substations, and heavy industrial electrical systems requiring dependable connections for large aluminum conductors. Its NEMA lug designation signifies adherence to established industry standards for electrical connectors.
  • Tin-plated aluminum construction for corrosion resistance and conductivity
  • Designed for 1000 kcmil AL9CU, 954 kcmil, and ACSR conductors
  • Two-hole NEMA lug with 9/16 inch diameter holes on 1-3/4 inch centers
  • Deep barrel bore (4-5/8 inch deep x 1-13/64 inch ID) for secure conductor termination
  • Compatible with installing dies 161, 292, 302, 319, and 1 3/4

Specifications

Application
General purpose lugs for Aluminum and Copper terminations
Connection
Compression
Finish
Tin Plated
Housing Material
Aluminum
Housing Material
Aluminium
Size
Length 8-9/16 inches
Special Features
Dual-rated. Use with Aluminum and Copper conductors. Prefilled with oxide inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die reference for easy identification
Standard
ANSI C119.4
Type
Compression Lug Two Hole
Wire Size
1000 kcmil
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.4900 L
Package Weight (Metric)
0.6760 kg
Heat Shrink Ring Terminal 12 10 AWG, 3/8" stud size.

PH10-38R-E

Heat Shrink Ring Terminal 12 10 AWG, 3/8" stud size.
The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IPLMD350-6

The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
The ABB Installation Products 54965BE10PH is a premium industrial component designed for robust and efficient electrical installations. Engineered to meet stringent industry standards, this product ensures reliable performance in demanding environments. Its durable construction and precise engineering make it ideal for a wide range of industrial applications, including power distribution, automation, and control systems. Trusted by professionals worldwide, ABB's commitment to quality and innovation is evident in this product, delivering dependable solutions for your electrical needs.

54965BE10PH

The ABB Installation Products 54965BE10PH is a premium industrial component designed for robust and efficient electrical installations. Engineered to meet stringent industry standards, this product ensures reliable performance in demanding environments. Its durable construction and precise engineering make it ideal for a wide range of industrial applications, including power distribution, automation, and control systems. Trusted by professionals worldwide, ABB's commitment to quality and innovation is evident in this product, delivering dependable solutions for your electrical needs.
Rectangular Connector Housings, Wire-to-Board / Wire-to-Wire / Wire-to-Panel, 25 Position, .2 in [5.08 mm] Centerline, 5 Row, Polyester, AMP Metrimate

211150-1

Rectangular Connector Housings, Wire-to-Board / Wire-to-Wire / Wire-to-Panel, 25 Position, .2 in [5.08 mm] Centerline, 5 Row, Polyester, AMP Metrimate

Frequently Asked Questions

What conductor sizes does the AL 1000 NTN lug support?

The AL 1000 NTN lug supports 1000 kcmil AL9CU, 954 kcmil, and ACSR conductors including 795 (26/7, 30/19) and 954 (45/7).

What are the dimensions of the AL 1000 NTN lug pad?

The pad of the AL 1000 NTN lug measures 2-39/64 inches wide by 3-5/8 inches long and is 39/64 inches thick.

What is the bore depth and inside diameter of the AL 1000 NTN lug barrel?

The barrel of the AL 1000 NTN lug has a bore depth of 4-5/8 inches and an inside diameter of 1-13/64 inches.

What are the hole sizes and spacing on the AL 1000 NTN lug?

The AL 1000 NTN lug features two 9/16 inch diameter holes spaced on 1-3/4 inch centers.

Which crimping dies are compatible with the AL 1000 NTN lug?

The AL 1000 NTN lug is compatible with installing dies 161, 292, 302, 319, and 1 3/4.
