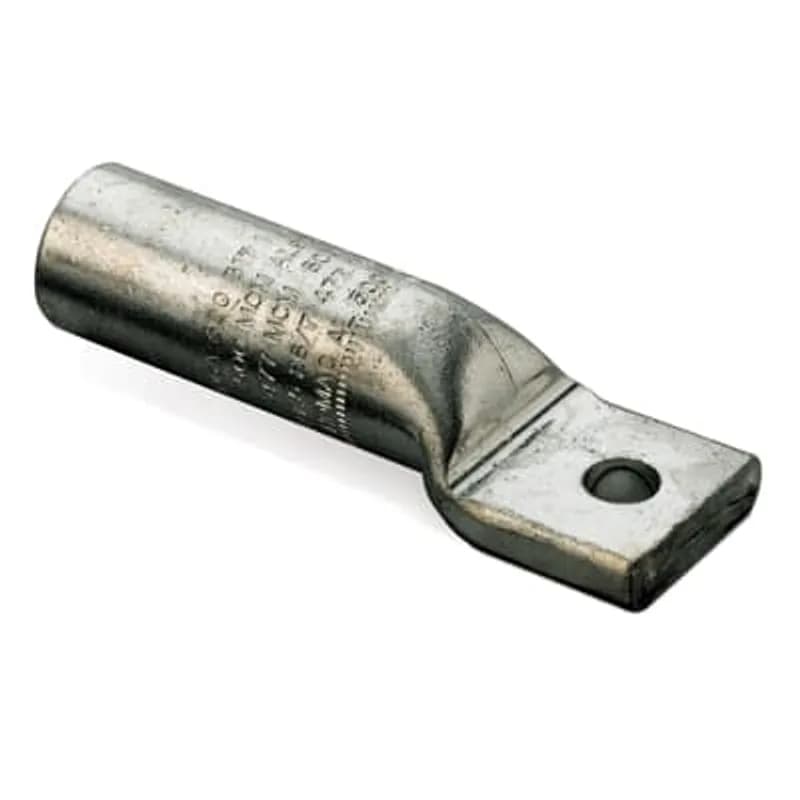

ABB - Installation Products AL 1/0-38 TN - Tin-Plated Aluminum Compression Lug for Aluminum and Copper Terminations, One-Hole NEMA Pad, 1/0 Stranded AL9CU, 3/8 inch Bolt Hole, 3-1/8 inch long, Pad 7/8 inch wide x 1-5/16 inch long. Barrel Bore 1-5/16 inch Depth. Dies TU, 52, BG, 243, 5/8. Oxide Inhibitor. Tan Cap.
ABB - Installation Products

AL 1/0-38 TN

UPC: 783786693207

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

The ABB AL 1/0-38 TN is a tin-plated aluminum compression lug engineered for secure and reliable terminations of both aluminum and copper conductors in electrical applications. Designed with a one-hole NEMA standard pad, it features a 3/8 inch bolt hole, ensuring compatibility with standard mounting hardware and facilitating easy installation. Constructed from AL9CU aluminum alloy, this lug is specifically rated for 1/0 stranded aluminum conductors, providing a durable and efficient termination solution. The lug measures 3-1/8 inches in overall length, with a pad width of 7/8 inch and a pad length of 1-5/16 inches, offering a stable mounting surface for secure connections. The barrel bore has a depth of 1-5/16 inches, providing ample space for proper conductor insertion and effective crimping to ensure a tight, long-lasting connection. Included with the AL 1/0-38 TN is an oxide inhibitor, which prevents corrosion and maintains electrical integrity over time, particularly important when working with aluminum conductors. The tan cap serves as a visual indicator of the required die sizes for proper installation, which include TU, 52, BG, 243, and 5/8. This product is manufactured by ABB - Installation Products and is identified by the SKU AL 1/0-38 TN. Its UNSPSC code is 39121409, categorizing it within the electrical connectors and terminals segment.
  • Tin-plated aluminum construction for aluminum and copper terminations
  • One-hole NEMA pad with 3/8 inch bolt hole
  • Suitable for 1/0 stranded AL9CU aluminum conductors
  • Includes oxide inhibitor for enhanced durability
  • Tan cap indicates required die sizes: TU, 52, BG, 243, 5/8

Specifications

Application
General purpose lugs for Aluminum and Copper terminations
Color
Tan
Connection
Compression
Connection Type
Compression Lug
Finish
Tin Plated
Housing Material
Aluminum
Housing Material
Aluminium
Insulation
None
Material
Aluminum
Mounting
Bolt-on
Mounting Type
NEMA Pad
Nema Rating
One-Hole NEMA Pad
Series
AL
Size
1-3/8 inch long x 7/8 inch wide
Size
1/0 Stranded AL9CU
Special Features
Dual Rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die Reference. Meet or Exceed ANSI C119.4 Specifications
Standard
ANSI C119.4
Temperature Rating, Maximum
194 F
Temperature Rating, Maximum
90 C
Temperature Rating, Minimum
194 F
Temperature Rating, Minimum
90 C
Type
Compression Lug One Hole
Wire Size
1/0 STR AWG
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.0600 L
Package Weight (Metric)
0.0270 kg
