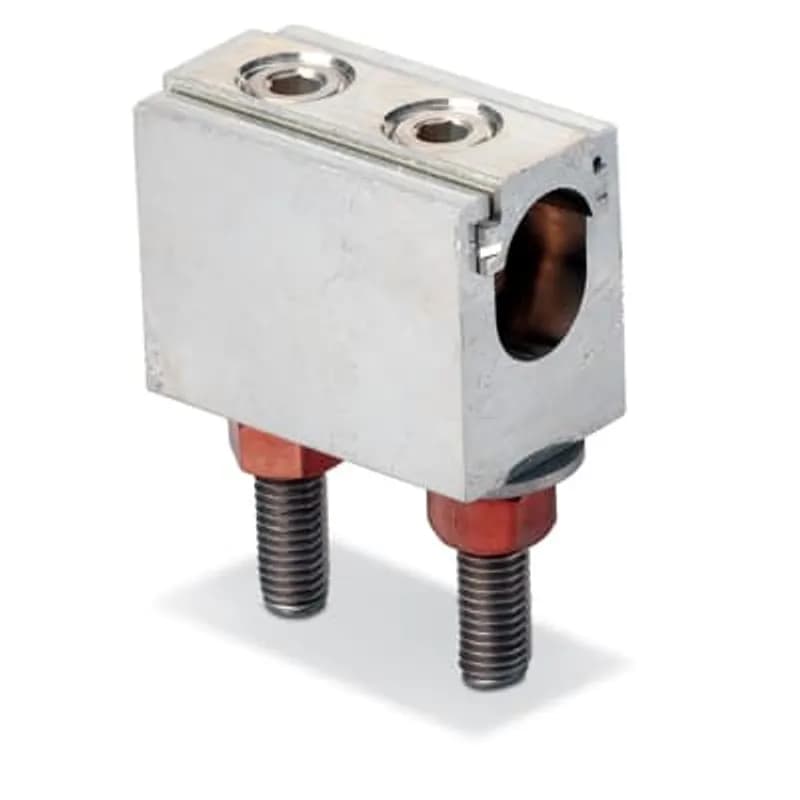

Overview
- Tin-plated aluminum construction for conductivity and corrosion resistance
- Lay-in design for simplified installation
- Suitable for cable sizes ranging from 2 to 600 kcmil
- Single outlet configuration
- ABB - Installation Products manufacturer
Specifications
Application | Lay-In Transformer Spade Connector |
Conductor Range | #2 to 600 kcmil |
Connection | Mechanical |
Finish | Tin Plated |
Height | body in |
Insulation | False |
Material | Aluminum |
Number Of Conductors | 1 |
Size | Body is 2.750 inch long, 1.642 inch wide, 2.108 inch high |
Special Features | The Slide-out Keeper Minimizes the hassle and hazards of forcing cables into closed ports. Require only a cable stripper and Allen hex wrench - no crimping tools or dies or other special tools needed for installation. Transformer changes require only the connector to be unbolted from the spade - no need to disconnect all the conductors, as with compression systems. Dual rated to use with Aluminum or Copper. Double Set Screws maximize contact area and mechanical characteristics. Ball-bottom screws ensure even force distribution in the cable/connector interface |
Type | Quick-Disconnect Transformer Connector |
Width | 1.642 in |
Width | 41.7068 mm |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0900 L |
Package Weight (Metric) | 0.4940 kg |
