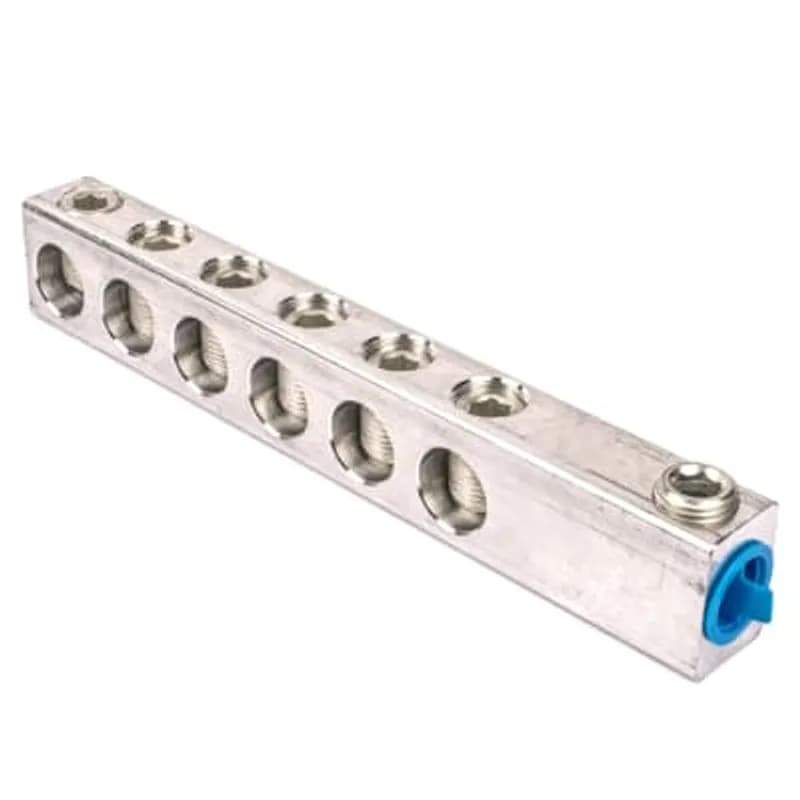

ABB - Installation Products ABW5350SLCW/SB11(CL) - Aluminum Transformer Connector, #12 - 350 kcmil, Aluminum and Copper, Stud Size 5/8 inch, Five Conductor, Length 7-37/64 x 1-1/4 x 7/8 inch. Oxide Inhibitor. Includes Boot SB 11 (CLEAR)
ABB - Installation Products

ABW5350SLCW/SB11(CL)

UPC: 075114231015

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Overview

The ABB ABW5350SLCW/SB11(CL) is a five-conductor aluminum transformer connector designed for reliable electrical connections. Manufactured by ABB - Installation Products, this connector is engineered to accommodate a wide range of wire sizes, from #12 AWG to 350 kcmil, making it versatile for various transformer applications. It supports connections for both aluminum and copper conductors, offering flexibility in material selection. The connector features a substantial 5/8 inch stud size, ensuring a secure and robust connection point. Its physical dimensions are precisely 7-37/64 inches in length, 1-1/4 inches in width, and 7/8 inches in height, allowing for efficient use of space within electrical enclosures. Key features include an integrated oxide inhibitor, crucial for maintaining conductivity and preventing corrosion on aluminum conductors over time. This is essential for the longevity and performance of transformer connections. The connector also comes supplied with a clear SB 11 boot, providing additional insulation and protection to the connection points. The UNSPSC code for this product is 39121443. This connector is a practical solution for electrical distribution and power systems where secure and durable connections are paramount. Its robust construction and included protective boot contribute to a safe and efficient electrical infrastructure.
  • Accommodates #12 - 350 kcmil conductors
  • Suitable for Aluminum and Copper conductors
  • Features a 5/8 inch stud size
  • Five-conductor configuration
  • Includes oxide inhibitor and clear SB 11 boot

Specifications

Application
Stud Mount Transformer Connector
Conductor Range
#12 to 350 kcmil
Connection
Mechanical
Finish
Bare
Insulation
PVC Boot
Material
Aluminum
Number Of Conductors
5
Size
7-37/64 x 1-1/4 x 7/8 in
Special Features
In-Line Bar Series. Dual Rated for Aluminum and Copper Conductors. High Strength Aluminum Alloy maintains constant bolting pressure on Conductors. Quick Disconnectability for easy removal from transformer secondary studs. Ball-bottom screws ensure maximum conductor contact pressure and break up interstrand oxides
Standard
ANSI C119.4
Type
Transformer Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.2300 L
Package Weight (Metric)
0.5580 kg
