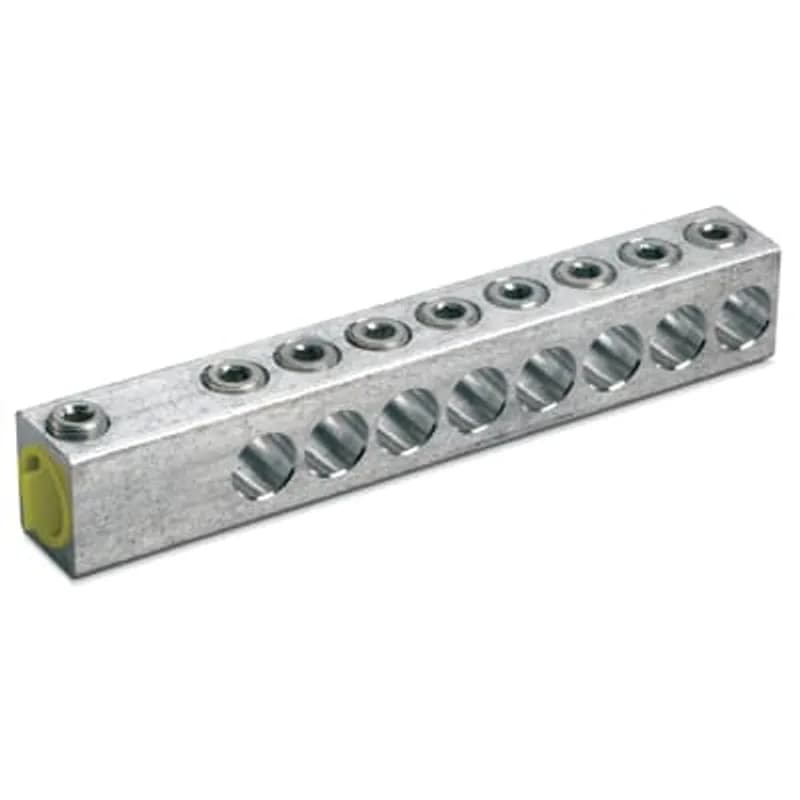

ABB - Installation Products ABW 8750 - Set Screw Bar Aluminum Transformer Connector, 1/0 - 750 kcmil, Aluminum and Copper, Stud Size 1 inch, Eight Conductor, Quick Disconnect

ABB Installation Products ABW 8750 Set Screw Bar Aluminum Transformer Connector, 1/0 - 750 kcmil, Aluminum and Copper, Stud…

UPC: 075114112376

Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB ABW 8750 is a Set Screw Bar Aluminum Transformer Connector designed for reliable electrical connections. This connector is engineered to accommodate conductor sizes ranging from 1/0 to 750 kcmil, making it suitable for a broad spectrum of power distribution applications. It is compatible with both aluminum and copper conductors, offering versatility in installation. The connector features a 1-inch stud size, ensuring a secure and robust connection point. With eight conductor positions, this connector facilitates efficient and organized wiring configurations in transformer applications. The quick disconnect feature simplifies installation and maintenance procedures, reducing downtime. Manufactured by ABB - Installation Products, the ABW 8750 (SKU: ABW 8750) is a practical solution for electrical infrastructure projects requiring dependable conductor termination. Its design prioritizes functionality and ease of use in industrial settings. This connector is part of the 39121443 UNSPSC category, indicating its role in electrical power distribution and transmission equipment. The ABB ABW 8750 provides a direct and effective method for joining conductors to transformer terminals.
  • Accommodates 1/0 - 750 kcmil conductor sizes
  • Suitable for both Aluminum and Copper conductors
  • Features a 1-inch stud size for secure mounting
  • Designed for eight conductor connections
  • Includes quick disconnect functionality for ease of use

Specifications

Application
Stud Mount Transformer Connector
Conductor Range
1/0 to 750 kcmil
Connection
Mechanical
Connection Type
Set Screw and Quick Disconnect
Insulation
False
Material
Aluminum and Copper
Material
Aluminum
Number of Conductors
8
Poles
Eight Conductor
Series
ABW 8750
Size
1/0 - 750 kcmil
Special Features
In-Line Bar Series. Dual Rated for Aluminum and Copper Conductors. High Strength Aluminum Alloy maintains constant bolting pressure on Conductors. Quick Disconnectability for easy removal from transformer secondary studs. Ball-bottom screws ensure maximum conductor contact pressure and break up interstrand oxides
Standard
ANSI C119.4
Type
Quick-Disconnect Transformer Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
2.1300 L
Package Weight (Metric)
0.9660 kg
Keebar Aluminum Transformer Connector, 1/0 - 750 kcmil, Aluminum and Copper, Bolt 1/2 inch, Twelve Conductor, with Oxide Inhibitor, length 10.000 inches

ZBK 6067 C

Keebar Aluminum Transformer Connector, 1/0 - 750 kcmil, Aluminum and Copper, Bolt 1/2 inch, Twelve Conductor, with Oxide Inhibitor, length 10.000 inches
Quick Disconnect Transformer, 6 Positions, Compound, 12-350 MCM With Cover

LRT 6350 S1

Quick Disconnect Transformer, 6 Positions, Compound, 12-350 MCM With Cover
Aluminum Transformer Connector, Stud Size 1-1/2 inch, Eight Tower, Water Tight, Clamp on, with Rockets

FTH 44-175-15 AWR

Aluminum Transformer Connector, Stud Size 1-1/2 inch, Eight Tower, Water Tight, Clamp on, with Rockets
Aluminum Transformer Connector, #6 - 500 kcmil, Aluminum and Copper, Bolt size 1/2 inch, Two Conductor

ABT 2500 C

Aluminum Transformer Connector, #6 - 500 kcmil, Aluminum and Copper, Bolt size 1/2 inch, Two Conductor
Copper Transformer Bushing Connector, 2 inch x 1.250 inch x .75 inch thick. Has (2) .453 Thru 1/2-20 UNF-2B Thru from Top and on Side has (1) .625 inch Diameter Thru Holes and (1) .687 inch modified Thru Hole ( Modified with .531 Thru 5.8-11 UNC-2B and .313 Thru 3/8-16 UNC-2B Thru).

TFBC 5838-4/0

Copper Transformer Bushing Connector, 2 inch x 1.250 inch x .75 inch thick. Has (2) .453 Thru 1/2-20 UNF-2B Thru from Top and on Side has (1) .625 inch Diameter Thru Holes and (1) .687 inch modified Thru Hole ( Modified with .531 Thru 5.8-11 UNC-2B and .313 Thru 3/8-16 UNC-2B Thru).
Zeebar Aluminum Transformer Connector, #6 - 600 kcmil, Aluminum and Copper, Stud 5/8 inch and 1 inch, Eight Conductor. Option R - Right Hand Feed, 7.795 inches long, 2.187 inches wide, 2.844 inches high

Z 7129-5 R

Zeebar Aluminum Transformer Connector, #6 - 600 kcmil, Aluminum and Copper, Stud 5/8 inch and 1 inch, Eight Conductor. Option R - Right Hand Feed, 7.795 inches long, 2.187 inches wide, 2.844 inches high
Keebar Aluminum Transformer Connector, #6 - 500 kcmil, Aluminum and Copper, Stud 5/8 inch and 1 inch, Eight Connector, 6.781 inches long, 2.187 inches wide, 2.844 inches High. All Wire Holes to include Oxide Inhibitor

Z 6734

Keebar Aluminum Transformer Connector, #6 - 500 kcmil, Aluminum and Copper, Stud 5/8 inch and 1 inch, Eight Connector, 6.781 inches long, 2.187 inches wide, 2.844 inches High. All Wire Holes to include Oxide Inhibitor
Zeebar Aluminum Transformer Connector, #12 - 350 kcmil, Aluminum and Copper, Stud 1 inch, Eight Connector, Length 5-3/4 inch, Height 2-7/8 inch, with Oxide Inhibitor, Option SW - with Shrink Wrap

Z 5033-1 SLC-SW

Zeebar Aluminum Transformer Connector, #12 - 350 kcmil, Aluminum and Copper, Stud 1 inch, Eight Connector, Length 5-3/4 inch, Height 2-7/8 inch, with Oxide Inhibitor, Option SW - with Shrink Wrap
