ABB - Installation Products ABT 6750 - Aluminum Transformer Spade Connectors - ABT Double Set Screws Series, conductor range 1/0-750, length 8-1/4 in, mounting holes 10, outlets 6

ABB Installation Products ABT 6750 Aluminum Transformer Spade Connectors - ABT Double Set Screws Series, conductor range…

UPC: 783786689101

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 5

Multiplier: 5

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

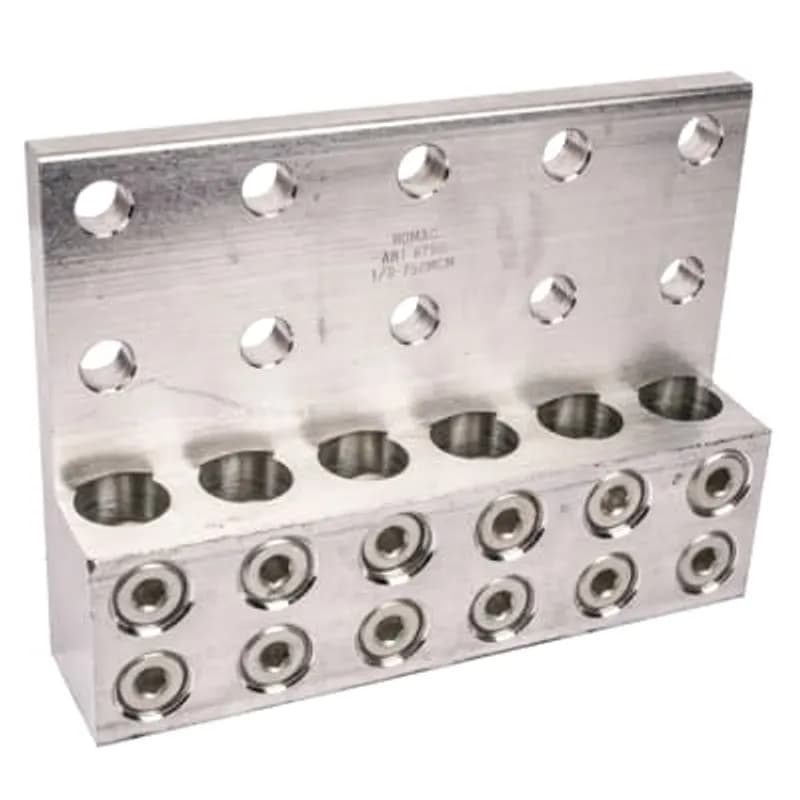

The ABB ABT 6750 Aluminum Transformer Spade Connector is engineered for reliable electrical connections in transformer applications. Manufactured by ABB - Installation Products, this connector, SKU ABT 6750, is part of the ABT Double Set Screws Series. It is designed to accommodate a conductor range from 1/0 to 750 kcmil, providing versatility for various transformer sizes and configurations. The connector measures 8-1/4 inches in length, offering sufficient space for secure termination. It features 10 mounting holes for robust and stable installation, ensuring it remains firmly in place under operational stress. With 6 outlets, this spade connector allows for multiple connections, facilitating complex transformer wiring setups. The double set screw design ensures a secure and lasting electrical contact, minimizing resistance and potential failure points. This connector is suitable for applications requiring dependable aluminum conductor terminations in transformer systems. Its construction and design focus on delivering a functional and durable connection for electrical infrastructure. UNSPSC Code: 39121443.
  • Manufacturer: ABB - Installation Products
  • Series: ABT Double Set Screws
  • Conductor Range: 1/0 - 750 kcmil
  • Length: 8-1/4 inches
  • Features 10 mounting holes and 6 outlets for versatile connections

Specifications

Application
Pad Mount Transformer Connector
Conductor Range
1/0 to 750 kcmil
Connection
Mechanical
Connection Type
Set Screws
Insulation
False
Material
Aluminum
Mounting Type
mounting holes 10
Number of Conductors
6
Series
ABT Double Set Screws Series
Size
conductor range 1/0-750, length 8-1/4 in
Special Features
Double Set-Screw Series. High Strength Aluminum Alloy maximizes electrical and Mechanical Performance. Ball-Bottom screws ensure Maximum Conductor Contact pressure and break up interstrand oxides. Dual rated to accept Copper or Aluminum conductors
Standard
ANSI C119.4
Type
Transformer Spade Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
4.4200 L
Package Weight (Metric)
2.0050 kg
EZ Keeper, Aluminum Transformer Stud Connector, 6 Conductor, 1/0-750 kcmil, Aluminum and Copper, (1/0 to 350 kcmil use 240 in-lb or 20 ft-lb) 400 to 750 kcmil use 360 in-lb or 30 ft-lb). Length 14 inches x 2 inch tall x 2-5/8 inch wide. 1-1/4 inch Stud Size. Three Holes tapped at 5/8-18 UNF-2B (Break-Thru) for Stud.

ABKW 6750-1.25 EZ

EZ Keeper, Aluminum Transformer Stud Connector, 6 Conductor, 1/0-750 kcmil, Aluminum and Copper, (1/0 to 350 kcmil use 240 in-lb or 20 ft-lb) 400 to 750 kcmil use 360 in-lb or 30 ft-lb). Length 14 inches x 2 inch tall x 2-5/8 inch wide. 1-1/4 inch Stud Size. Three Holes tapped at 5/8-18 UNF-2B (Break-Thru) for Stud.
Aluminum Transformer Spade Connectors - ABT Double Set Screws Series, conductor range #6-500, length 9-3/16 inches, mounting holes 12, outlets 8

ABT 8500 DS

Aluminum Transformer Spade Connectors - ABT Double Set Screws Series, conductor range #6-500, length 9-3/16 inches, mounting holes 12, outlets 8
Copper Tin-Plated Threaded Transformer Stud Adapter for NEMA pad-style connections - Six-hole transformer stud adapter, Silver Brazed Stud - Size 1-1/4-12 UNF-2B with 1.5 inch Outside Diameter. Pad 5.5 inch long x 4 inch wide x .25 inch thick. Two rows of 3 holes spaced 1.75 inch on center and .562 inch Diameter.

2042-6

Copper Tin-Plated Threaded Transformer Stud Adapter for NEMA pad-style connections - Six-hole transformer stud adapter, Silver Brazed Stud - Size 1-1/4-12 UNF-2B with 1.5 inch Outside Diameter. Pad 5.5 inch long x 4 inch wide x .25 inch thick. Two rows of 3 holes spaced 1.75 inch on center and .562 inch Diameter.
Aluminum Lay-In Transformer Spade Connectors - ZBK Series, conductor range 1/0-1000, mount holes 16, outlets 16, length 13.750 inches

ZBK 8081

Aluminum Lay-In Transformer Spade Connectors - ZBK Series, conductor range 1/0-1000, mount holes 16, outlets 16, length 13.750 inches
Aluminum Transformer Spade Connectors - ZBT Series - Double Row Mounting Holes, cable range 1/0-750, length 6-1/2 in, mounting holes 8 outlets 8, Two Set-Screws per Outlet.

ZBT 4047 DS

Aluminum Transformer Spade Connectors - ZBT Series - Double Row Mounting Holes, cable range 1/0-750, length 6-1/2 in, mounting holes 8 outlets 8, Two Set-Screws per Outlet.
Aluminum Transformer Spade Connectors - ZBT Series - Double Row Mounting Holes, cable range 1/0-750, mounting holes 8 outlets 8. 6-3/8 inch x 3-1/16 inch x 6-1/2 inch

ZBT 4047

Aluminum Transformer Spade Connectors - ZBT Series - Double Row Mounting Holes, cable range 1/0-750, mounting holes 8 outlets 8. 6-3/8 inch x 3-1/16 inch x 6-1/2 inch
Aluminum Transformer Spade Connectors - ABT Double Set Screws Series, conductor range 6-500, length 1-1/4 in, mounting holes 2, outlets 1

ABT 1500 DS

Aluminum Transformer Spade Connectors - ABT Double Set Screws Series, conductor range 6-500, length 1-1/4 in, mounting holes 2, outlets 1
Aluminum Transformer Spade Connectors - ZBT Series - Double Row Mounting Holes, cable range 1/0-750, length 8-1/4 inch, mounting holes 10 outlets 12. 6-3/8 inch x 3-1/16 inch x 8-1/4 inch

ZBT 6067

Aluminum Transformer Spade Connectors - ZBT Series - Double Row Mounting Holes, cable range 1/0-750, length 8-1/4 inch, mounting holes 10 outlets 12. 6-3/8 inch x 3-1/16 inch x 8-1/4 inch
