ABB - Installation Products ABT 6350 - Aluminum Transformer Spade Connectors - ABT Single Set Screws Series - Double-Row Mounting Holes, conductor range 12-350, length 6-1/2 in, mounting holes 8, outlets 6

ABB Installation Products ABT 6350 Aluminum Transformer Spade Connectors - ABT Single Set Screws Series - Double-Row…

UPC: 783786689002

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

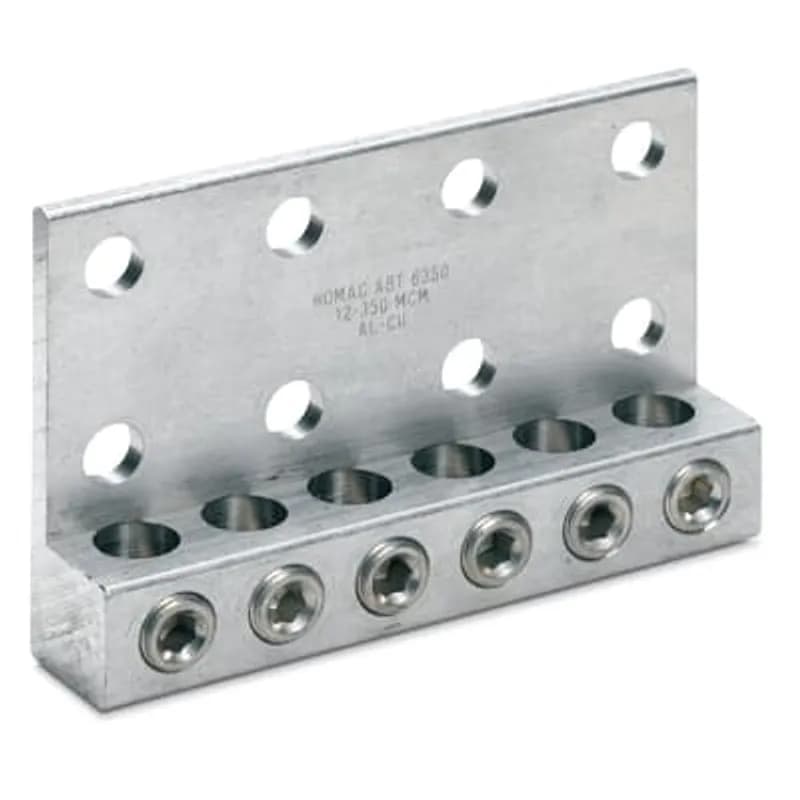

The ABB ABT 6350 Aluminum Transformer Spade Connector, part of the ABT Single Set Screws Series, is engineered for reliable electrical connections in transformer applications. This double-row connector accommodates a broad conductor range from 12 AWG to 350 kcmil, offering significant flexibility for various wiring needs. With a substantial length of 6-1/2 inches, it provides ample space for secure connections and ease of installation. The design features 8 mounting holes, facilitating robust and stable attachment to transformer terminals or busbars. Each connector unit provides 6 distinct outlets, allowing for efficient multi-point connections from a single terminal point. Constructed from aluminum, these spade connectors are suitable for transformer applications where aluminum conductors are utilized, ensuring compatibility and minimizing galvanic corrosion. The single set screw design simplifies the termination process, requiring only a standard tool for secure fastening. This product is ideal for electrical contractors, maintenance technicians, and OEMs involved in the assembly and servicing of power transformers and related electrical distribution equipment. Its robust construction and specific design features ensure dependable performance in demanding electrical environments.
  • Aluminum construction for transformer applications
  • Accommodates conductor range 12-350 kcmil
  • 6-1/2 inch length for ample connection space
  • Features 8 mounting holes for secure installation
  • Provides 6 outlets for multi-point connections

Specifications

Application
Pad Mount Transformer Connector
Conductor Range
#12 to 350 kcmil
Connection
Mechanical
Connection Type
Set Screw
Insulation
False
Material
Aluminum
Mounting Type
Double-Row Mounting Holes
Number of Conductors
6
Series
ABT Single Set Screws Series
Size
12-350 kcmil
Special Features
Single Set-Screw Series. High Strength Aluminum Alloy maximizes electrical and Mechanical Performance. Ball-Bottom screws ensure Maximum Conductor Contact pressure and break up interstrand oxides. Dual rated to accept Copper or Aluminum conductors
Standard
ANSI C119.4
Type
Transformer Spade Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
Aluminum Transformer Spade Connectors - ABT Double Set Screws Series - Double-Row Mounting Holes, conductor range 6-500, length 3 in, mounting holes 4, outlets 3

ABT 3500 DSC

Aluminum Transformer Spade Connectors - ABT Double Set Screws Series - Double-Row Mounting Holes, conductor range 6-500, length 3 in, mounting holes 4, outlets 3
Aluminum Transformer Connector, 1/0 - 750 kcmil, Aluminum and Copper, Bolt 1/2 inch, Eight Conductor

ABT 8750 CK

Aluminum Transformer Connector, 1/0 - 750 kcmil, Aluminum and Copper, Bolt 1/2 inch, Eight Conductor
Keebar Aluminum Transformer Connector, 1/0 - 750 kcmil, Aluminum and Copper, Bolt 1/2 inch, Twelve Conductor, with Oxide Inhibitor, length 10.000 inches

ZBK 6067 C

Keebar Aluminum Transformer Connector, 1/0 - 750 kcmil, Aluminum and Copper, Bolt 1/2 inch, Twelve Conductor, with Oxide Inhibitor, length 10.000 inches
Tin Plated Aluminum Connector Pad, 1.500 inch depth X 3.00 inch square, 4 holes - .562 inch Chamfer (.031 x 45 Degrees), comes with (4) Stainless Steel 1/2-11 x 4 inch Bolts, (8) Stainless Steel 1/2 inch Belleville Washers, (8) Stainless Steel 1/2 inch Flat Washers, (4) Silicon Bronze 1/2-13 Hex Nuts.

ABK-AD-4N-MH

Tin Plated Aluminum Connector Pad, 1.500 inch depth X 3.00 inch square, 4 holes - .562 inch Chamfer (.031 x 45 Degrees), comes with (4) Stainless Steel 1/2-11 x 4 inch Bolts, (8) Stainless Steel 1/2 inch Belleville Washers, (8) Stainless Steel 1/2 inch Flat Washers, (4) Silicon Bronze 1/2-13 Hex Nuts.
Aluminum Transformer Connector with Clear PVC Boot. 1.625 inch high x 1.375 inch wide x 6.75 inch long. Boot is 8.00 inch long. #12 to 350 kcmil. Insulated. 4 Outlets. SL - Street Light. Stud Size - works with both 5/8 and 1 inch.

EZC 4350 SL

Aluminum Transformer Connector with Clear PVC Boot. 1.625 inch high x 1.375 inch wide x 6.75 inch long. Boot is 8.00 inch long. #12 to 350 kcmil. Insulated. 4 Outlets. SL - Street Light. Stud Size - works with both 5/8 and 1 inch.
Aluminum Cross Range Tap Connector, Main 1000 kcmil - 397.5 kcmil SAC, 954 (54/7) - 336.4 (26/7) ACSR. Tap 250 kcmil - 2 Solid AWG, 159 (12/7) - 4(7/1) ACSR. Conductors may be Parallel or Perpendicular. Height 2-3/4 inch minimum to 3-1/2 inch maximum. 3-3/8 inch Square. Includes (2) Aluminum Hex Bolts 1/2-13 x 4 inch Full Threaded and (2) 1/2 inch Aluminum Lock Washer. Two Corners without bolts are notched.

ACF-100-2

Aluminum Cross Range Tap Connector, Main 1000 kcmil - 397.5 kcmil SAC, 954 (54/7) - 336.4 (26/7) ACSR. Tap 250 kcmil - 2 Solid AWG, 159 (12/7) - 4(7/1) ACSR. Conductors may be Parallel or Perpendicular. Height 2-3/4 inch minimum to 3-1/2 inch maximum. 3-3/8 inch Square. Includes (2) Aluminum Hex Bolts 1/2-13 x 4 inch Full Threaded and (2) 1/2 inch Aluminum Lock Washer. Two Corners without bolts are notched.
Tin Plated Aluminum Transformer Spade Adapter, Bolt Size 1/2 inch, Eight Hole Pad, .562 inch Diameter holes. Two Rows of 4 Holes. 1.75 inch centers. 7 inch x 4 inch x .75 inch thick. NEMA Pad - First Hole Center at .825 inch.

TSC 8 TN

Tin Plated Aluminum Transformer Spade Adapter, Bolt Size 1/2 inch, Eight Hole Pad, .562 inch Diameter holes. Two Rows of 4 Holes. 1.75 inch centers. 7 inch x 4 inch x .75 inch thick. NEMA Pad - First Hole Center at .825 inch.
Aluminum Insulated Transformer Connection Kit. 2 Insulated, 1 Bare Bar, #12-350, Aluminum and Copper, 6 Conductors plus 1 Streetlight. Eight 3/8 inch Diameter Holes, Six 7/8 inch and One 7/16 Half-Moon Cuts in Boot.

CSW 6350 SLCK
